Soil Moisture Sensor Interfacing with Arduino UNO

Overview of Soil Moisture


Soil Moisture Sensor
Soil Moisture Sensor

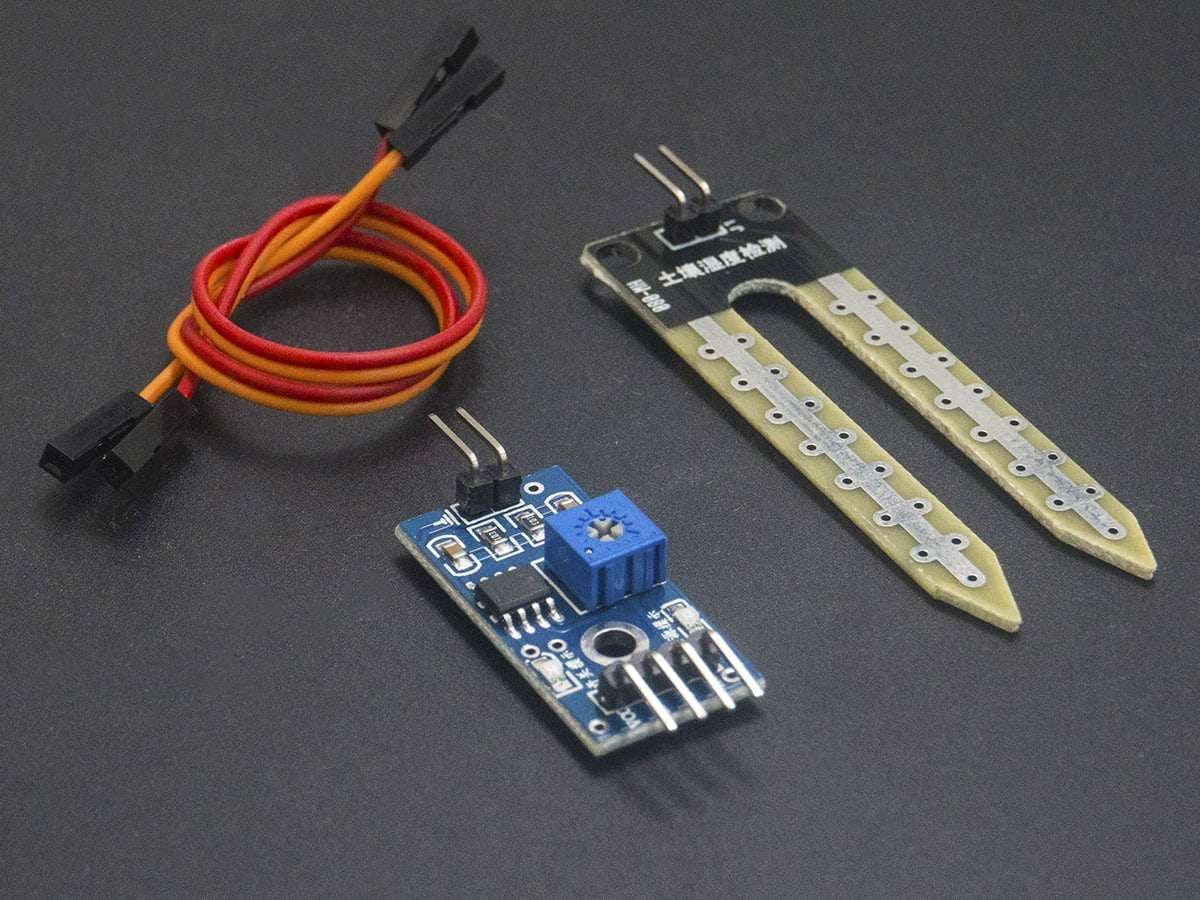

Soil moisture is basically the content of water present in the soil. This can be measured using a soil moisture sensor which consists of two conducting probes that act as a probe. It can measure the moisture content in the soil based on the change in resistance between the two conducting plates.

The resistance between the two conducting plates varies in an inverse manner with the amount of moisture present in the soil.

For more information about soil moisture sensor and how to use it, refer the topic Soil Moisture Sensor in the sensors and modules section.


Connection Diagram of Soil Moisture with Arduino

Interfacing Soil Moisture Sensor With Arduino UNO
Interfacing Soil Moisture Sensor With Arduino UNO




Measure soil moisture using Arduino Uno

Here, the analog output of soil moisture sensor is processed using ADC. The moisture content in terms of percentage is displayed on the serial monitor.

The output of the soil moisture sensor changes in the range of ADC value from 0 to 1023.

This can be represented as moisture value in terms of percentage using formula given below.

Analog Output = \frac{ADCValue}{1023}

Moisture in percentage = 100 – (Analog output * 100)

For zero moisture, we get maximum value of 10-bit ADC, i.e. 1023. This, in turn, gives 0% moisture.


Soil Moisture Code for Arduino Uno

const int sensor_pin = A1;	/* Soil moisture sensor O/P pin */

void setup() {
  Serial.begin(9600);	/* Define baud rate for serial communication */

void loop() {
  float moisture_percentage;
  int sensor_analog;
  sensor_analog = analogRead(sensor_pin);
  moisture_percentage = ( 100 - ( (sensor_analog/1023.00) * 100 ) );
  Serial.print("Moisture Percentage = ");



Video of Soil Moisture measurement using Arduino Uno

Components Used

Arduino UNO
Arduino UNO
Arduino Nano
Arduino Nano
Soil Moisture Sensor
Soil moisture sensor is used to measure the water content (moisture) in soil. It is used in agriculture applications, irrigation and gardening systems, etc.


Soil_Moisture_Sensor_Interfacing_With_Arduino_INO Download
