Analog Joystick Interfacing with Arduino UNO

Overview of Analog Joystick


Analog Joystick Module
Analog Joystick


Applications like video games that require a change in cursor position in a 2-D plane make use of analog joysticks as input devices.

Analog joystick produces two voltages; one corresponding to position with respect to X-axis and another corresponding to the position with respect to Y-axis. The voltages produced depend on the position of the joystick.

For more information about Analog Joystick and how to use it, refer the topic Analog Joystick in the sensors and modules section.

To interface the Analog Joystick with Arduino Uno, we need to use ADC on the microcontroller of the Arduino UNO board.

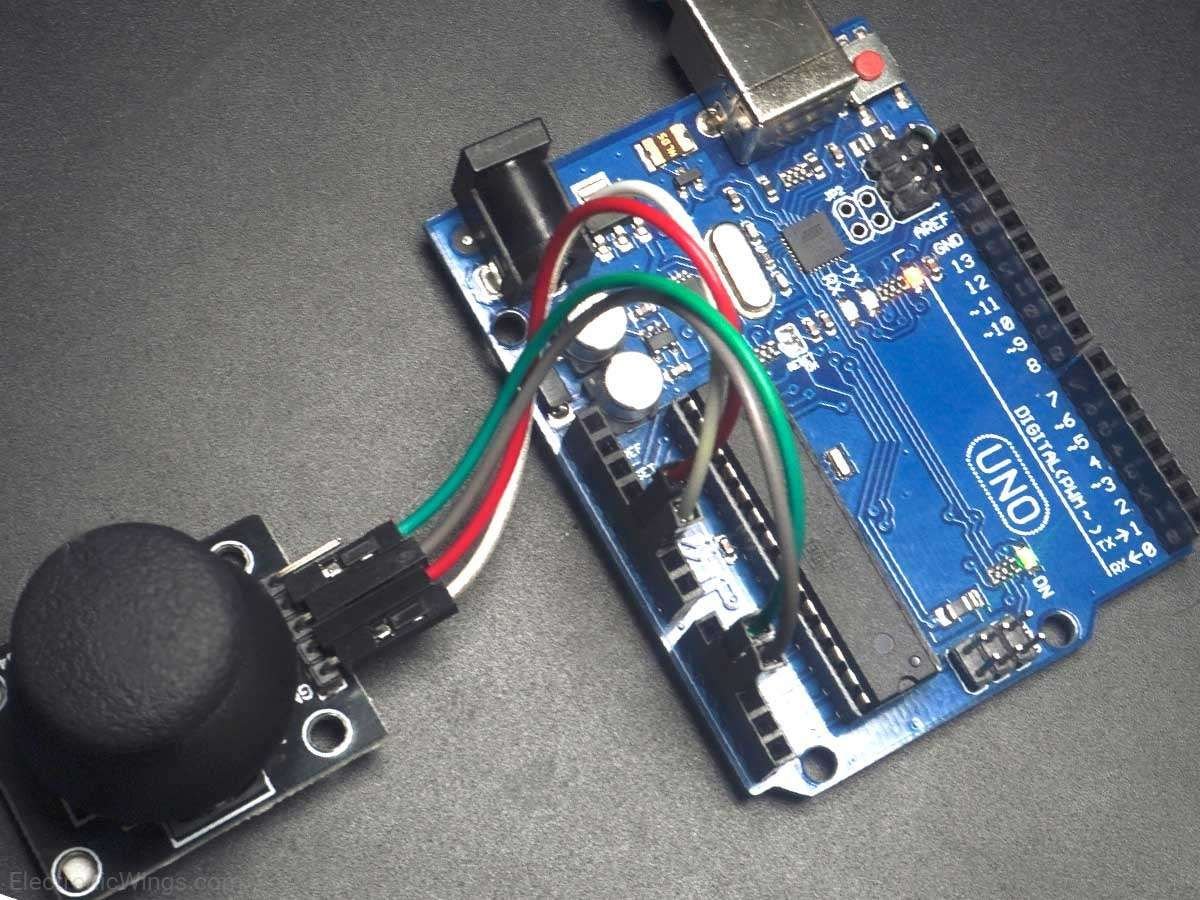

Connection Diagram of Analog Joystick with Arduino

Interfacing Analog Joystick With Arduino UNO
Interfacing Analog Joystick Module with Arduino UNO


Get the X and Y Positions of Analog Joystick with Arduino Uno

Displaying analog joystick voltages in X and Y directions on the serial monitor of Arduino.

Here, we will be using the analog pins of Arduino to process the analog voltages of the joystick.


Analog Joystick Code for Arduino Uno

const int joystick_x_pin = A2;
const int joystick_y_pin = A1;

void setup() {
  Serial.begin(9600);   /* Define baud rate for serial communication */

void loop() {
  int x_adc_val, y_adc_val;
  float x_volt, y_volt;
  x_adc_val = analogRead(joystick_x_pin);
  y_adc_val = analogRead(joystick_y_pin);
  x_volt = ( ( x_adc_val * 5.0 ) / 1023 );  /*Convert digital value to voltage */
  y_volt = ( ( y_adc_val * 5.0 ) / 1023 );  /*Convert digital value to voltage */
  Serial.print("X_Voltage = ");
  Serial.print("Y_Voltage = ");


Video of Reading Analog Joystick Using Arduino Uno

Components Used

Arduino UNO
Arduino UNO
Arduino Nano
Arduino Nano
Analog Joystick
Joystick is an input device used to control the pointer movement in 2-dimension axis. It is mostly used in Video games.


Analog_Joystick_Interfacing_With_Arduino_INO Download
