Shourya a robot which can be very helpful in this pandemic

Published Oct 13, 2020
 25 hours to build
 Intermediate

Shourya 1.00 is a robot which can help our medical staff in this pandemic. This robot can serve up-to 1 kg of load to the patient which will decrease the contact between the patient and the staff. This robot is controlled by a mobile phone (compatible with Android and iOS) via Bluetooth and is very cost effective as it cost's only 1500 Rs. We can also upgrade the robot by changing its motors and using more better batteries.

display image

Components Used

L298N Motor driver
L298N is a high current, high voltage dual full bridge motor driver. It is useful for driving inductive loads.
1
Bluetooth Module HC-05
Bluetooth is a wireless communication protocol used to communicate over short distances. It is used for low power, low cost wireless data transmission applications over 2.4 – 2.485 GHz (unlicensed) frequency band.
1
Arduino Nano
Arduino Nano
1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires
16
LED 5mm
LED 5mm
1
DC Gearbox Motor
Adafruit Accessories DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC
1
Wheel for DC Gearbox Motors
Adafruit Accessories Skinny Wheel for TT DC Gearbox Motors
2
Cardboard
to mount the LEDs
2
Description

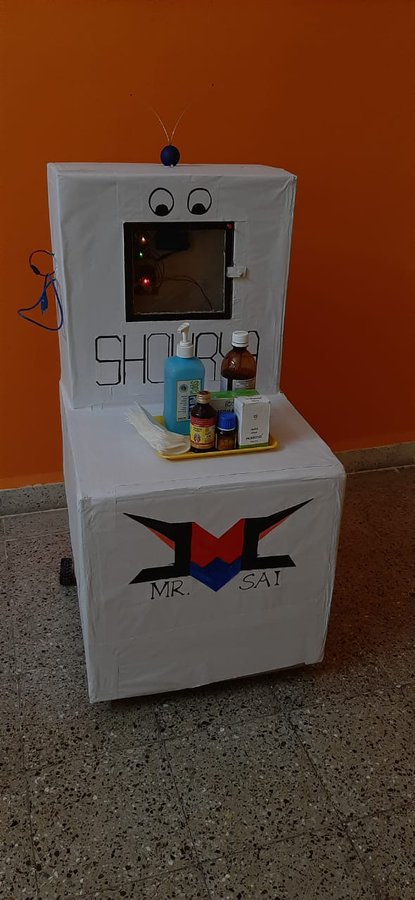

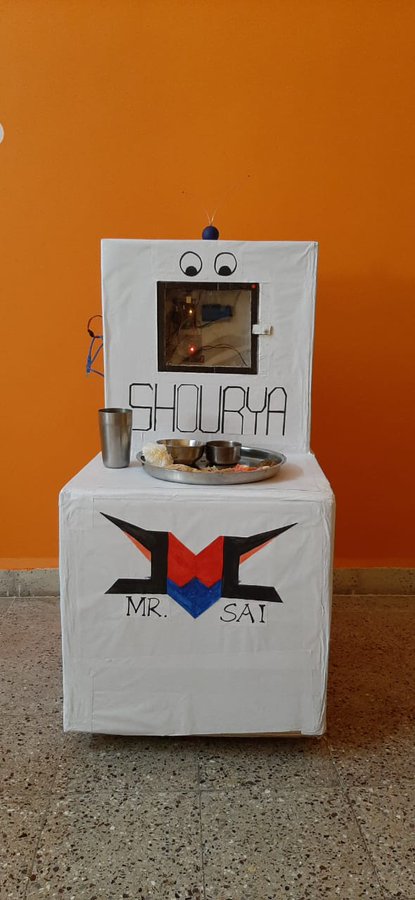

This is a mobile-controlled Arduino-based Robot used for serving and can carry up to 1 kg of load. This robot will go to the patients and serve instead of medical staff, this will help to prevent the medical staff from getting infected by COVID-19.



Shourya a robot which can be very helpful in this pandemic





For further reference please contact:

Madhuri Rangdal: +91 9823805068

Suresh Rangdal: +91 8888833821

Madhuri Rangdal: [email protected]

Suresh Rangdal: [email protected]



These are some links for the reference:

Lokmat Times ePaper http://epaperlokmat.in/lokmattimes/epapernew.php?articleid=LOKTIME_LTCP_20200417_2_7&width=219px…

Lokmat ePaper http://epaperlokmat.in/epapernew.php?articleid=LOK_HABD_20200417_2_1&width=527px… Arduino Robot SHOURYA 1.00 https://youtu.be/8Vbnp4ccEXE






Codes

Downloads

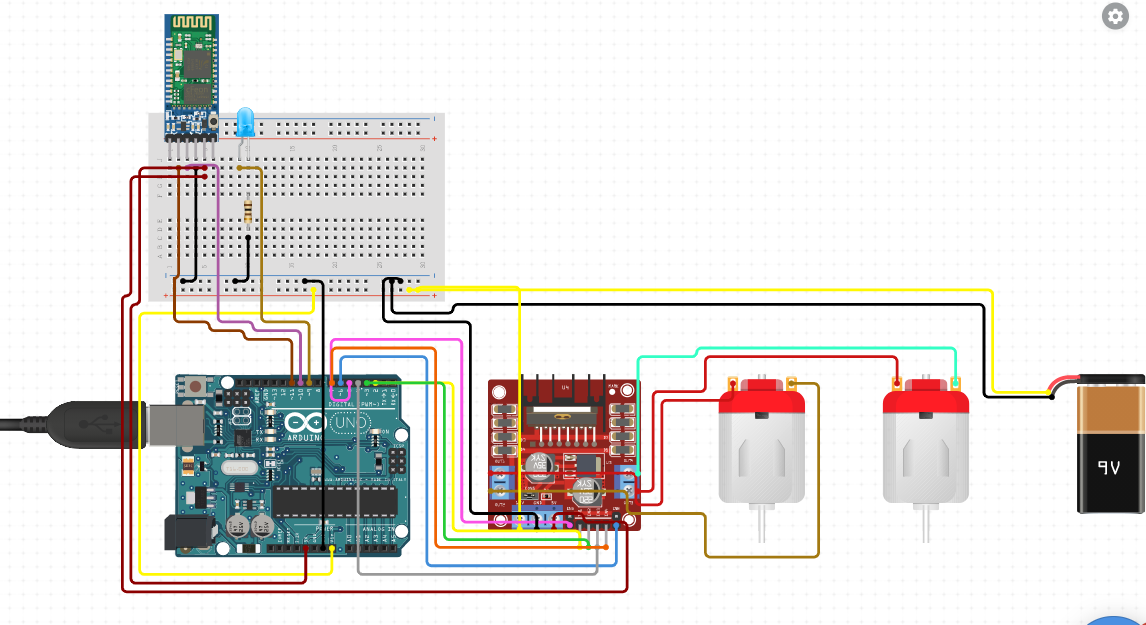

13_10_2020_10_11_27_REC Download
