IOT BASED FASTPAY SYSTEM FOR UNAUTHORISED PARKING

Published Dec 13, 2021
 5 hours to build
 Intermediate

The main objective of our project is to use a fast payment method when a vehicle is booked for unauthorized parking. we have used an RFID reader in which we have embedded the details for the vehicle. The details may include the owner of the vehicle, the vehicle number, and other relevant details. Every RFID card will be linked their corresponding bank account.

display image

Components Used

RC522 RFID
MFRC522 is a highly integrated reader/writer IC for contactless communication at 13.56MHz.
1
LCD 16x2 with I2C Interface
LCD 16x2 with I2C Interface
1
NodeMCU
NodeMCUNodeMCU
1
Female to Female Jumper Wire
Jumper Wires Mach pin jumper wires
20
Description

In this project, we have proposed a method for automating the payment when a vehicle is found to be in unauthorized parking. Thus we can improve the efficiency and speed while payment.

            For this purpose, we have used an RFID reader in which we have embedded the details for the vehicle. The details may include the owner of the vehicle, the vehicle number, and other relevant details. Every RFID card will be linked their corresponding bank account.

Thus when a vehicle is parked in a NO PARKING area, fining the vehicle can be made digital. Furthermore after the process of payment is done, the detail of the offense made by the vehicle is stored in the cloud database. Thus making it easier while checking for repeated offender and issuing the fine accordingly. Moreover in this project, once the vehicle is found to be parked in unauthorized area, it automatically detects the fine amount from the corresponding bank account.

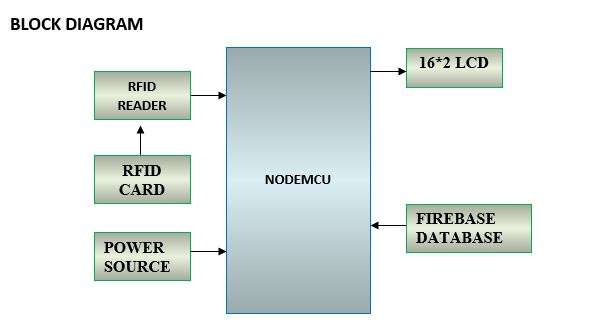

BLOCK DIAGRAM:

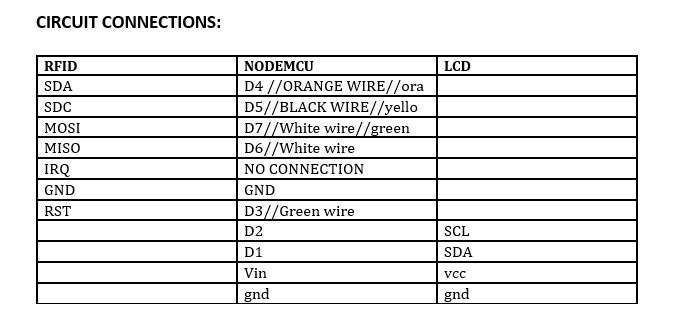

CIRCUIT CONNECTION

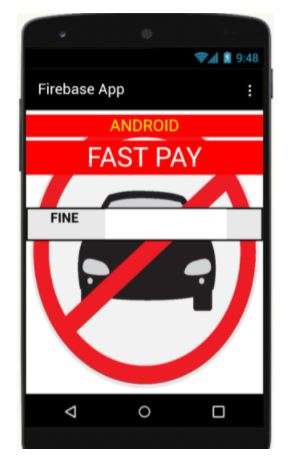

ANDROID APP:

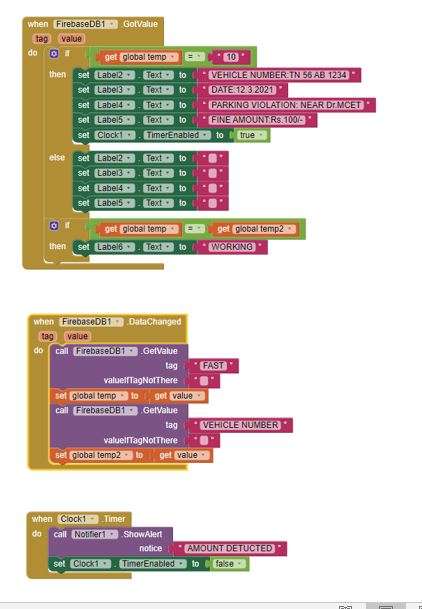

APP CODE

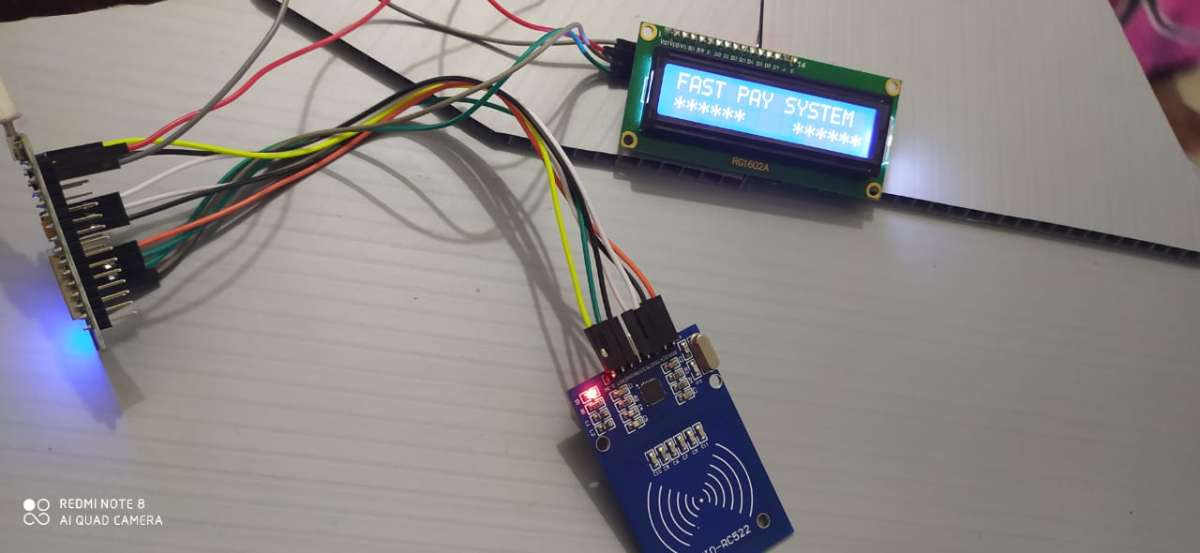

PROJECT OUTPUT

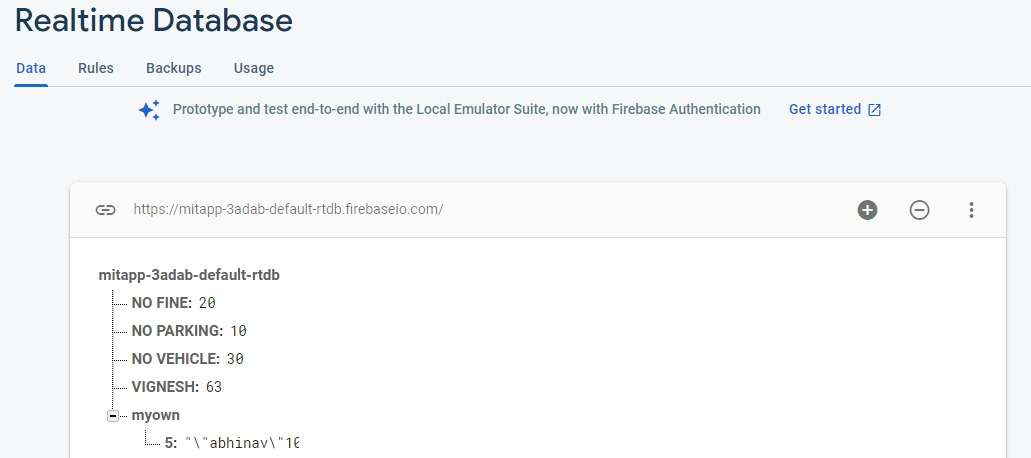

FIREBASE OUTPUT
PROJECT OUTPUT
Codes

Downloads

fast pay Download

Institute / Organization

VSD CODECADEMY
