IR controlled electricals

Published Aug 06, 2020
 GPL-3.0-only
 2 hours to build
 Intermediate
arduino

In this project ,I will be controlling status of Bulbs and DC motor.I also control speed of Motor usiing IR remote

display image

Components Used
TSOP38238 IR Receiver Modules
TSOP38238 is a miniaturized IR (infrared) receiver module for infrared remote control systems. 		X 1
DRV8830 Low-Voltage Motor Driver
DRV8830 is a low-voltage H-Bridge motor driver with a serial interface. 		X 1
Arduino Nano
Arduino Nano 		X 1
Resistor 100 Ohms
Metal Film Resistors - Through Hole 100ohm 1/4W 1% 		X 1
SPDT Slide Switche
Slide Switches Large-sized Type 1P2T 		X 1
12VDC Adapters Power Supply
Wall Mount AC Adapters POWER SUPPLY 12VDC MEDIC GRADE US EU UK 		X 1
Lamps
Lamps Candelabra Screw 230V 		X 5
General Purpose Relays 12V 7A
General Purpose Relays 7A, General Purpose Relay 		X 5
L293D Driver
L293D Driver 		X 1
Propeller Fan for DC Motor
Adafruit Accessories 3-Bladed Trifoil Propeller Fan for DC Motor 		X 1
AD619
Ad 619 		X 1
Description

I am using Arduino UNO to write my code and control Electrical appliances connected to it.

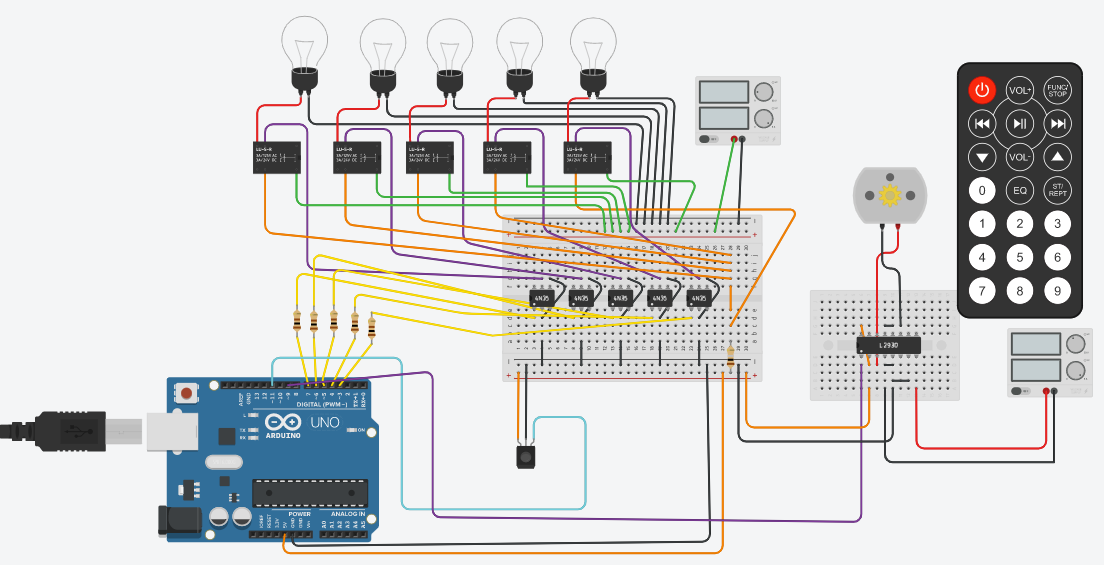

The steps I followed in connecting hardware.

  1. The bulb is supplied with 12V DC and grounded. SPDT switch is used to differentiate 12V and 5V supply.
  2. The optocoupler is connected to isolate Microprocessor from 12V supply.
  3. IR receiver is connected to Arduino UNO.
  4. DC motor is connected to the motor driver and then to Arduino.
  5. remote is used to control destination appliances.



Codes

Downloads
motor and light control Download
