Obstacle scanners can be used in “Vehicle Braking Systems” to protect vehicles from getting damaged while riding. Our project acts as a security feature for vehicles so that if a person or any obstacle comes in front of vehicle, it is detected by the IR sensor and emergency brakes are initiated, hence the vehicle stops.
Components Used |
||
|---|---|---|
| LCD 16x2 Display Module LCD16x2 has two lines with 16 character in each line. LCD16x2 is generally used for printing values and string in embedded application. |
X 1 | |
| BC547 TRANSISTORS BC547 TRANSISTORS |
X 1 | |
| AK9753 IR sensor AK9753 is a low power and compact IR (infrared) sensor module. |
X 1 | |
| MSP430G2553 16-bit Microcontroller 16-bit Microcontrollers - MCU Mixed Signal MCU |
X 1 | |
| Potentiometer 10Kohms Potentiometers 10Kohms 10% 12.5mm Cermet Element |
X 1 | |
| DC Gearbox Motor Adafruit Accessories DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC |
X 2 | |
The goal of "Vehicle Braking Systems" is to keep automobiles from being damaged while riding. Our project functions as a vehicle security feature in that if a person or an impediment approaches in front of the car, the IR sensor detects it and emergency brakes are activated, causing the vehicle to stop.

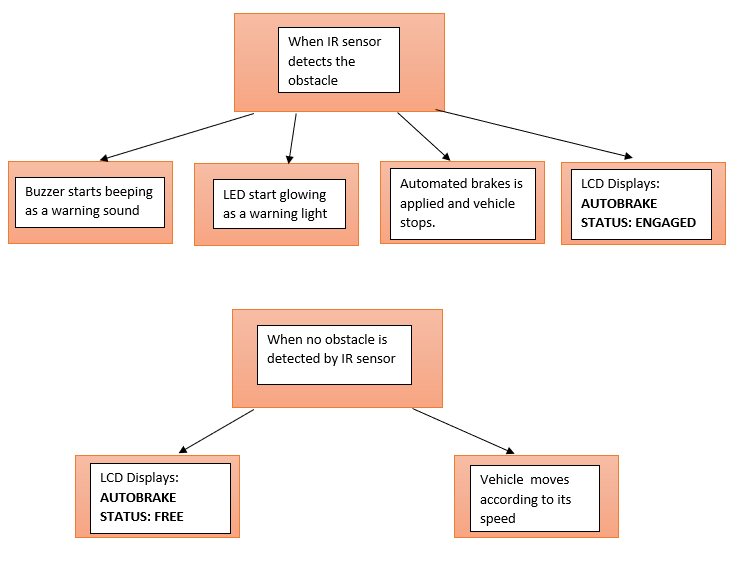

The following flowchart depicts the working of vehicle braking system.
