Mini Tati Helper

Published Dec 13, 2020

GPL-3.0-only

15 hours to build

Beginner

arduino

The motto of our project that helps elder people to give medicine and water by automated robot without any helpers.

Components Used
Bluetooth Module HC-05 Bluetooth is a wireless communication protocol used to communicate over short distances. It is used for low power, low cost wireless data transmission applications over 2.4 – 2.485 GHz (unlicensed) frequency band.	X 1
Ultrasonic Module HC-SR04 Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm.	X 1
Arduino Nano Arduino Nano	X 2
L293D Driver L293D Driver	X 1
Connecting Wire Jumper Wires Connecting Wire Breadboard wires	X 15
SG90 micro servo Motor DFRobot Accessories 9g micro servo (1.6kg)	X 1
9V Battery Consumer Battery & Photo Battery 9V RECTANGLE	X 1
DC Gearbox Motor Adafruit Accessories DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC	X 4
Wheel for DC Gearbox Motors Adafruit Accessories Skinny Wheel for TT DC Gearbox Motors	X 4
AA Battery AA Battery	X 2

Description

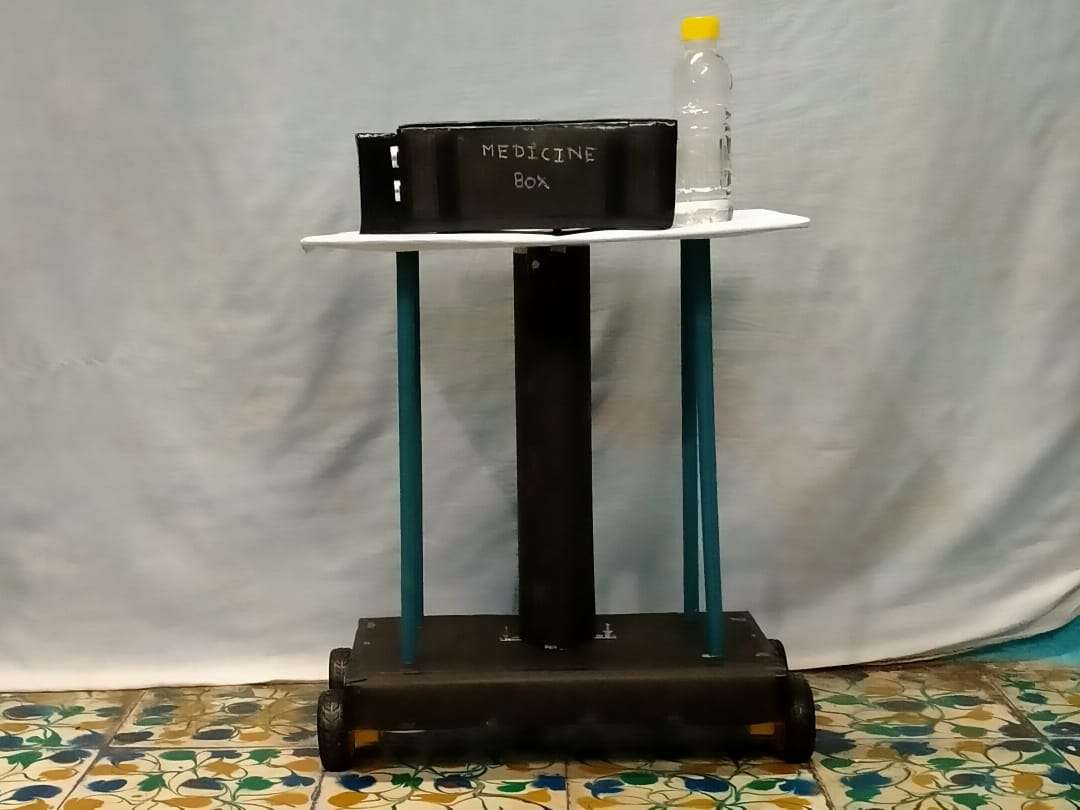

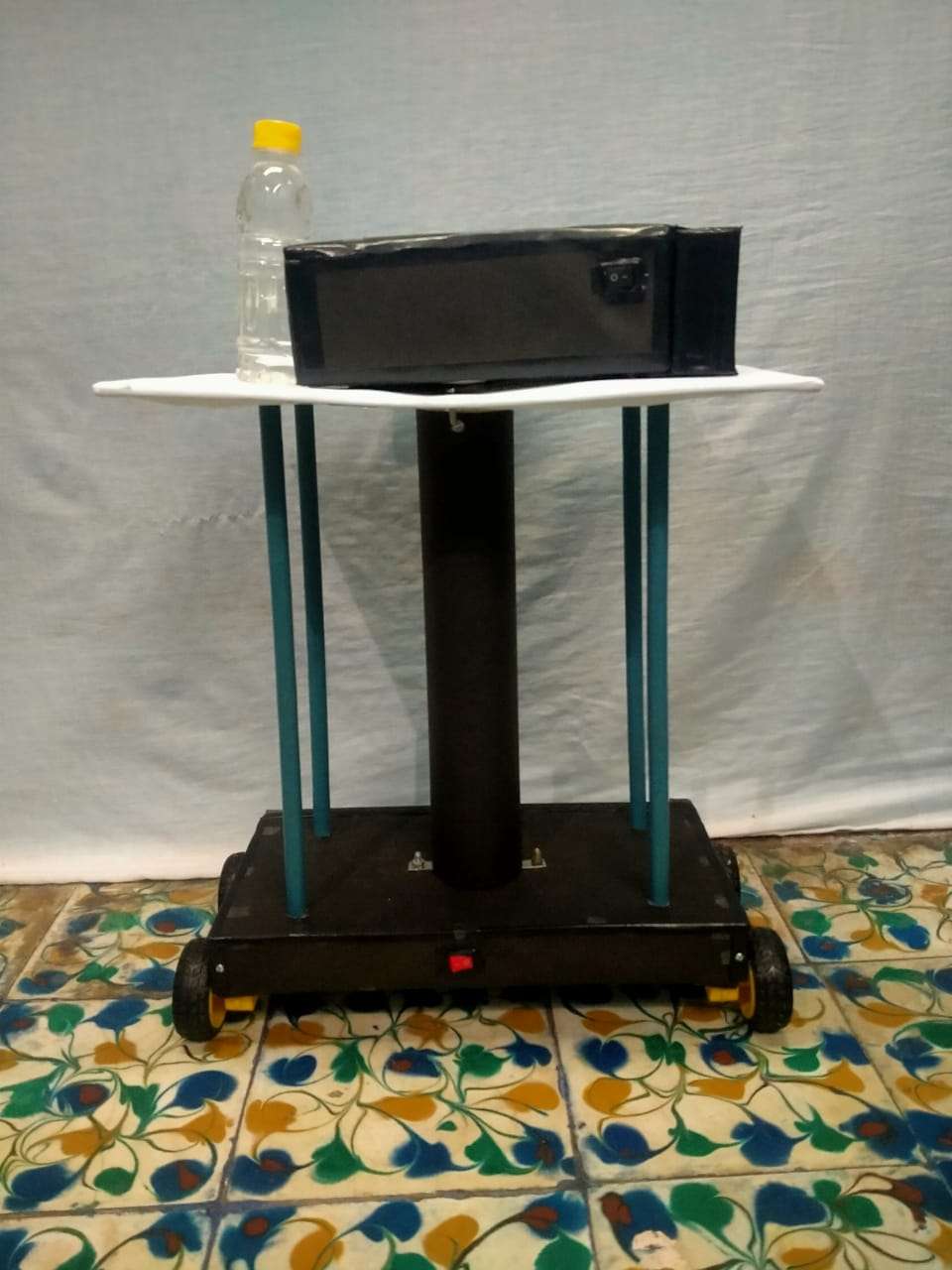

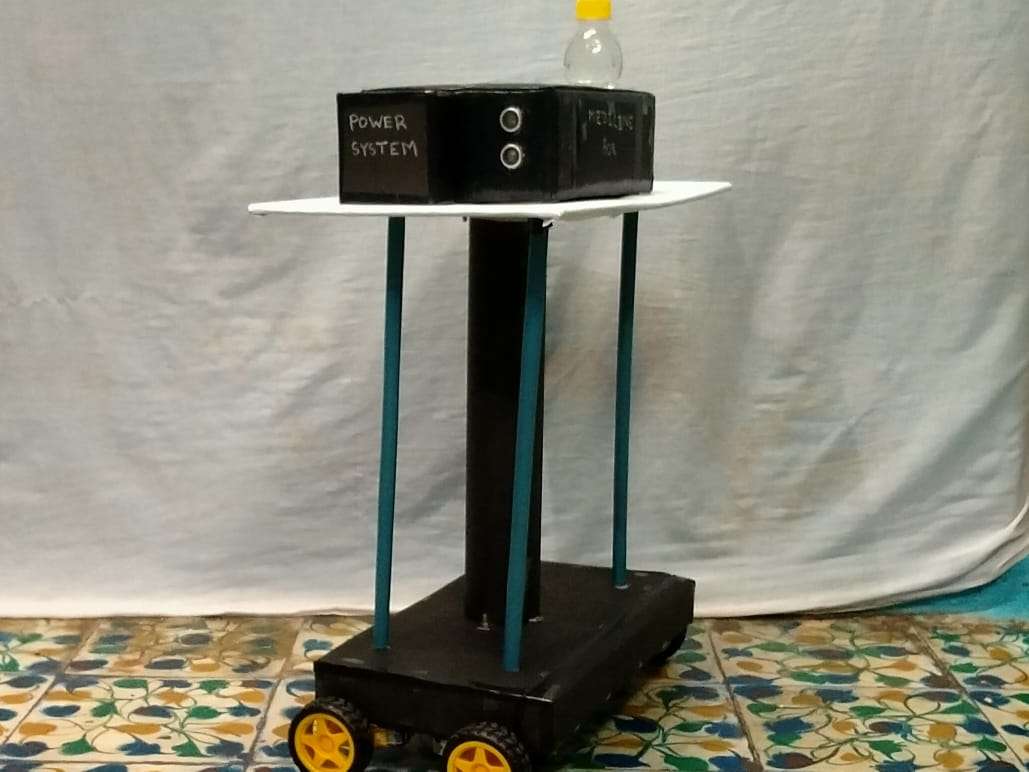

Our primary aim is to focus on those elderly people who suffer from osteoarthritis, myasthenia gravis, etc. We provide them medicine on time by means of automated Medbot. We enable Bluetooth module to track their movements and also to monitor them even with smart phones. In our prototype we have provided necessary space to place medicine and also provide water. We had installed necessary sensors which can detect the surrounding and can move around without having any trouble. Extra provision is available for keeping other things like shoes ,spectacles,etc..

ASSEMBLING PROCESS:

First we have connect arduino with l293d motor shield driver.

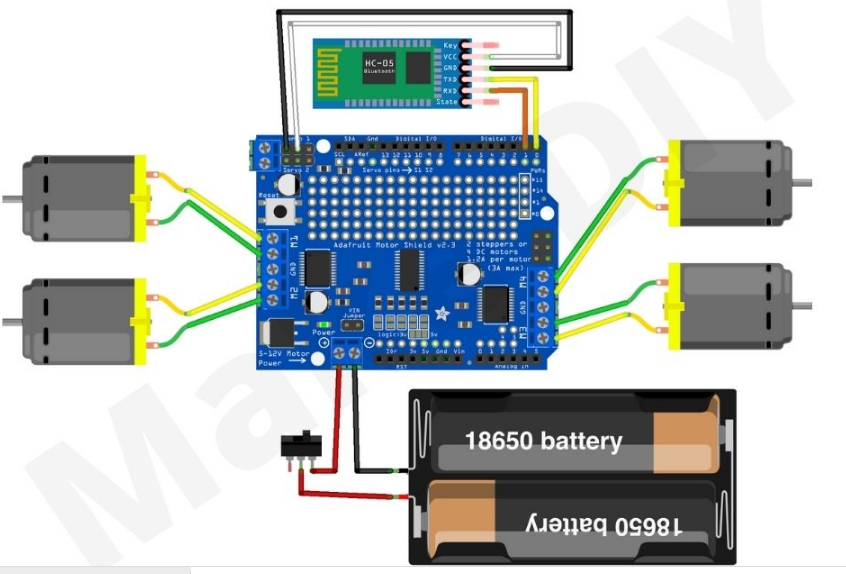

Then we connnect four BO gear motor (M1,M2,M3,M4) to l293d motor shield driver.
After we connect bluetooth module (hc-05) to shield.
Then connect arduino uno to laptop/pc by USB cable and upload code given in codes part.
All the components are connected with help of jumper wires.

We install bluetooth connect car from playstore.
We give power supply by using 18650 3.7 Li-on battery to shield.

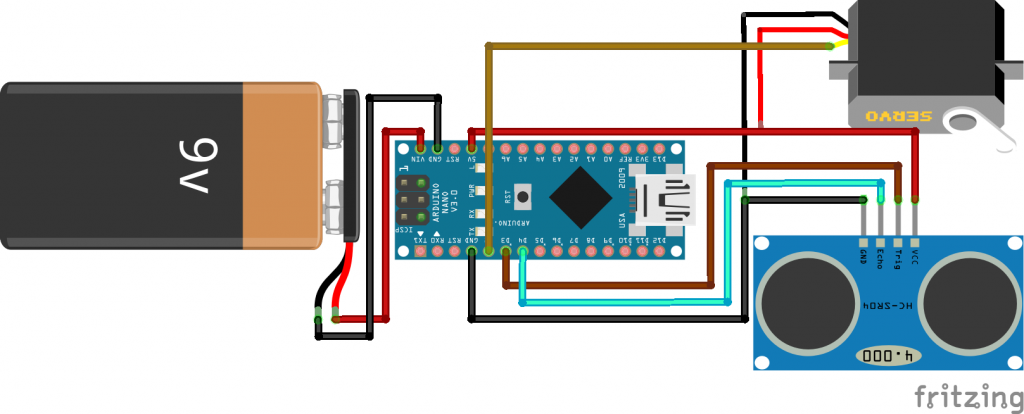

Next we take arduino nano connect with servo and ultrasonic sensor as per given circuit diagram.
Then connect arduino nano to laptop/pc by USB cable and upload code given in codes part.
After give 9v volt power supply to arduino nano by using jumper wires.
