4 RELAY SMART HOME

Published Sep 12, 2021
 1 hours to build
 Beginner

My Project help to make a normal home to a smart home. And the size of project is very comapct. And the project is based on esp8266 12E smart chip.

display image

Components Used

BC547 TRANSISTORS
BC547 TRANSISTORS
4
ESP8266 WiFi Module
ESP8266 is a system on chip (SoC) which provides WIFI capability for embedded applications. This enables internet connectivity to embedded applications. ESP8266 modules are mostly used in Internet of Things(IoT) applications.
1
GPCB
PCBs & Breadboards PadBoard-3U 2 sided with plated holes
1
Diode 1N400x
Diode 1N400x
4
Screw and Stand-off Set
Adafruit Accessories Black Nylon Screw + Stand-off Set
4
5V SMPS
Switching Power Supplies AC-DC 35W LOW COST
1
Relay module 4 Channel
Relay module 4 Channel
4
Wire
Hook-up Wire 788133 RED 100 FT
1
Description

4 RELAY SMART HOME

At first, I cut zero PCB at 9*5cm(width*height). then I fit all the components(relays,diode,terminals,esp8266 etc.) to the PCB.

Thereafter, I soldered all the components as per the schematic. The testing of the circuit is on youtube on my channel.

And, for the Blynk app configuration click here. And I recommend using 5 volts 0.5 amperes for this project. To upload the code, I used the programmer's witty cloud development board.

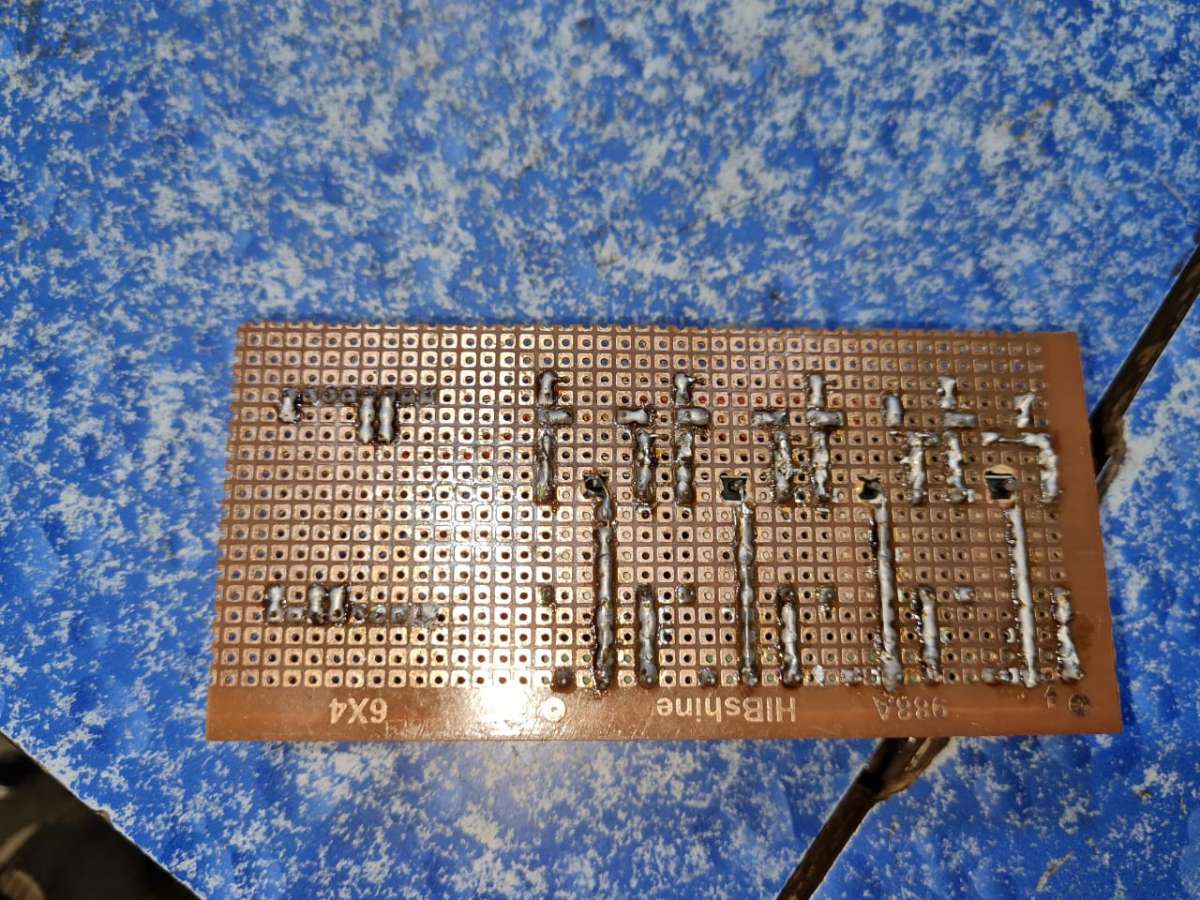

BACKSIDE OF THE PROJECT



Video



Codes

Downloads

wifi smart home_png Download
