Crop Selector for soil

Published Dec 14, 2020
 16 hours to build
 Beginner

It is a device that helps to test the soil nutrients and suggest the crops which are suitable for that particular place according to the nutrients level in the soil

display image

Components Used

Arduino Nano
Arduino Nano
1
Breadboard
Breadboard
1
SSD1306 OLED display
OLED (Organic Graphic Display) display modules are compact and have high contrast pixels which make this display easily readable. They do not require backlight since the display creates its own light. Hence they consume less power. It is widely used in Smartphones, Digital display.
1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires
1
5VDC Adapters Power Supply
Wall Mount AC Adapters ac-dc, 5 Vdc, 2 A, SW, wall-plug, EU, P5 center pos, level VI, black
1
RS485 MODBUS Module
Interface Modules RS-485COMMUNICATIONS MODULE/
1
NPK Sensor
It is suitable for detecting the content of nitrogen, phosphorus, and potassium in the soil
1
Description

Description:

         Soil nutrient is the most important part of successful agriculture. It plays a vital role for healthy plant growth. The major nutrients are Nitrogen(N), Phosphorus(P) and Potassium(K). Our Device is used to detect the soil nutrient contents using NPK Soil Sensor and Arduino.

         Our Device can help us to learn about the nutritional deficiency to improve plant production. As well as it gives the suggestion of which crops can be yielded in that particular soil based on the values of NPK percentage.

         In addition our device also suggest the quantity of fertilizers to be used to increase the soil fertility. This is necessary because fertile soils are necessary to grow healthy crops.

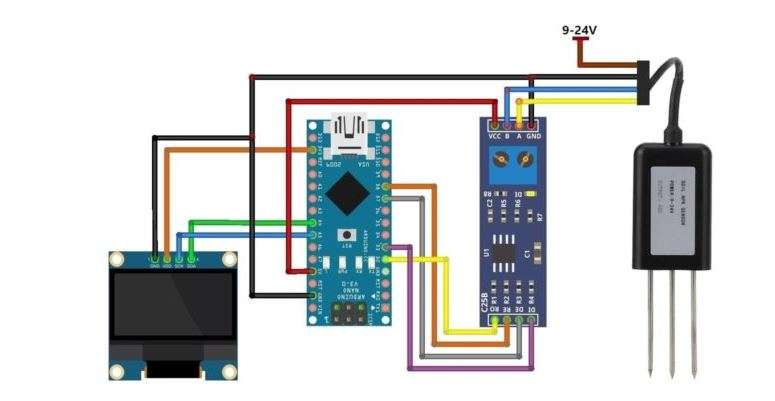

Connection Diagram:

Connection Diagram

Working:

  • To check the nutrients present in the soil a small amount of soil is taken as sample
  • Then we’re inserting the pins present in the NPK sensor into the soil
  • And then it displays the amount of Nitrogen, Phosphorus and Potassium present in the soil
  • After Determining the amount of NPK present in the soil, the user should enter the amount of NPK in the app
  • And then the app will display the variety of crops based on the NPK values entered
  • Then the user can yield a particular crop in that soil or area.

Advantages:

  1. In traditional method it can be tested by using lab experts but our product is very handy and show the content immediately and accurately
  2. This saves time and cost of the farmer (User)

Further Improvement:

  • In Future we’ll also forecast the weather and gives the suggestion to plant the crops according to the climatic conditions
  • Due to that major amount of crops drowning on water as well as crops rotting can be reduced

Conclusion:

          Our device display the amount of nutrients (i.e) [Nitrogen, Phosphorus and Potassium] present in the soil accurately and quickly. It also gives the variety of crops that suits for the given sample soil at right climatic conditions which improves the crop yield. In simple words to say “Our device will be the best companion for the farmer”.

Codes

Downloads

Crop Selector For Soil Download

Institute / Organization

PSNA COLLEGE OF ENGINEERING AND TECHNOLOGY
