SPO2 CONTROLLED OXYGEN DELIVERY SYSTEM

Published Sep 22, 2022
 150 hours to build
 Beginner

A system and method for delivering oxygen to a patient and supplying oxygen, a controller for adjusting oxygen flow from an oxygen supply to Patient and SpO2 is used to determine the user's blood oxygen saturation level, wherein the controller adjusts the oxygen flow based on the SpO2 determination of the blood saturation level user with oxygen.

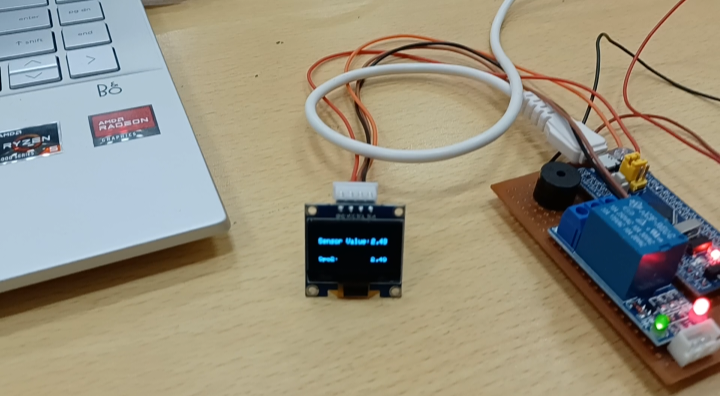

display image

Components Used

bmp280 Digital Pressure Sensor
BMP280 is digital pressure sensor used for measuring pressure and temperature with I2C/ SPI.
1
Relay Module Single Channel
Relay Module Single Channel
1
SSD1306 OLED display
OLED (Organic Graphic Display) display modules are compact and have high contrast pixels which make this display easily readable. They do not require backlight since the display creates its own light. Hence they consume less power. It is widely used in Smartphones, Digital display.
1
STM32F103C8T6 32-Bit Cortex M3 Microcontroller
ARM Microcontrollers - MCU 32BIT Cortex M3 64KB 20KB RAM 2X12 ADC
1
128x64 (0.96") OLED Display
Adafruit Accessories Monochrome 0.96" OLED Graphic Display
1
Micro USB Cable
USB Cables / IEEE 1394 Cables 3FT STRONG MCROUSB-B/USBACBL
1
Piezo Buzzers
Piezo Buzzers & Audio Indicators buzzer, 14 mm Round, 6.7 mm deep, 10 Vp-p, 80 dB, Through Hole, Piezo Audio Transducer
1
MAX30100 Pulse Oximeter and Heart-Rate Sensor
MAX30100 is an integrated pulse oximetry and heart-rate monitor sensor solution.
1
Description

Our goal is to cut down on oxygen waste in the medical industry. We require oxygen for breathing. not breathing out. Thus, we used a pressure sensor to keep track of the pressure generated during inhalation and exhalation. Positive and negative pressure are produced during inhalation and exhalation, respectively. Therefore, the pressure sensor only allows the oxygen to flow when it detects negative pressure, and it closes the circuit (tube) when it detects positive pressure. In our work, we also used a Spo2 sensor to track the oxygen saturation level of the patient. If the patient's oxygen saturation level is greater than 98%, the flow is switched between positive and negative pressure by activating the pressure sensor. The oxygen flow is constant and the pressure sensor is not worked while the patient's oxygen saturation level is less than 98%. The patient needs additional oxygen to survive because their oxygen level is so low.

Codes

Institute / Organization

Bannari Amman Institute of Technology
