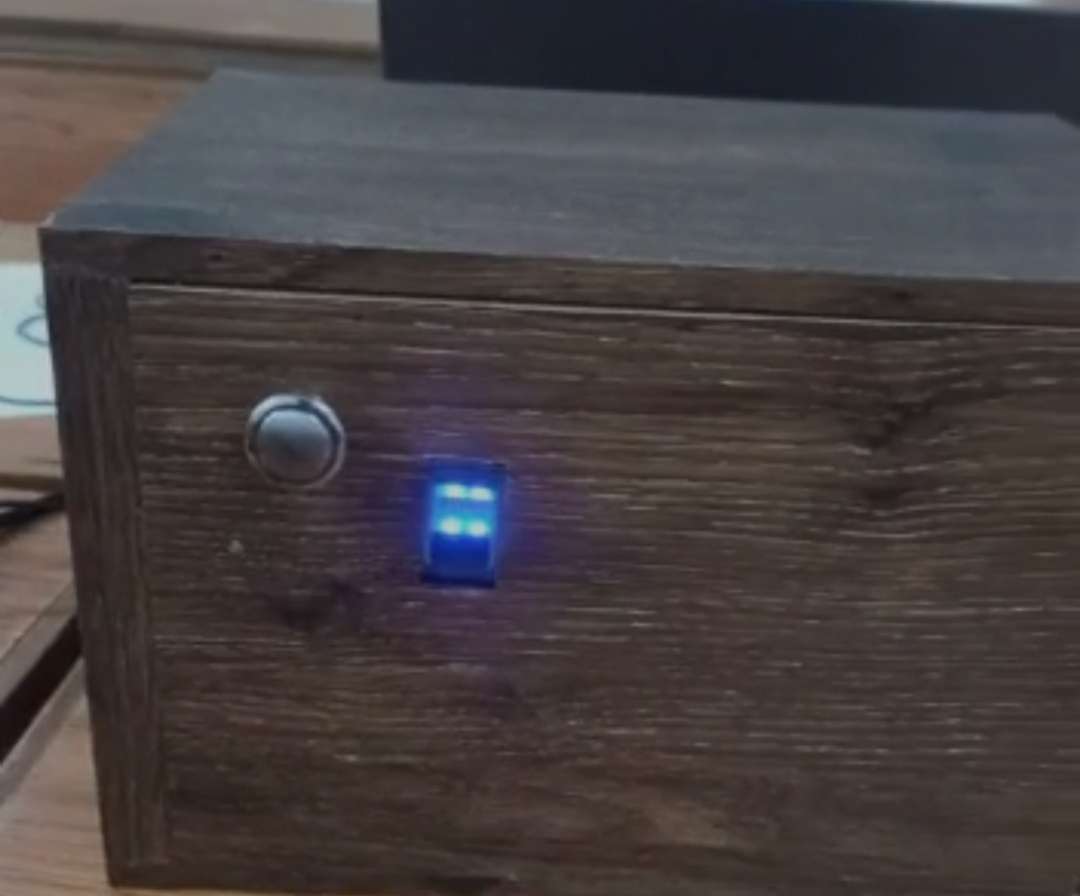

THIS IS THE ONE OF THE SAFTEY DEVICE WHICH IS USED TO PROTECT OUR THINGS SAFTELY . IN THIS PROJECT THE HIGHLIGHT IS WE INCLUDE THE FINGERPRINT METHOD .
Components Used |
||
|---|---|---|
| Arduino UNO Arduino UNO |
X 1 | |
| Fingerprint Sensor Modules Fingerprint Sensor Modules |
X 1 | |
| Relay Module Single Channel Relay Module Single Channel |
X 1 | |
| Solenoid Lock SparkFun Accessories Solenoid - 12V (Latch / Lock) |
X 1 | |
| 12VDC Adapters Power Supply Wall Mount AC Adapters POWER SUPPLY 12VDC MEDIC GRADE US EU UK |
X 1 | |

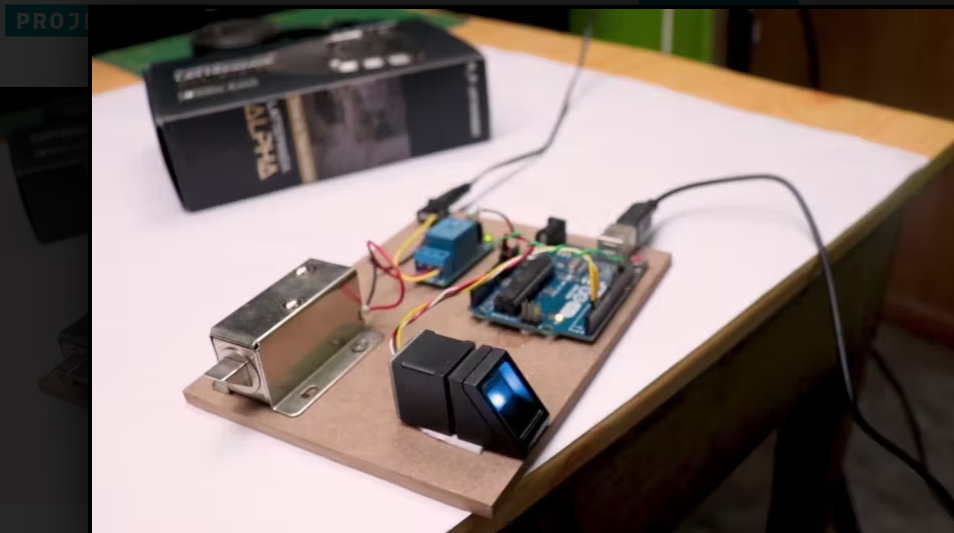

This project is completely based on the Arduino microcontroller. In the real-time application, we use this project in all types of lockers.
This is safer to use because the fingerprint module is used here.
We can enroll our fingerprint then users can easily handle it.
This system requires 5v only.
For reference, Please watch the video attached above.
.png)
Downloads |
||
|---|---|---|
|
|

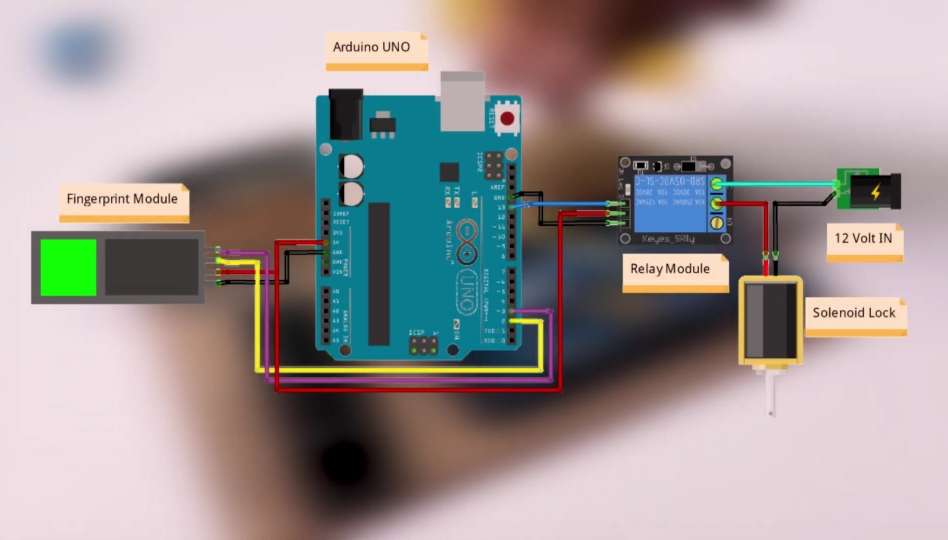

img_20210223_212451_lQJbjlRVx8 | Download |
