Coconut deu

Published Dec 10, 2020
 16 hours to build
 Beginner

an automatic line follower robot to climb over the coconut trees and pick the fruits, In order to prevent people from fall down.

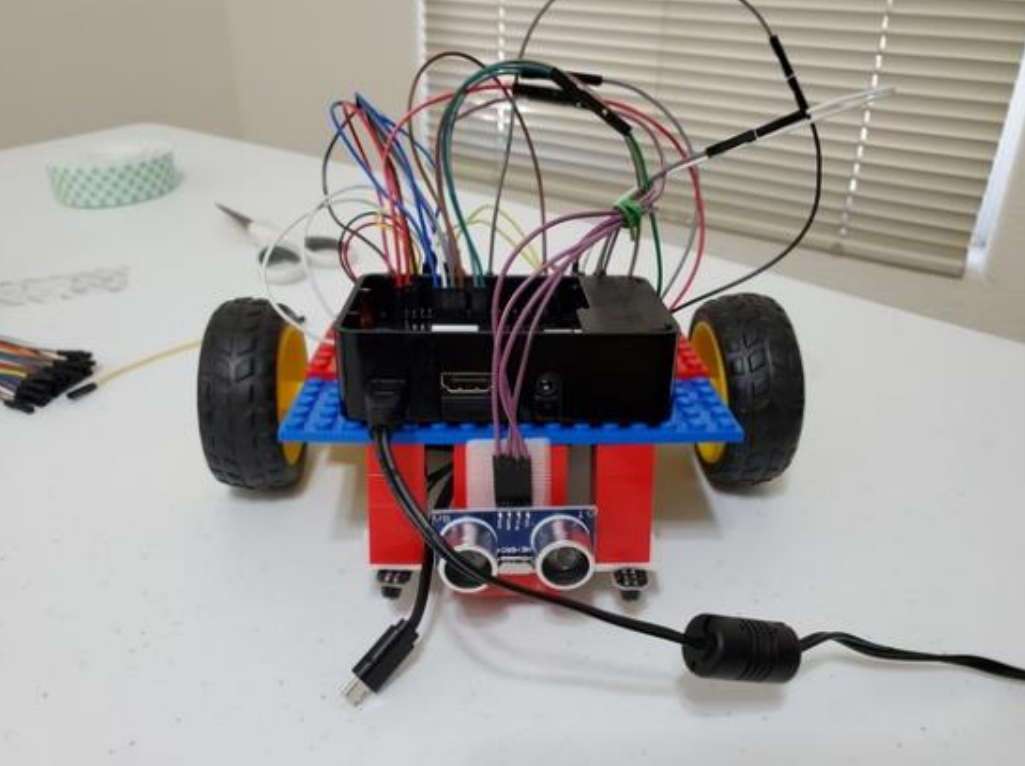

display image

Components Used

Raspberry Pi 4B
Raspberry Pi 4BRaspberry Pi 4B
1
AK9753 IR sensor
AK9753 is a low power and compact IR (infrared) sensor module.
1
mg2639 GSM Module
MG2639 is a compact, ultra low power GSM module with integrated GPS. It has UART, USB1.1, SPI and I2C interface.
1
9V Battery
Consumer Battery & Photo Battery 9V RECTANGLE
1
Ultrasonic Module HC-SR04
Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm.
1
DC Gearbox Motor
Adafruit Accessories DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC
2
Wheel for DC Gearbox Motors
Adafruit Accessories Skinny Wheel for TT DC Gearbox Motors
2
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires
1
Description

     Line Following is one of the most important aspects of robotics. . It is designed to move automatically and follow the line. The robot uses arrays of optical sensors to identify the line, thus assisting the robot to stay on track. An automatic line follower goes and climb over the coconut tree which the way is given by the controller. And then it picks the fruits and comes back. Finally, when the work is completed, it will send a message to the corresponding owner.

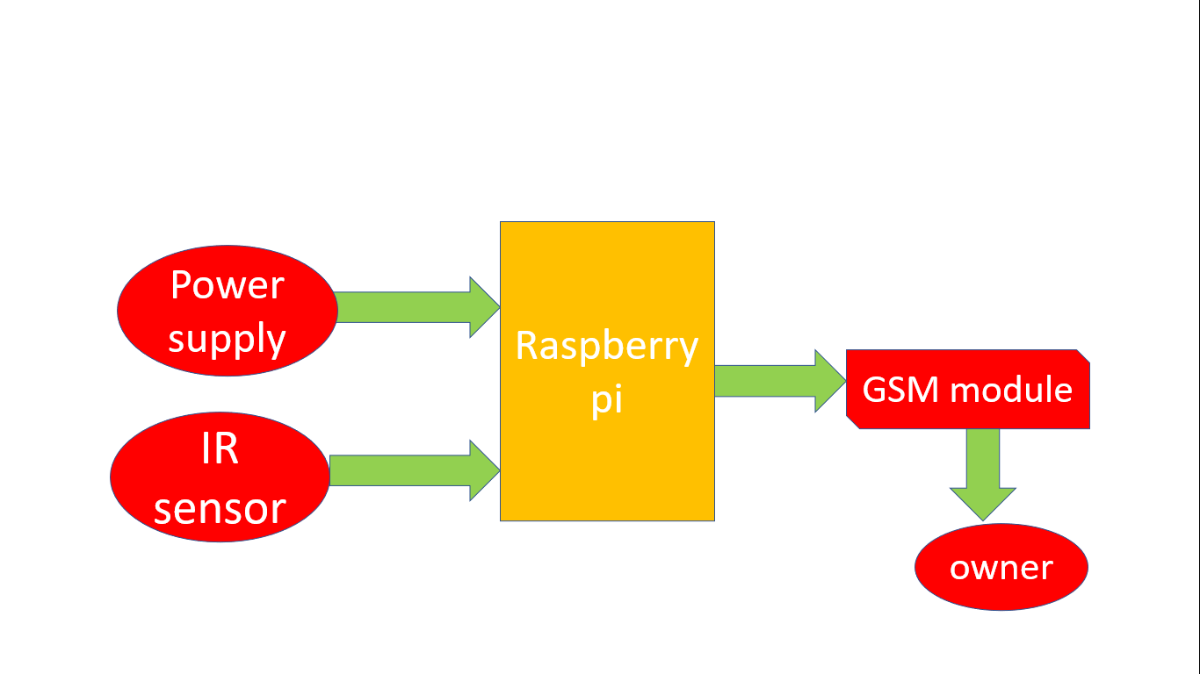

block diagram



Codes

Downloads

deu Download
