Fight Fire

Published Sep 23, 2021
 35 hours to build
 Intermediate

Fight Fire is a wildfire prediction device that will help the firefighting authority to respond quickly to the wildfire.

display image

Components Used

ESP32-DevKitM-1
ESP32-DevKitM-1
1
SHT10 Humidity and Temperature Sensor
SHT10 is a humidity and temperature sensor with an I2C interface.
1
BME680 Gas pressure Humidity temperature sensor
BME680 Gas, pressure, Humidity & temperature sensor
1
Lithium Ion Battery 3.7V 2500mAh 18650
Consumer Battery & Photo Battery 3.7V 2500mAh
1
Flame Sensor
Multiple Function Sensor Development Tools Grove - Flame Sensor
1
ATMEGA328PB-AN
8-bit Microcontrollers - MCU ATMEGA328PB 20MHZ Extd. Temp
1
PIR Sensor
PIR motion sensors sense the Infrared signal radiated from moving objects including human or animal body. It is generally used to detect the presence of human or animal motions.
1
LCD16x2 Display
LCD16x2 Display
1
SIM900A GSM GPRS Module
SIM900A is dual band GSM/GPRS 900/1800MHz module board used to utilize GSM and GPRS services around the globe. It is used to make/receive voice calls, send/receive text messages, connect to and access the internet over GPRS.
2
Tactile Switches
Tactile Switches 12 x 12 mm 12 mm 100 gf Short Crimped Black Through Hole SPST
1
SG90 micro servo Motor
DFRobot Accessories 9g micro servo (1.6kg)
1
DHT11
DHT11 is a single wire digital humidity and temperature sensor, which gives relative humidity in percentage and temperature in degree Celsius.
1
Terminal Blocks 2 POS 3.5mm
Fixed Terminal Blocks PT 1.5/2-3.5H 2POS HRZ 3.5mm SCREW
1
16MHz Crystal
Crystals 16MHz 20pF -20C 70C
1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires
1
IR LED Infrared Emitters
IR LED Infrared Emitters
2
Yellow LED 5mm
Standard LEDs - Through Hole LED HIGH BRIGHTNESS
2
Breadboard
Breadboard
2
7805 Voltage Regulator
7805 Voltage Regulator
1
9V Battery
Consumer Battery & Photo Battery 9V RECTANGLE
1
Copper clad PCB board
Copper Clad Boards DB SIDE COP CLAD BRD 1/16in 1 OZ COPPER
1
Description



This was a project that was incubated in Cisco thingQbator in 2018, from there I complete the fully working prototype.

Full documentation of the project.

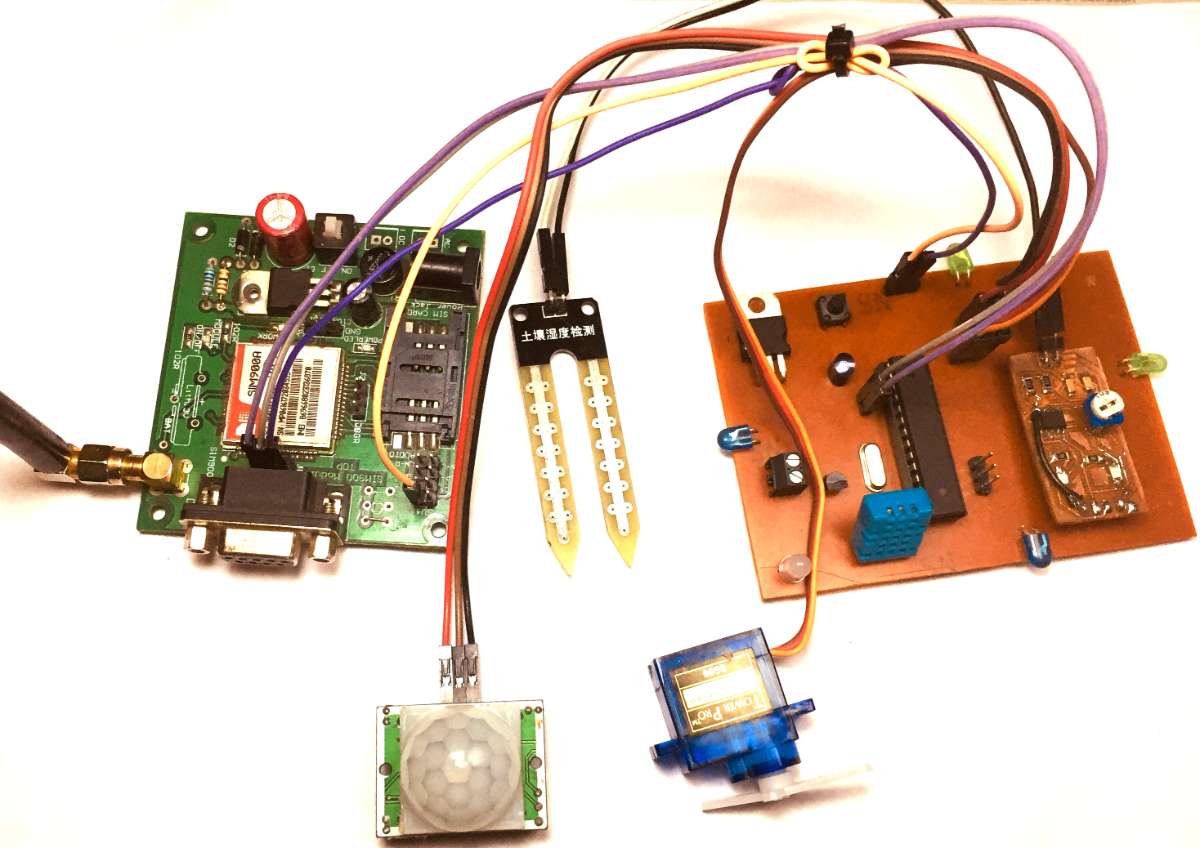

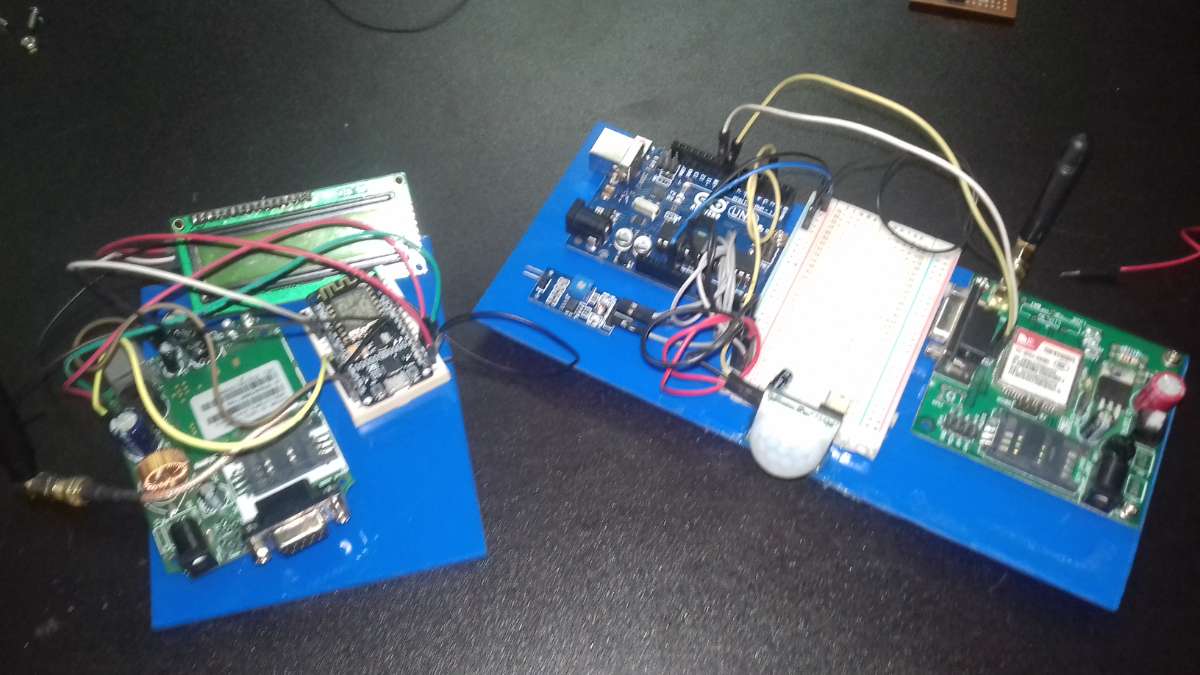

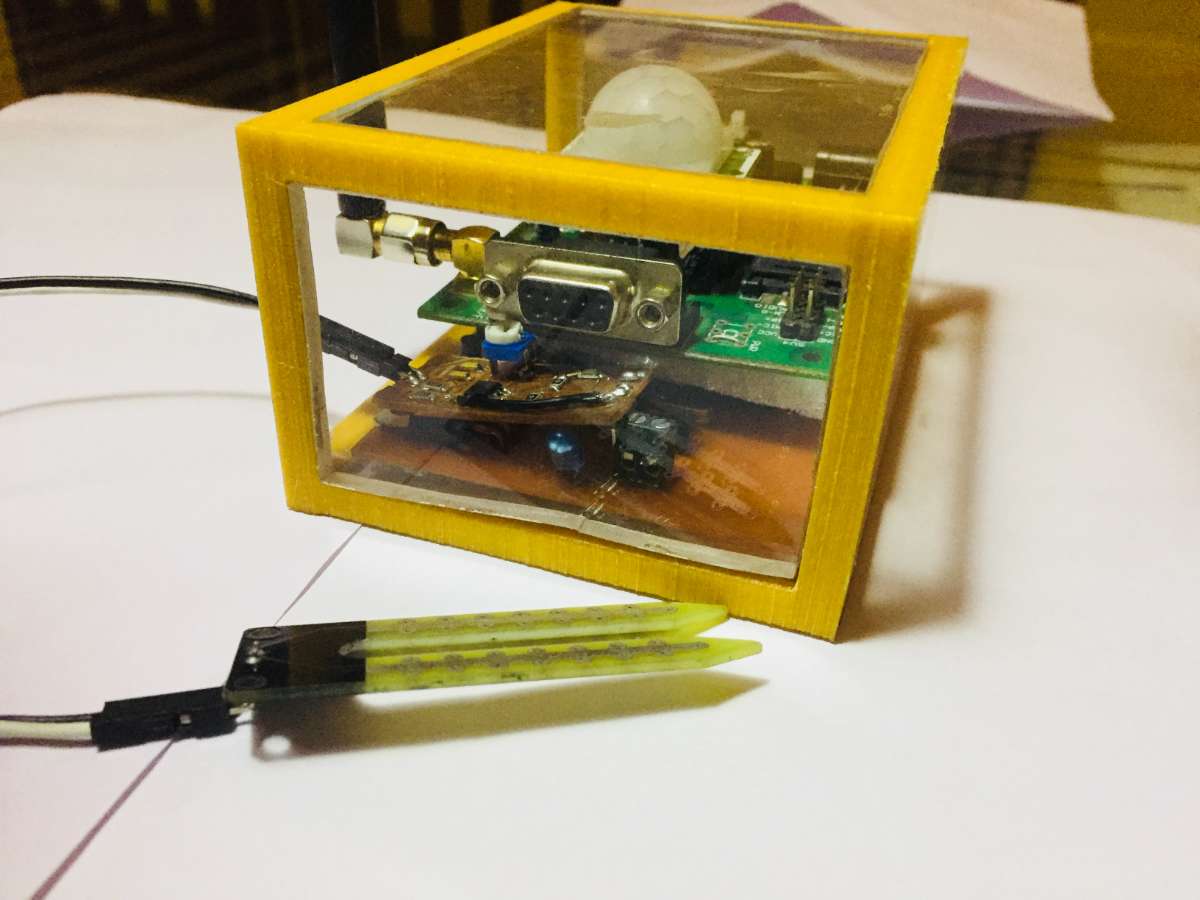

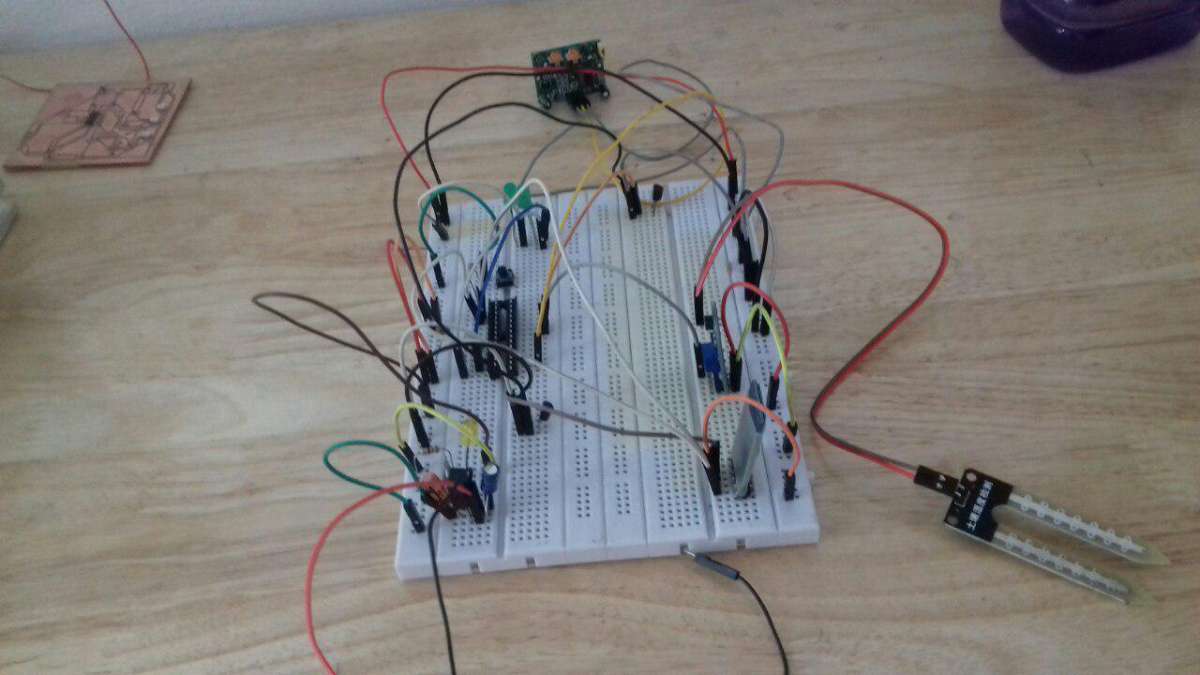

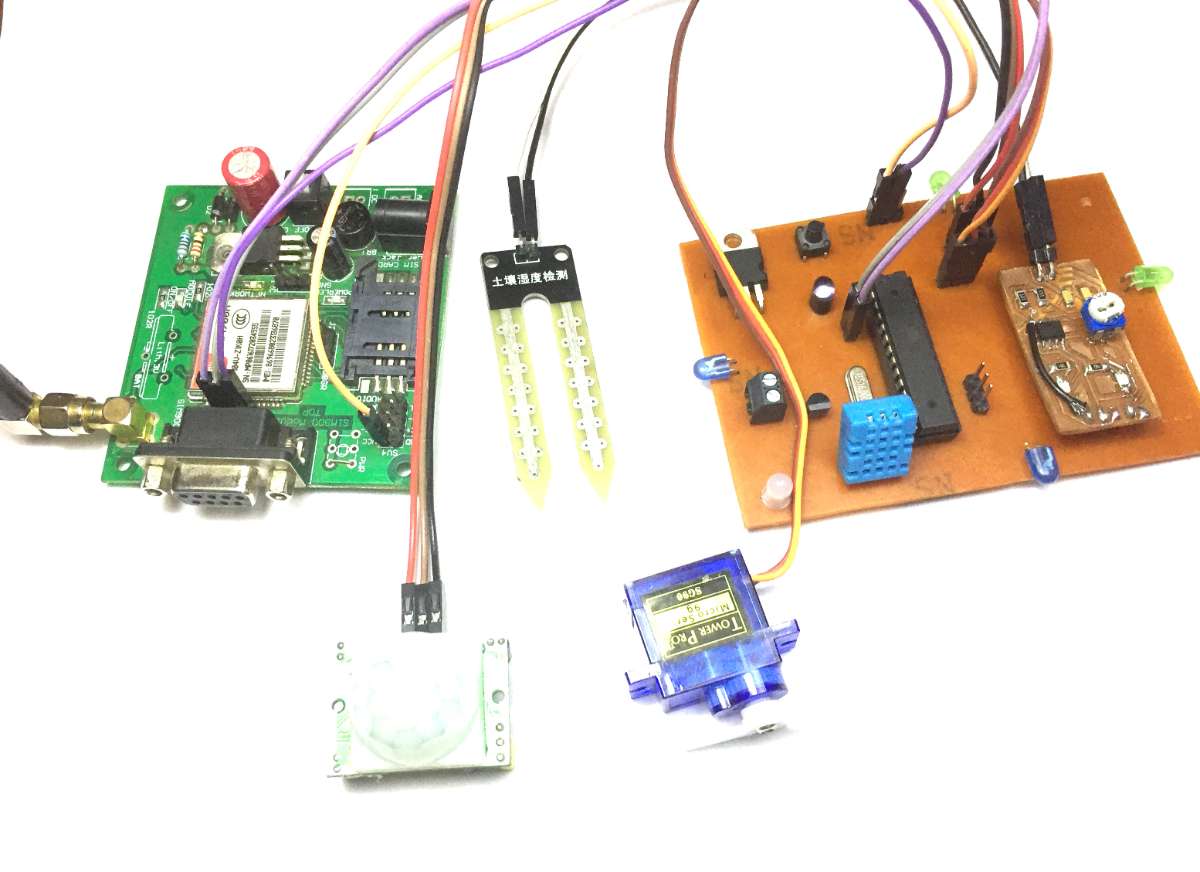

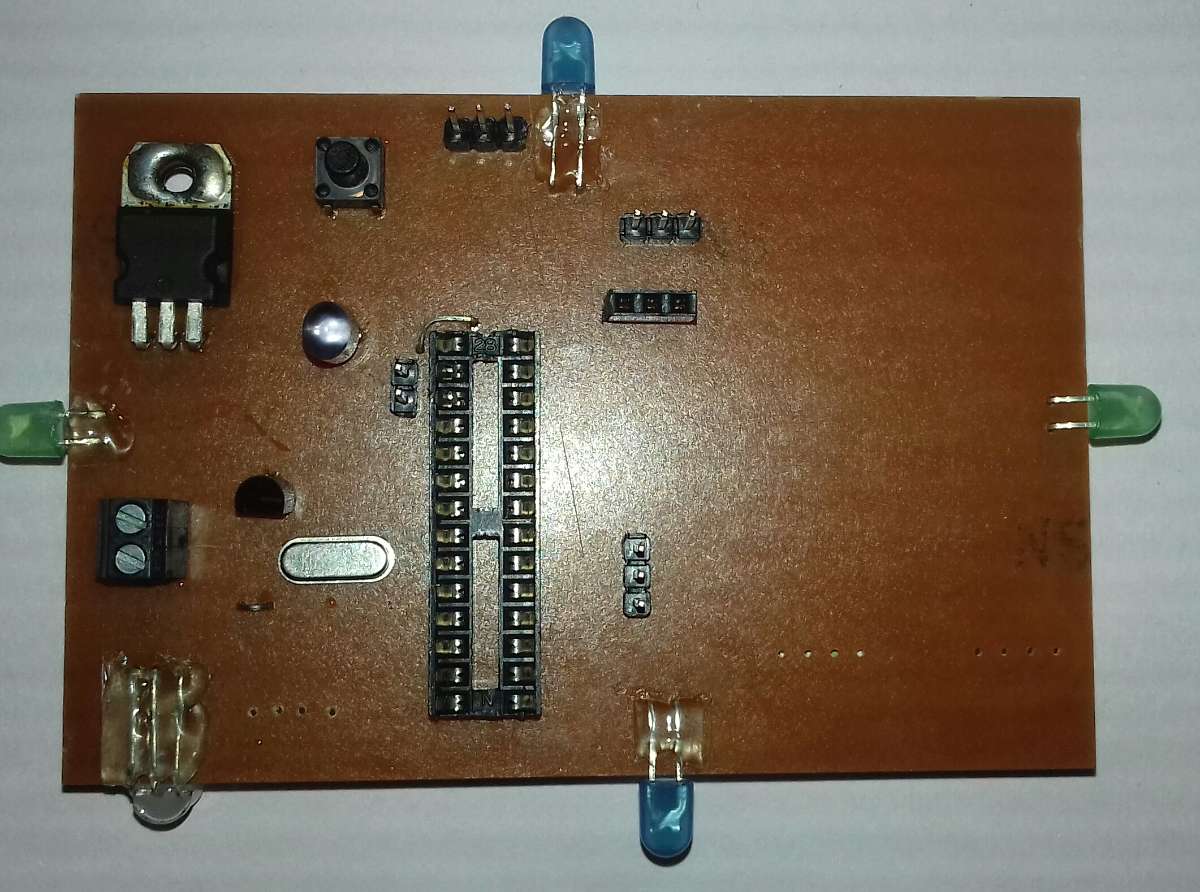

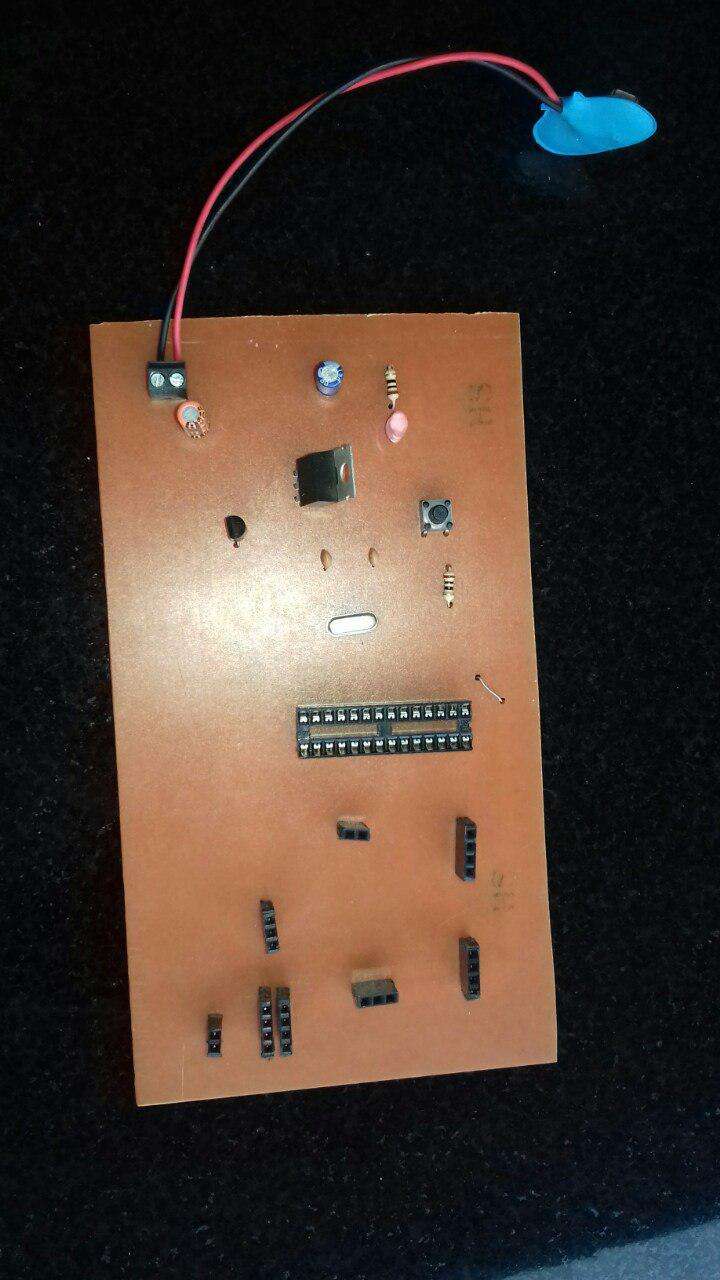

All the given below are the different prototypes of FightFire

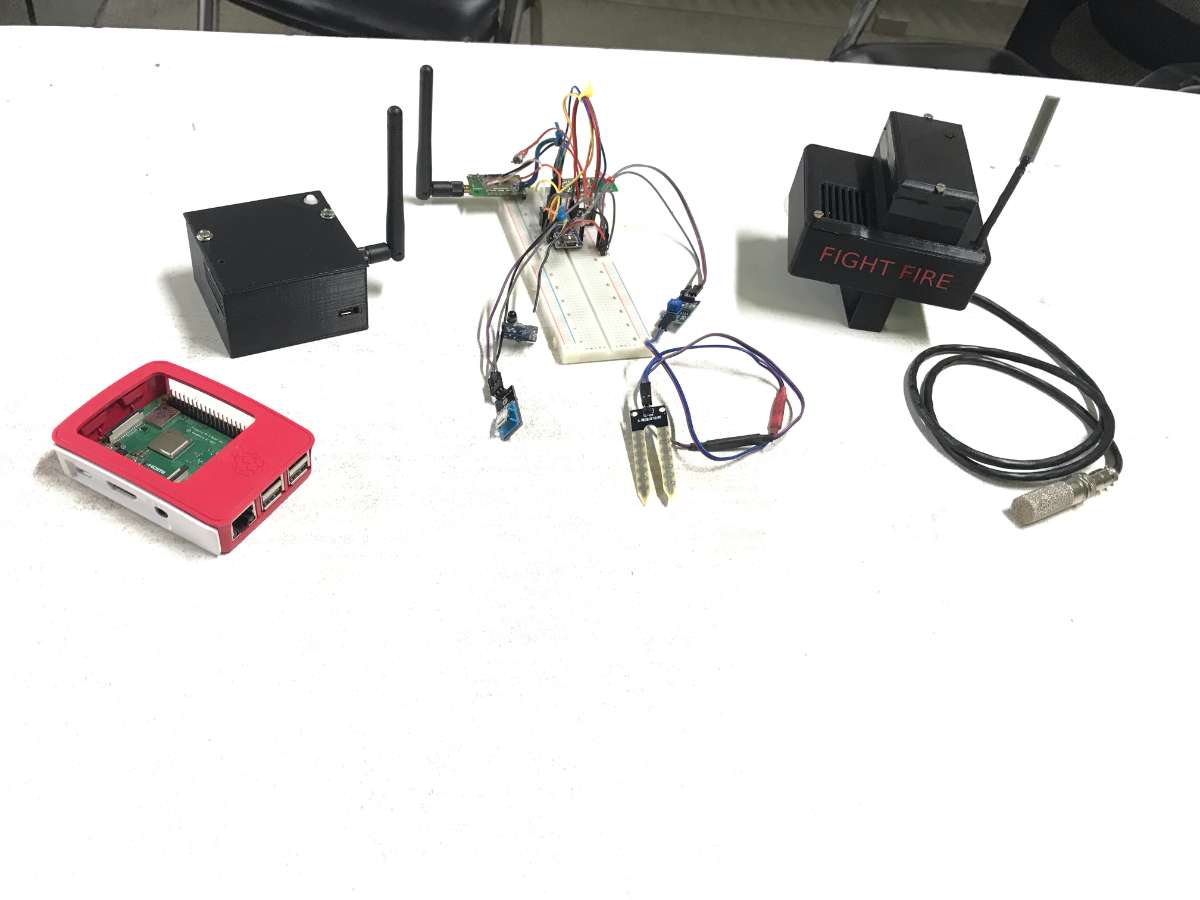

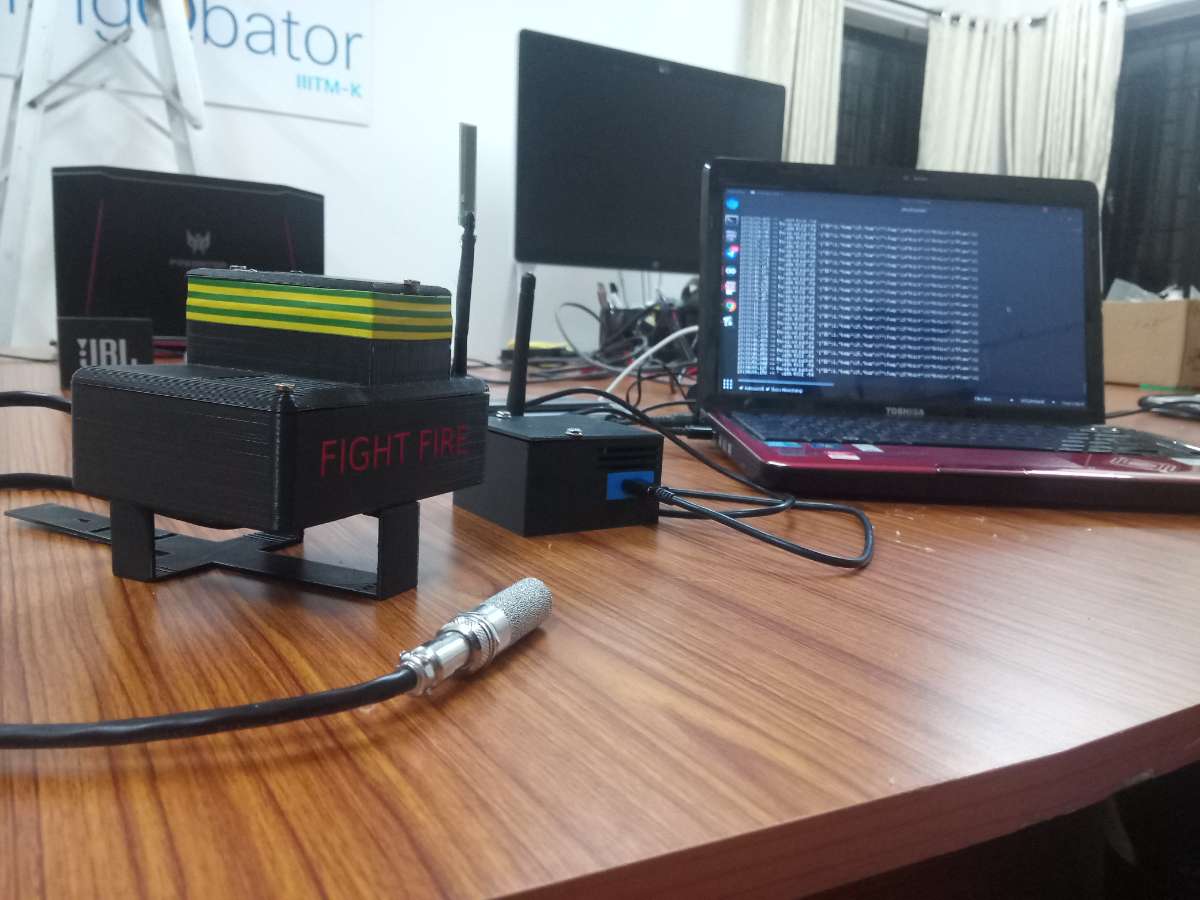

Final prototype
