Wearable health monitoring device

Published Dec 13, 2021

GPL-3.0-only

5 hours to build

Beginner

arduino

arduino ide

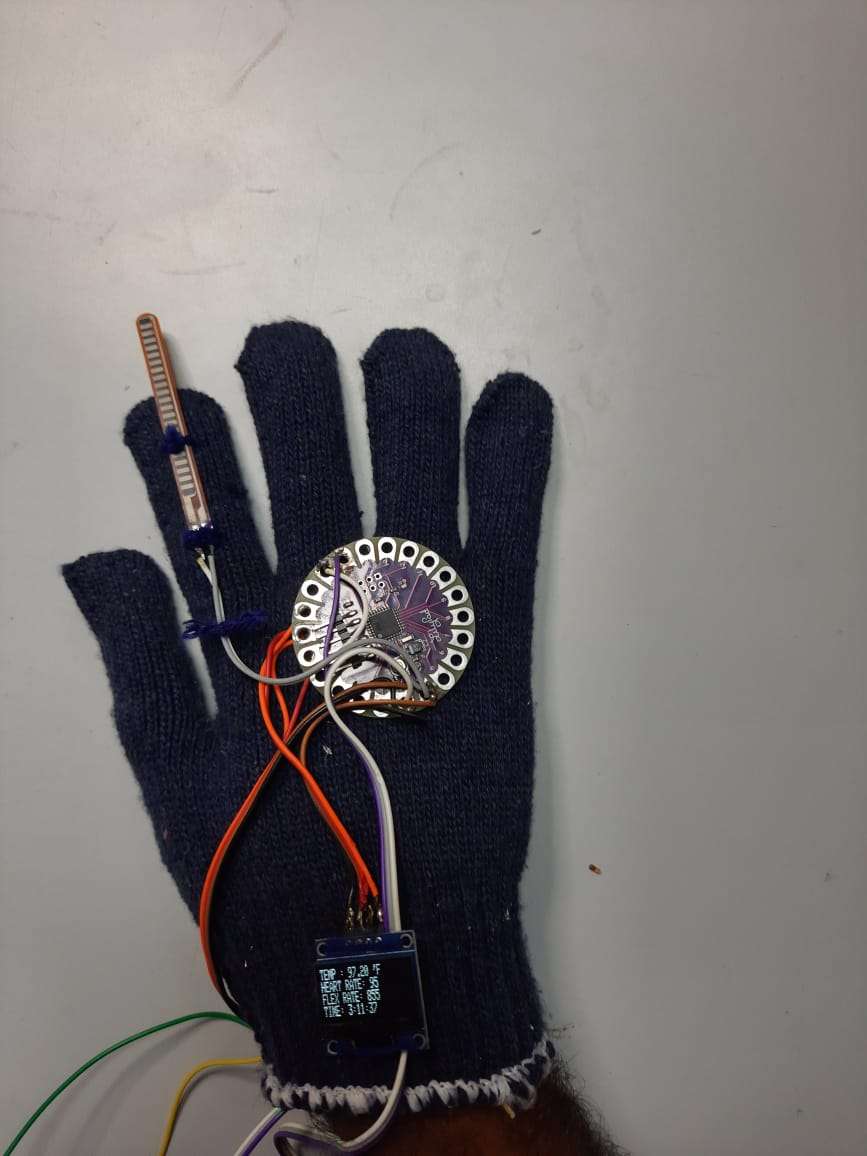

In this project, we created the wearable health monitoring device. Heart beat, temperature, flexibility of fingers and a remainder to take medicines at regular intervals can be seen through with the help of this device.

Components Used
Lilypad Arduino Lilypad Arduino	X 1
DS3231 RTC Module DS3231 RTC Module	X 1
Flex Sensor Flex Sensor	X 1
Thermistor Thermistor is a type of resistor whose resistance changes in accordance with change in temperature. It is used to measure the temperature over small range typically -100 °C to 300 °C.	X 1
Heart Rate Sensor Multiple Function Sensor Development Tools Heart Rate 9 click	X 1

Description

In this project we have proposed a system which detects the heartbeat, temperature and flexible rate of fingers and provides a time remainder to take medicines at regular interval of time. This device is designed in a way such that it can be easily wearable and it is easy to carry.

An arduino lilypad is used as a microcontroller in this project. A heart beat sensor is used to measure the heartbeat of the person. Thermistor is used to measure the temperature of the patient. A DS3231 RTC module is used to send a remainder to take the medicines at regular interval of time. A flex sensor is used to measure the flexibility of the fingers of the patient. This is useful for the persons undergoing physiotherapy.
