SMART SHOE FOR VISUALLY IMPAIRED PEOPLE

Published Aug 27, 2021
 10 hours to build
 Beginner

A smart shoe is wearable system design to provide directional information to visually impaired people. To provide smart and sensible navigation guidance to visually impaired people, the system has great potential especially when integrated with visual processing units.

display image

Components Used

Ultrasonic Module HC-SR04
Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm.
1
AK9750 Infrared-ray sensor module
AK9750 is an ultra-low power and compact IR (infrared) sensor module.
1
Buzzer 5V
Buzzer 5V
1
Arduino UNO
Arduino UNO
1
Description

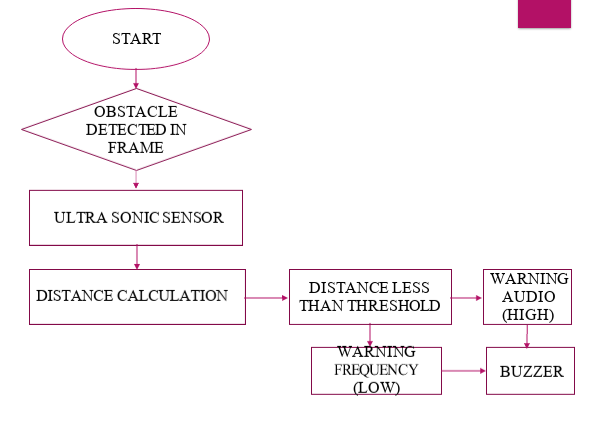

FLOW CHART

Flow chart of working





METHODOLOGY

  • When the object is detected near to the shoe and if any person coming in front it alerts them with the help of vibratory circuit and also in advancement with help of speakers or headphones that is voice command.



  • To implement, the ultrasonic sensors, Arduino microcontroller and SD card are used. Based on signals, the decision is made in Arduino to manage and give timely signals. The input string is from the ultrasonic sensors which generate high-frequency sound waves and evaluate the echo which is received back by the sensor. Sensors calculate the time interval between sending the signal and receiving the echo to determine the distance to an object. The ultrasonic sensor can measure distances in centimeters and inches.



  • When the obstacle is located in far distance sensor will detect and intimate with the low-frequency buzzer sound.When the obstacle is located in a short distance less than the sensor will detect and intimate with high-frequency buzzer sound

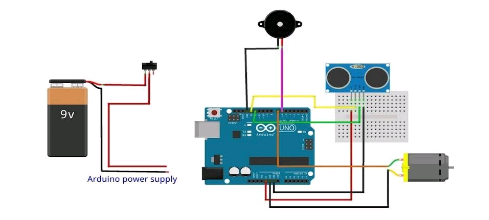

Circuit design



video link:









Codes

Downloads

SMART SHOE FOR VISUALLY IMPAIRED PEOPLE USING ARDUINO 12 Download

Institute / Organization

Bannari Amman Institute of Technology
