Smart WiFi thermostat
The best NEST thing
.jpg)

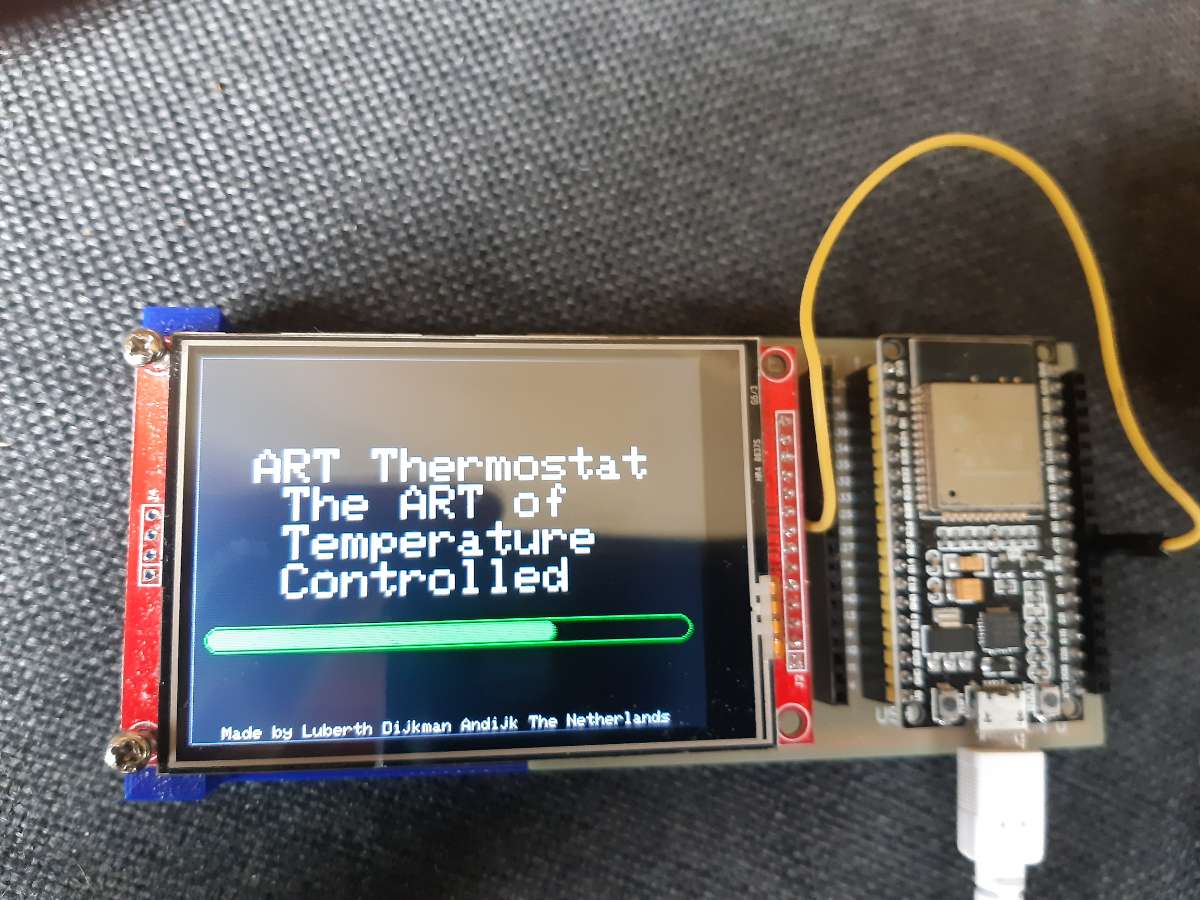

Smart ESP32 SPI touch TFT WiFi thermostat
Program in c arduino ide
Github clone is to large
Diy thermostat +/- 20 euro
PCB design and esp32 spi touch tft connections

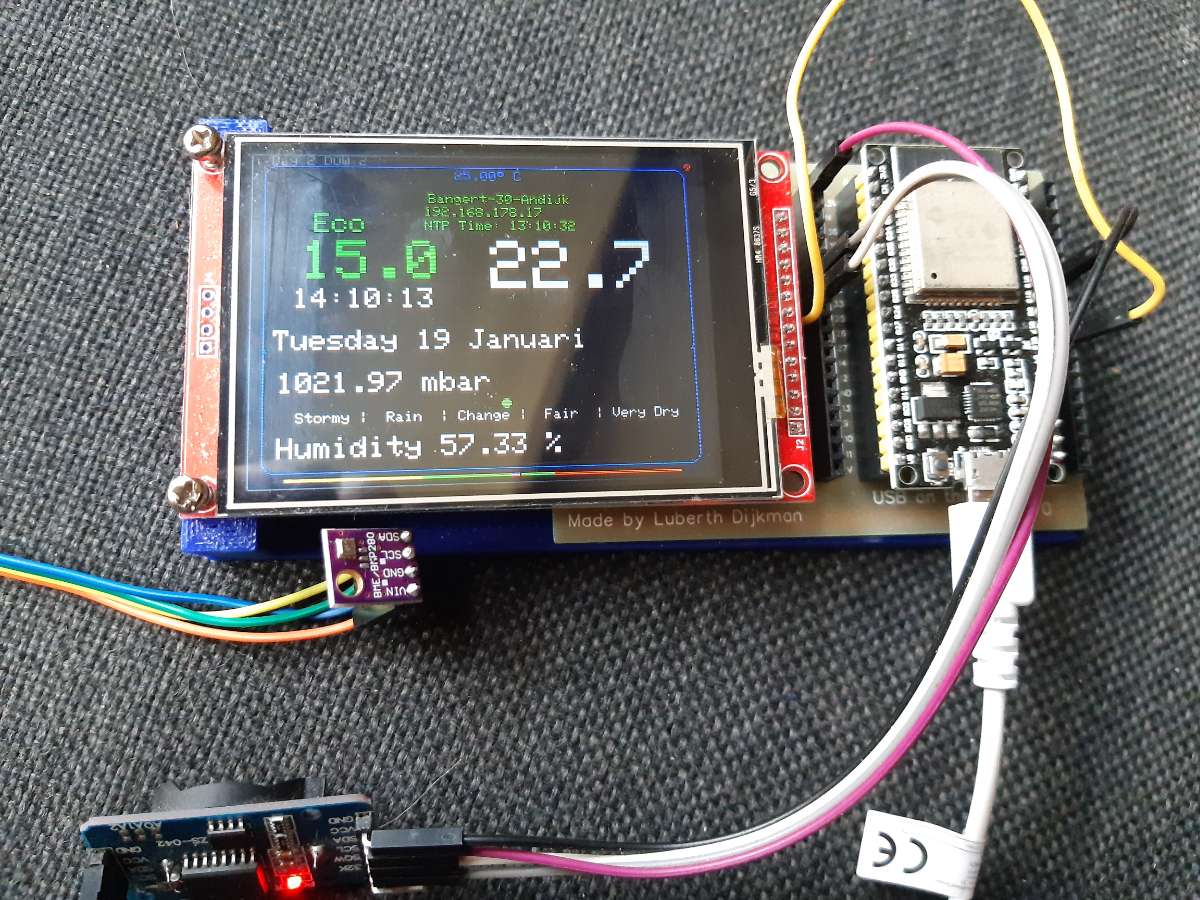

Buttons are hidden millibar weather scale and moisture comfort scale

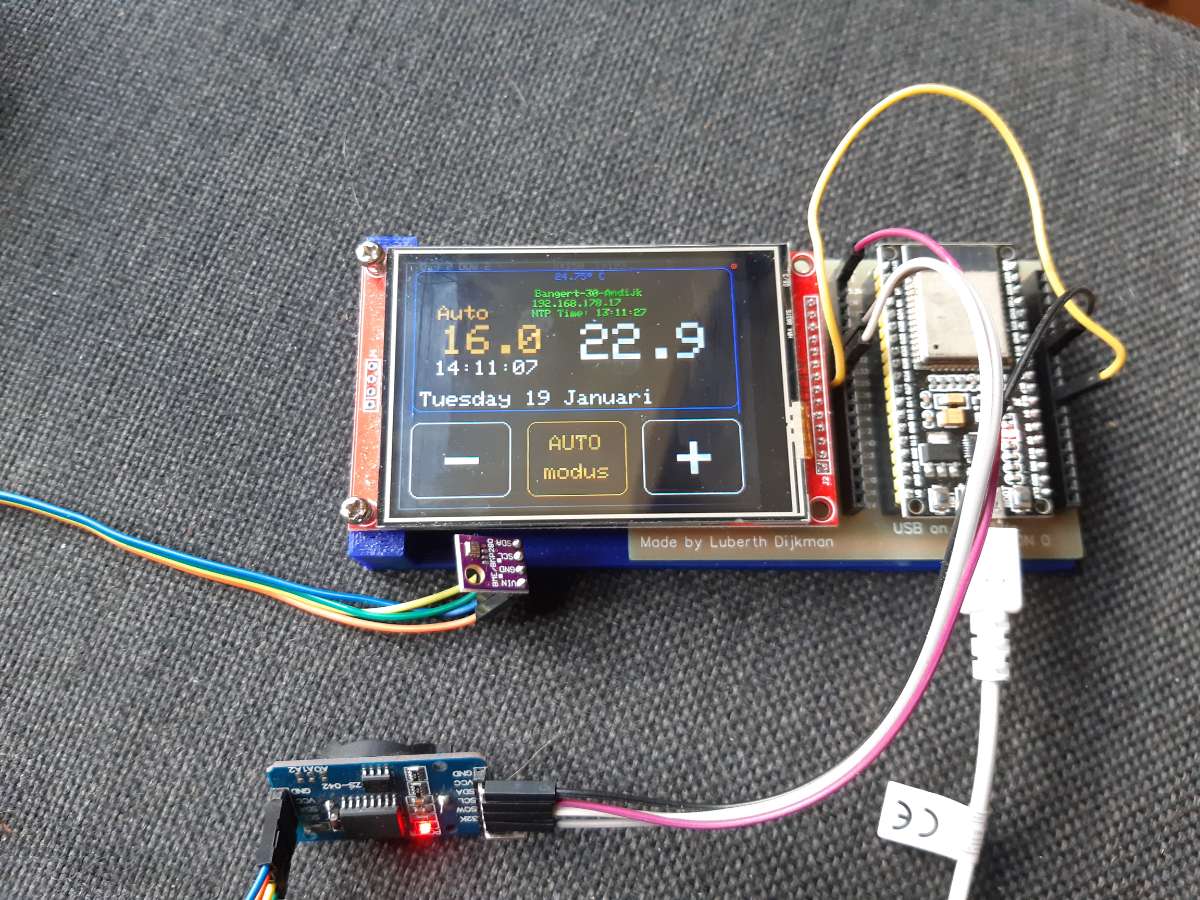

A touch on the bottom shows the buttons
Buttons active for changing mode and setpoint +/-

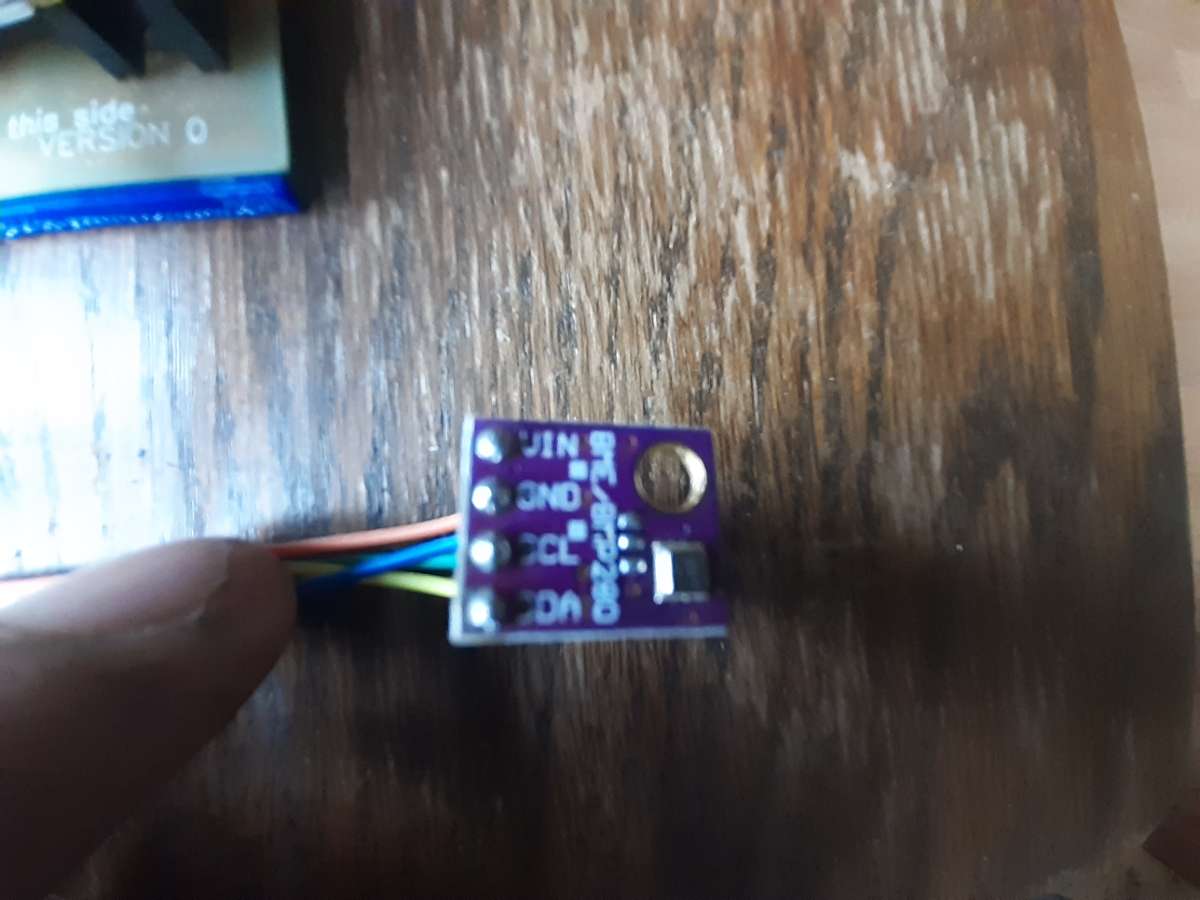

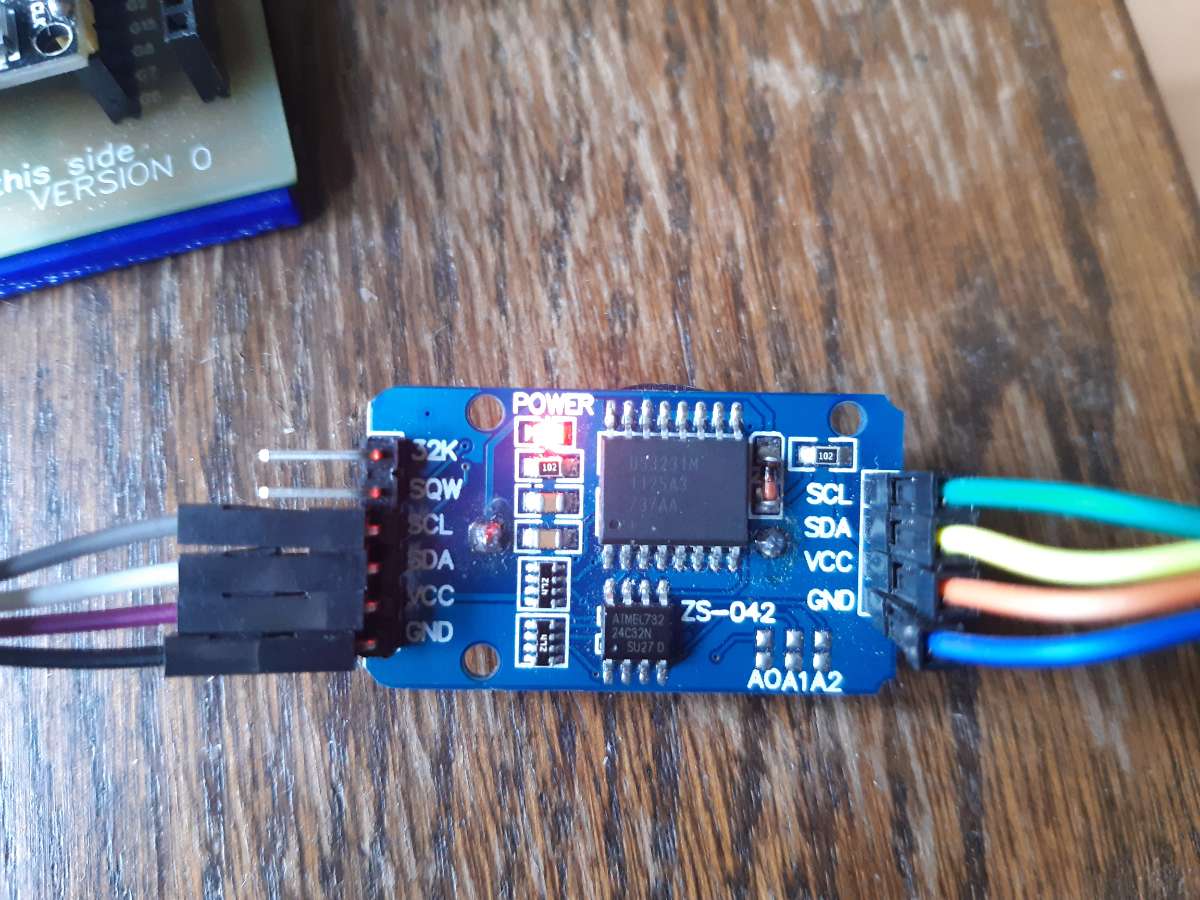

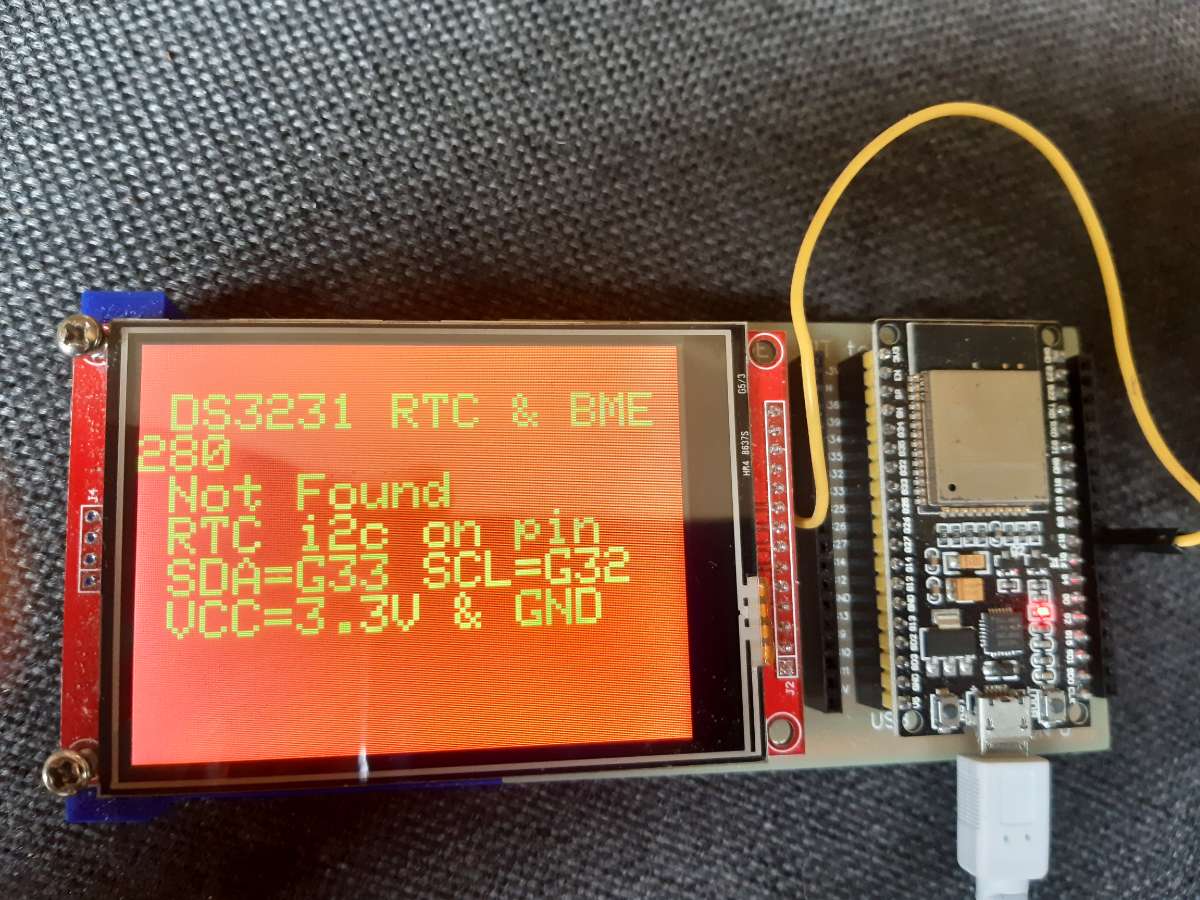

RTC=RealTimeClock for if no WiFi NTP time present DS3231 forwards i2c and power to tiny BMP280 temp / humid / barometer

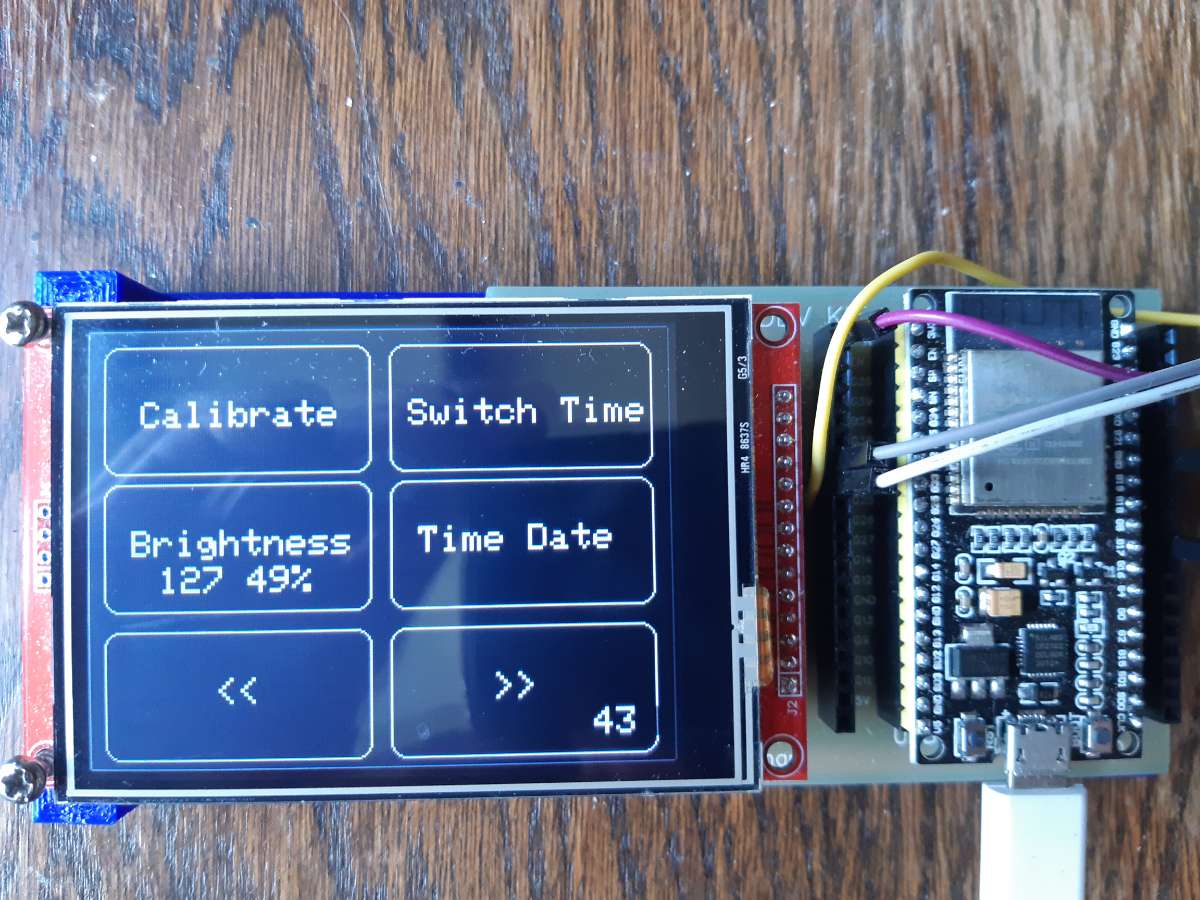

a touch on main top screen opens settings menu
Right bottom is timeout countdown exit
Second menu screen
Right bottom is timeout countdown exit

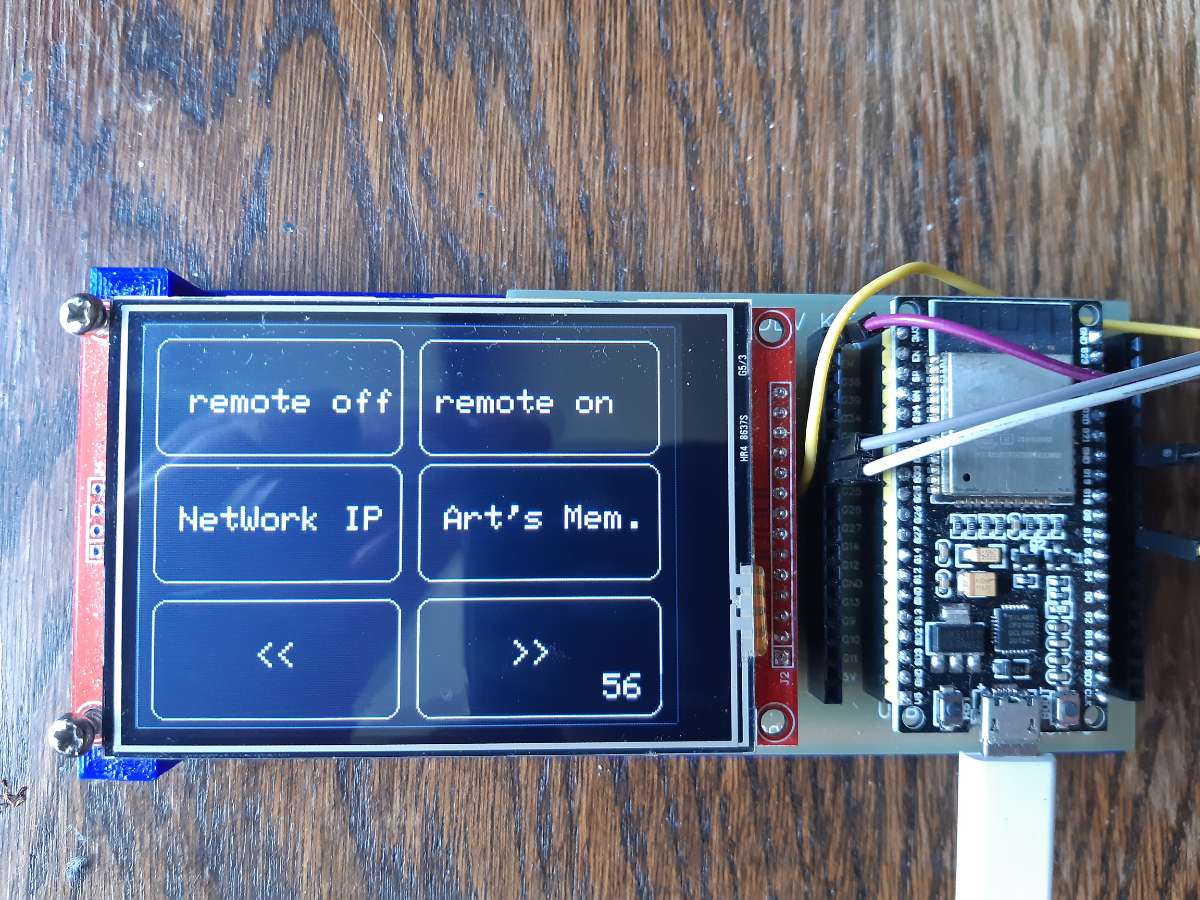

Remote on off is a esp8266 wemos D1 mini with relais remote network Light switch test
Maybe timed network wifi relais light switches in future

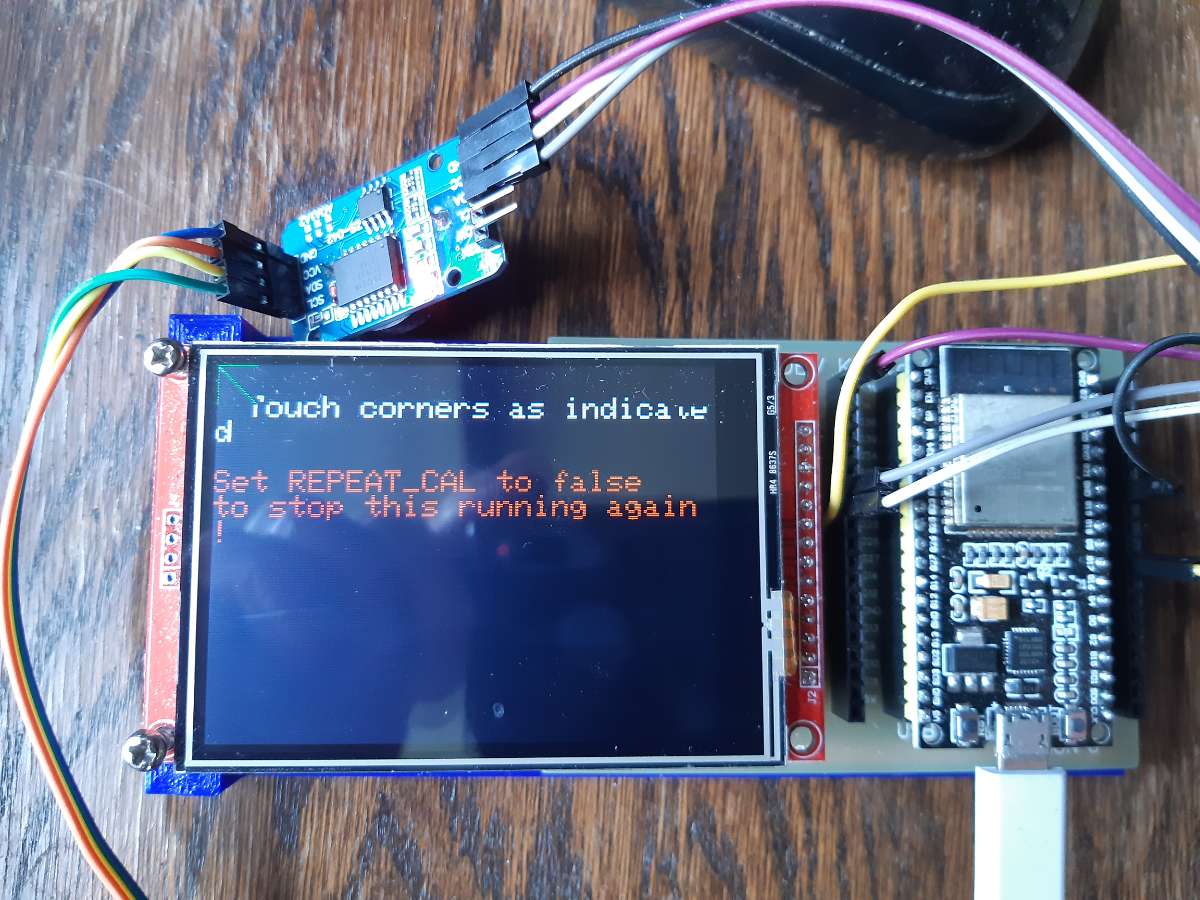

Calibrate touch screen when New at first startup once or from settings menu

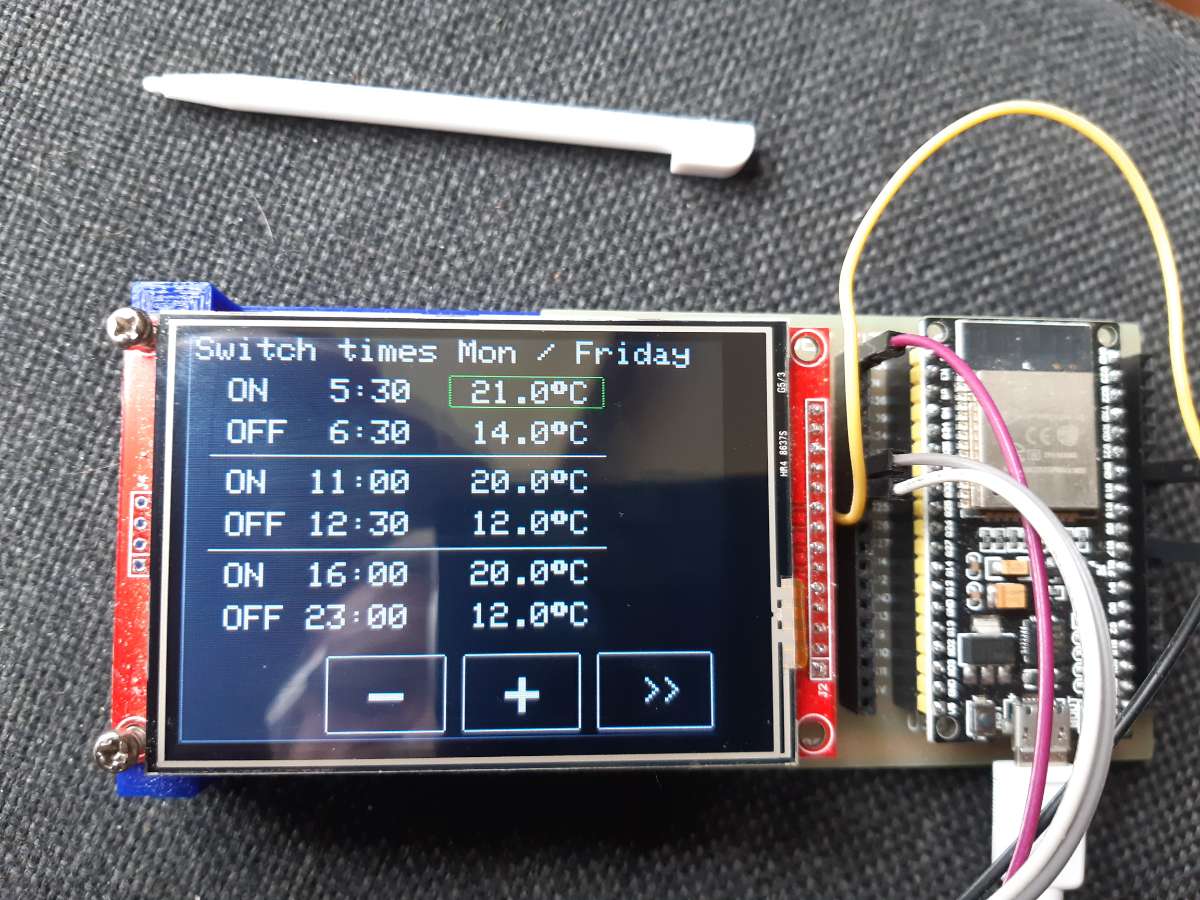

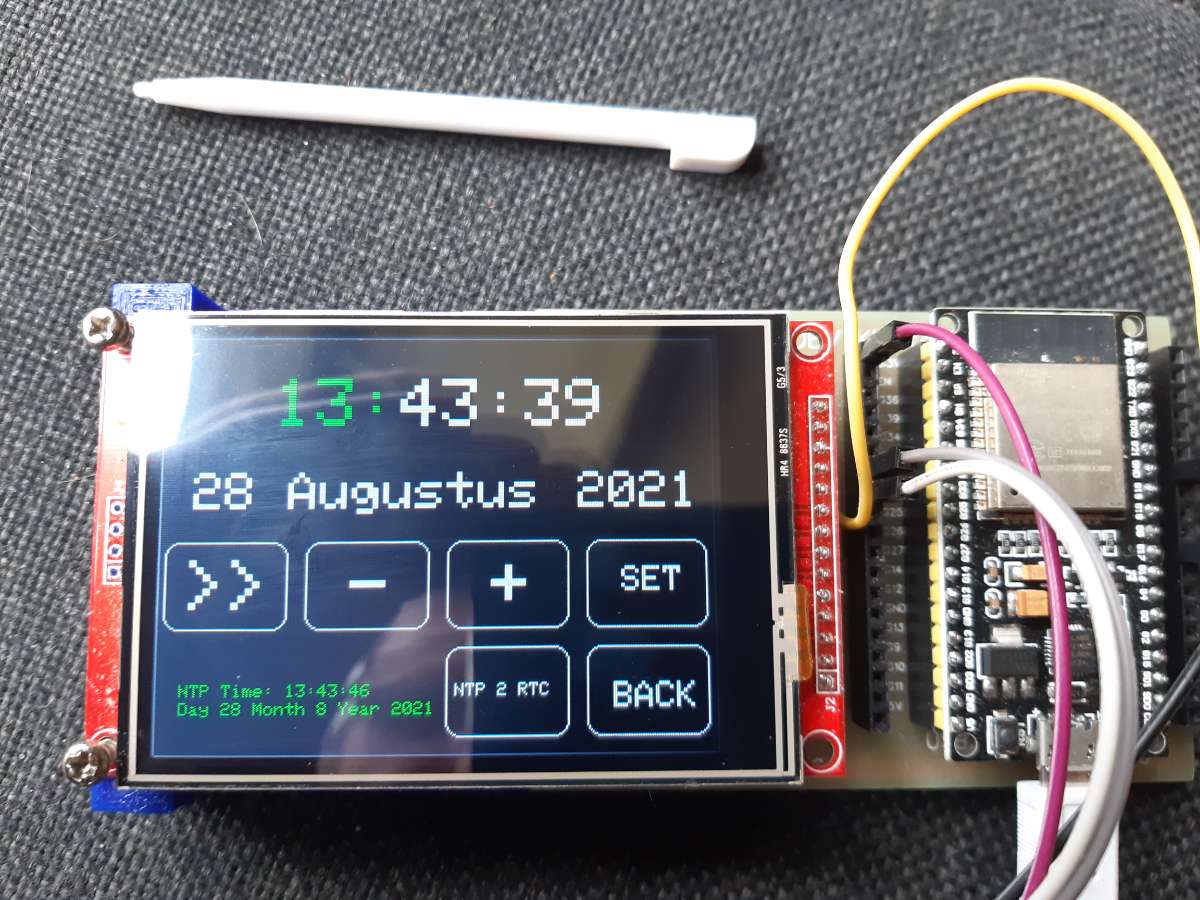

Clock thermostat time with temperature

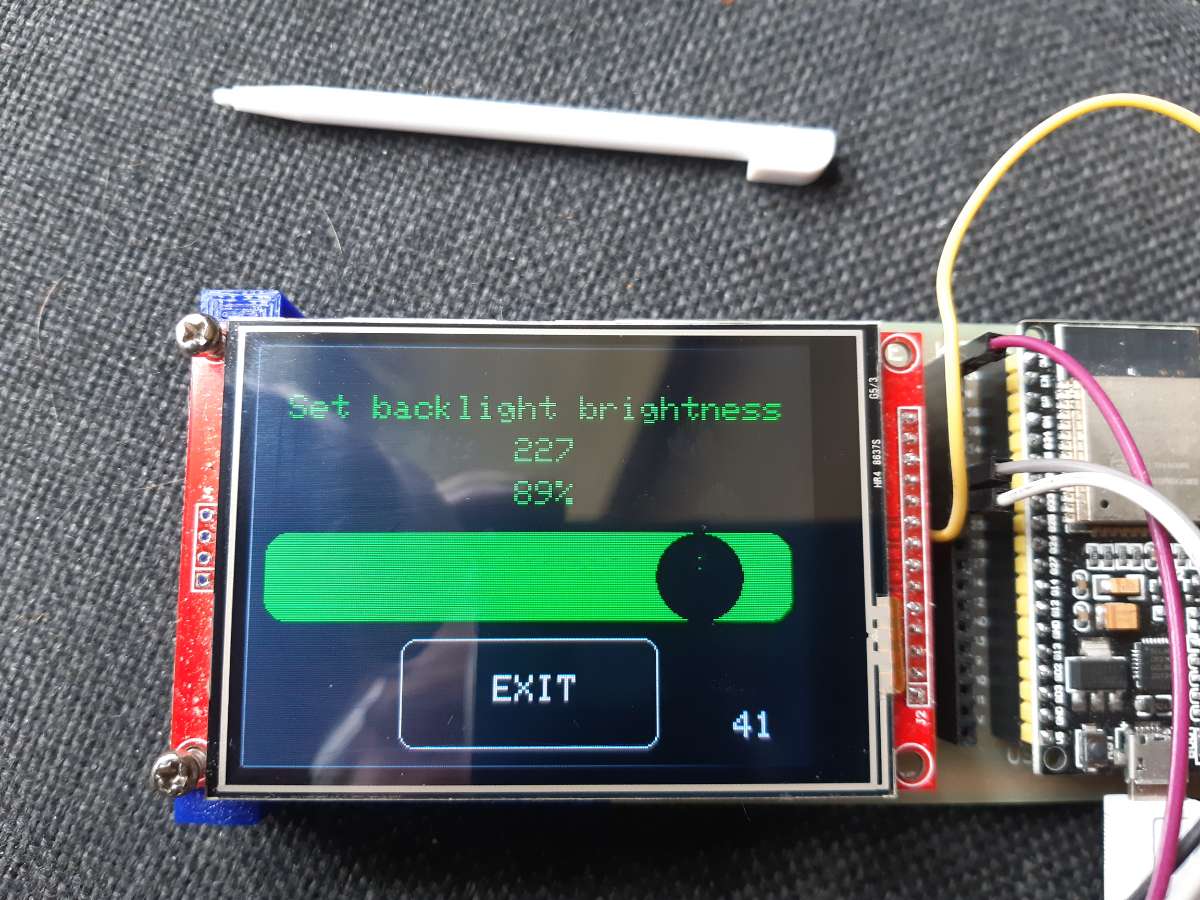

Slidebar to set the PWM for LCD backlight LED brightness

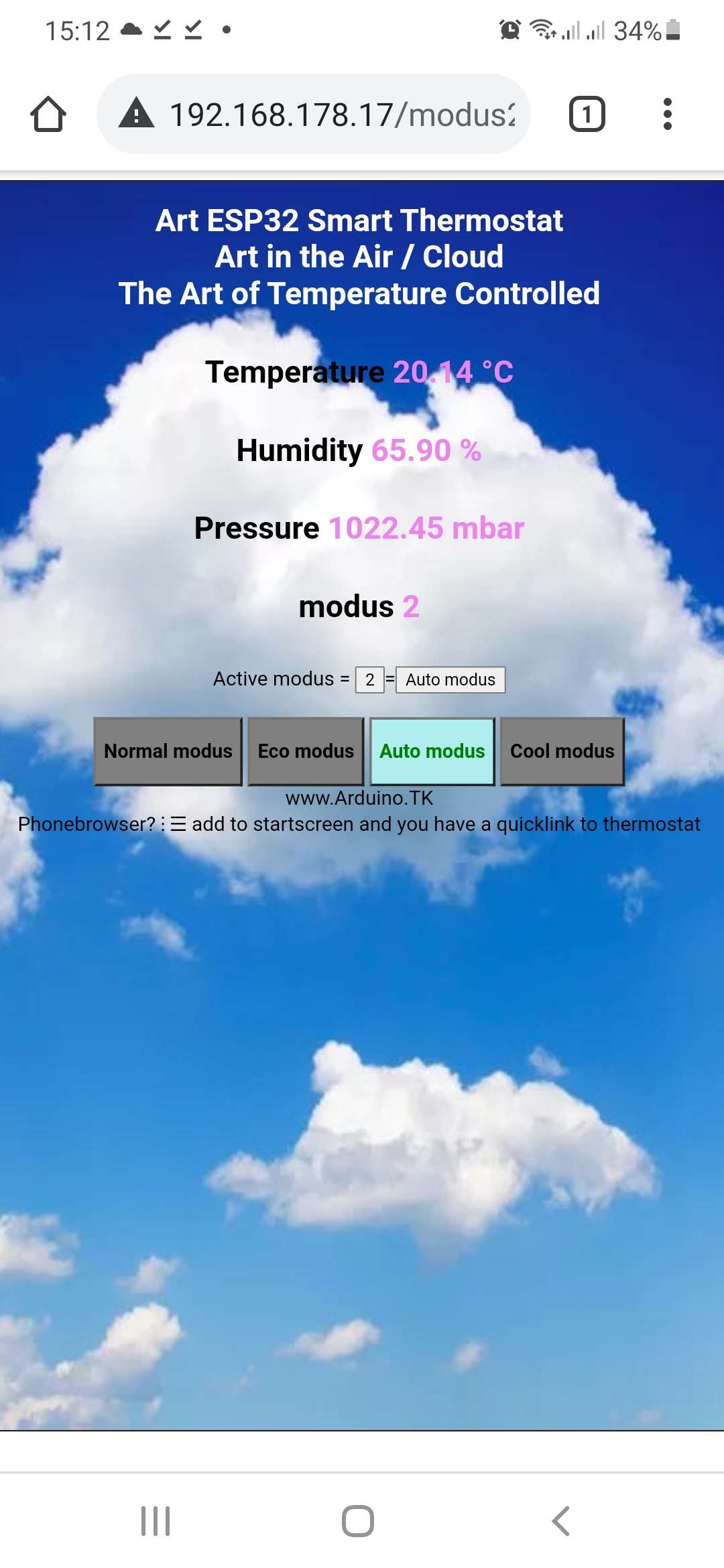

Change mode from html webpage served from esp32 (temp change not yet)
esp32 connected to WiFi router
Webpage recieved on Phone
Video on YouTube
Remote mode control over WiFi

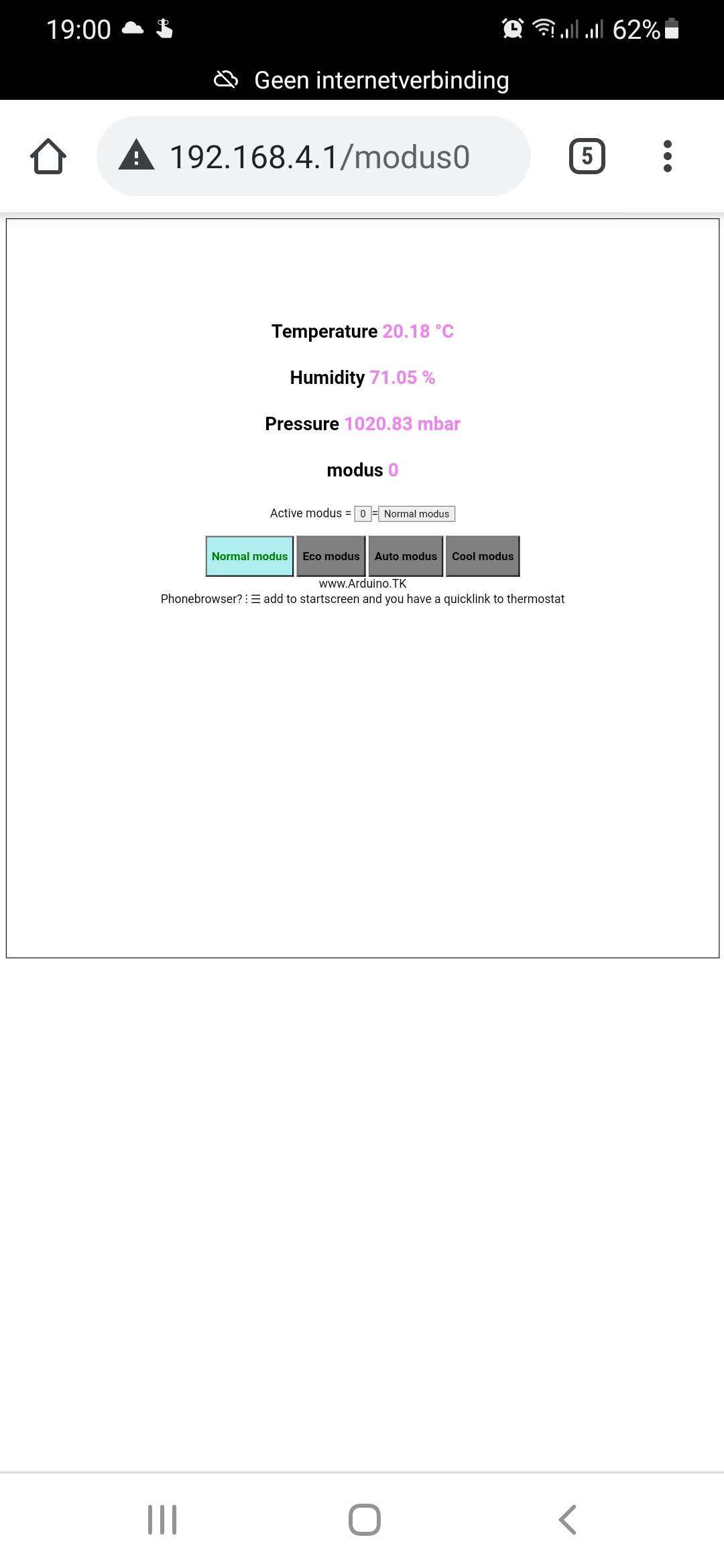

Html webpage on Phone tablet or computer
Phone and tablet change mode from thermostat
Direct Phone to esp32 connection
WIFI APSTA MODE
Next screenshot not via WiFi router
Should enter WiFi STA station mode logins settings in AP=accesspoint mode
AP is direct connection Phone to ESP32
STA is ESP32 connected to WiFi router
STA For local network connect
or global connect if forwarded in router
ART needs Your help!? ;-)
https://m.facebook.com/groups/2643123052617990

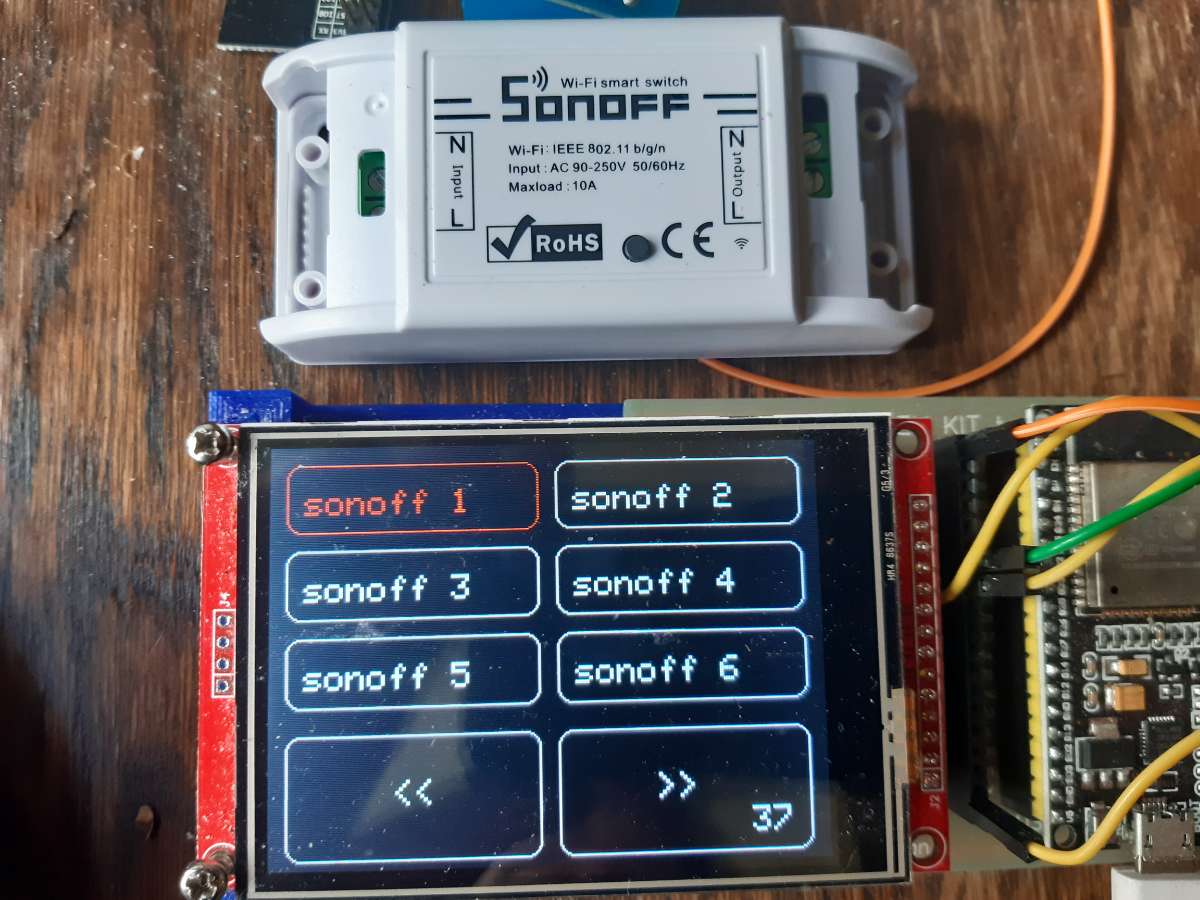

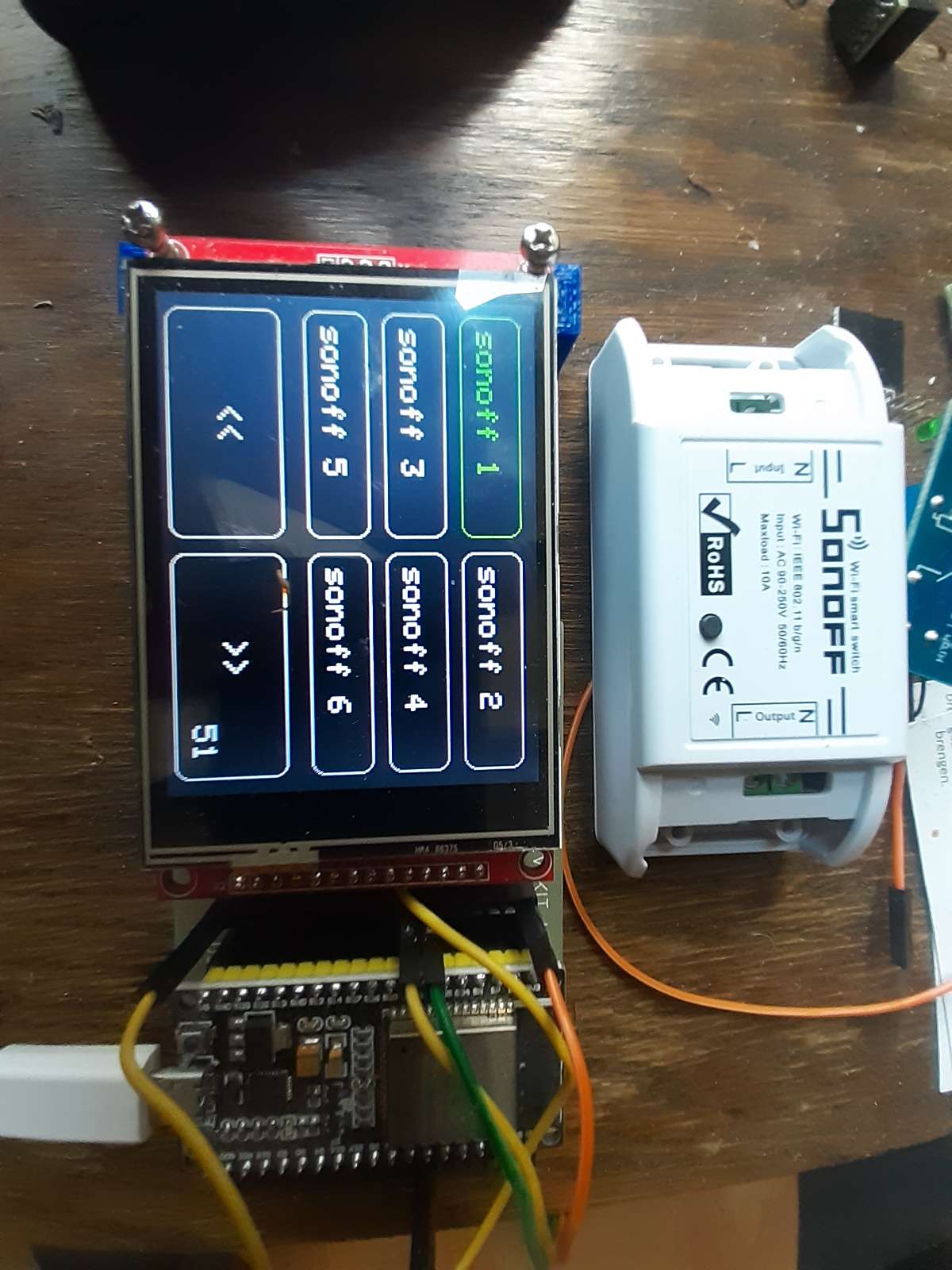

Control reprogrammed sonoff wifi switch relais from Art's touch screen
And want to make a time control for the wifi switches in Art's program
And you can control the wifi switches also from any other HMI network html page
Red button indicating that Art cannot get a wifi relais status value from sonoff relais
Http://sonoffadress/value should result in 0 or 1
If not recieved =》 red button

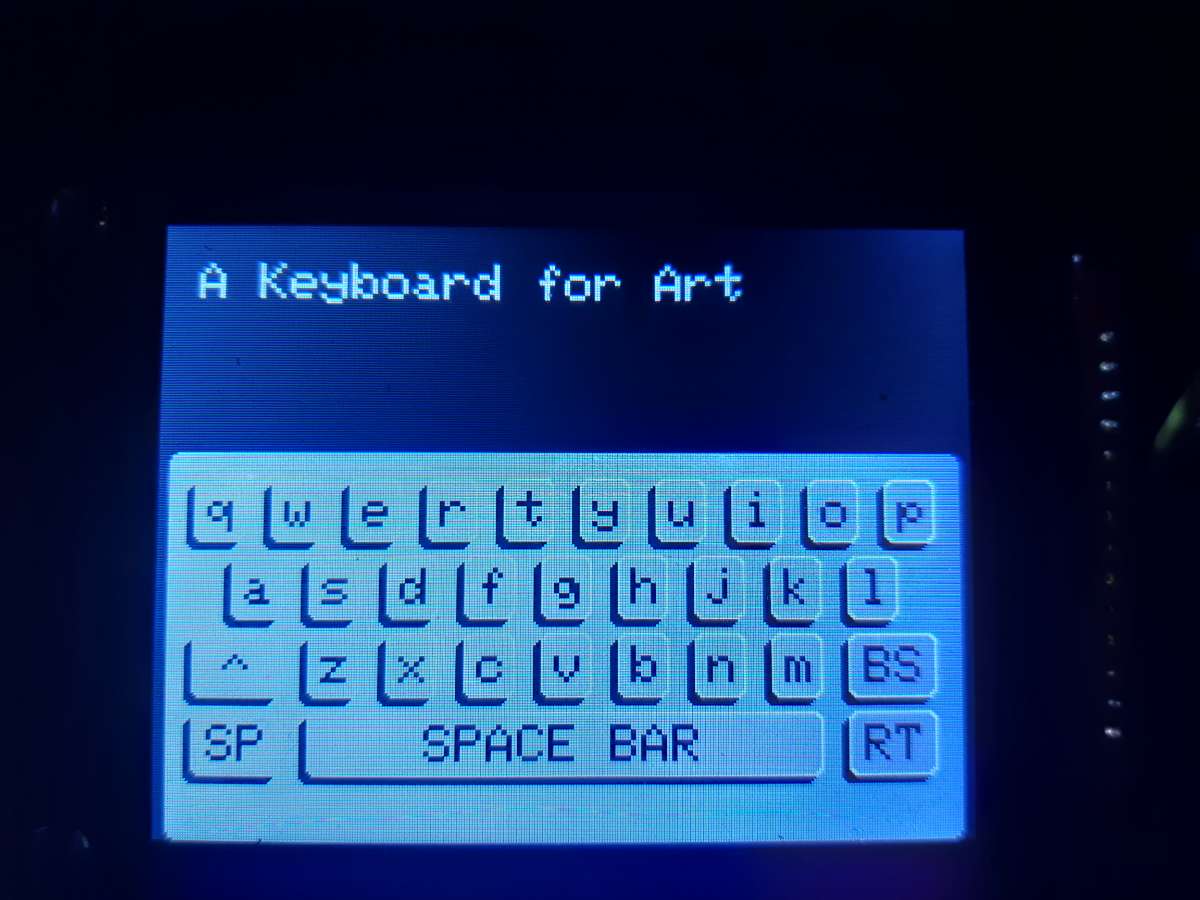

Trying to get a virtual touch keyboard ESP32 running
ESP TFT touch keyboard test
ESP32 TFT touch keyboard in future for changing button names and wifi remote esp/sonoff switches url's

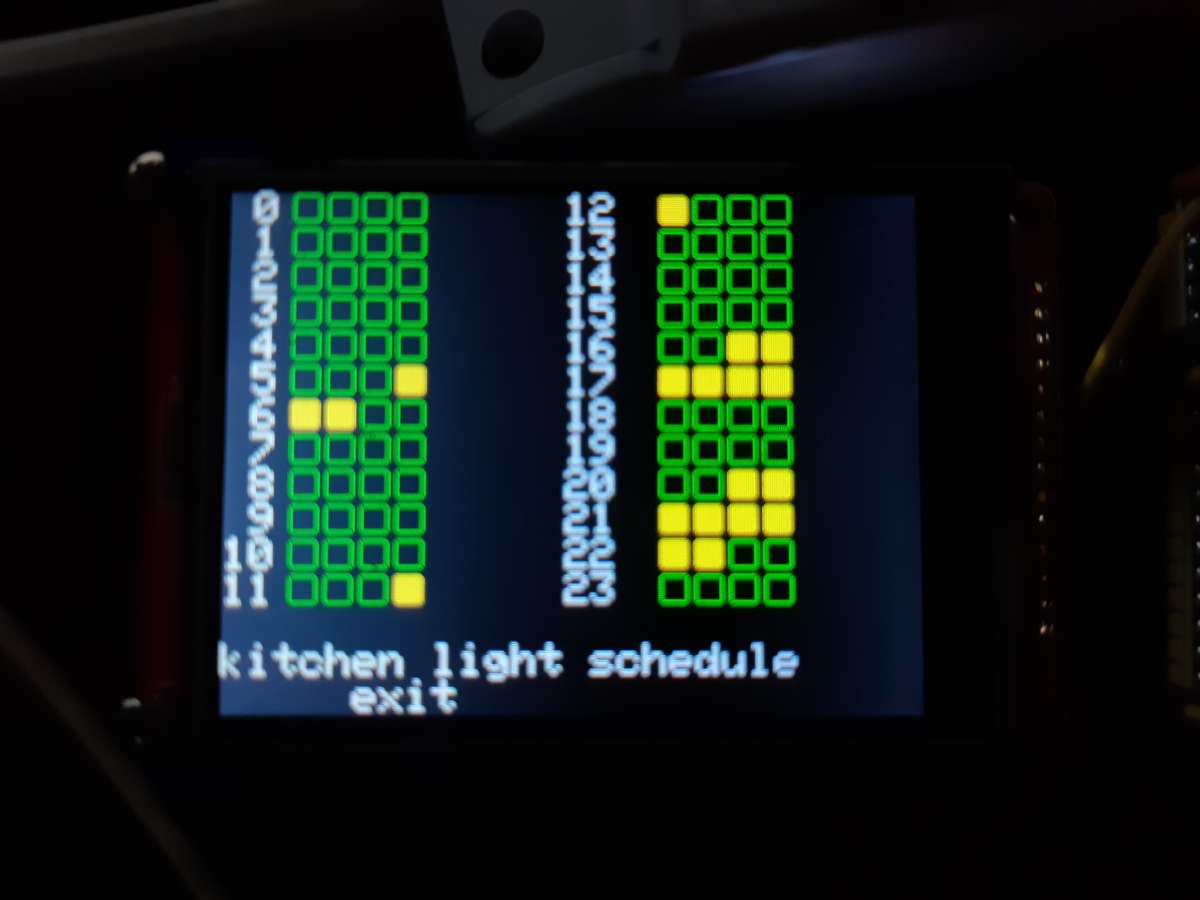

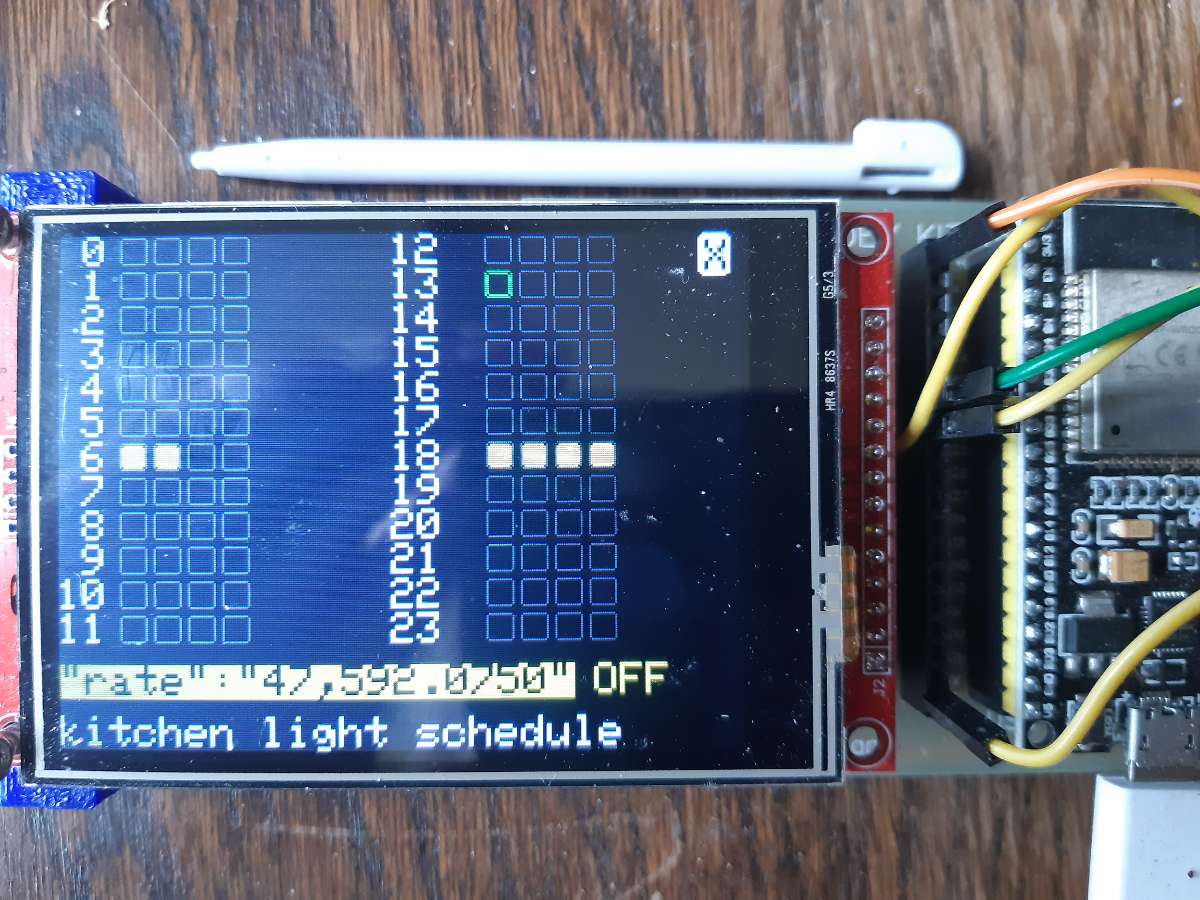

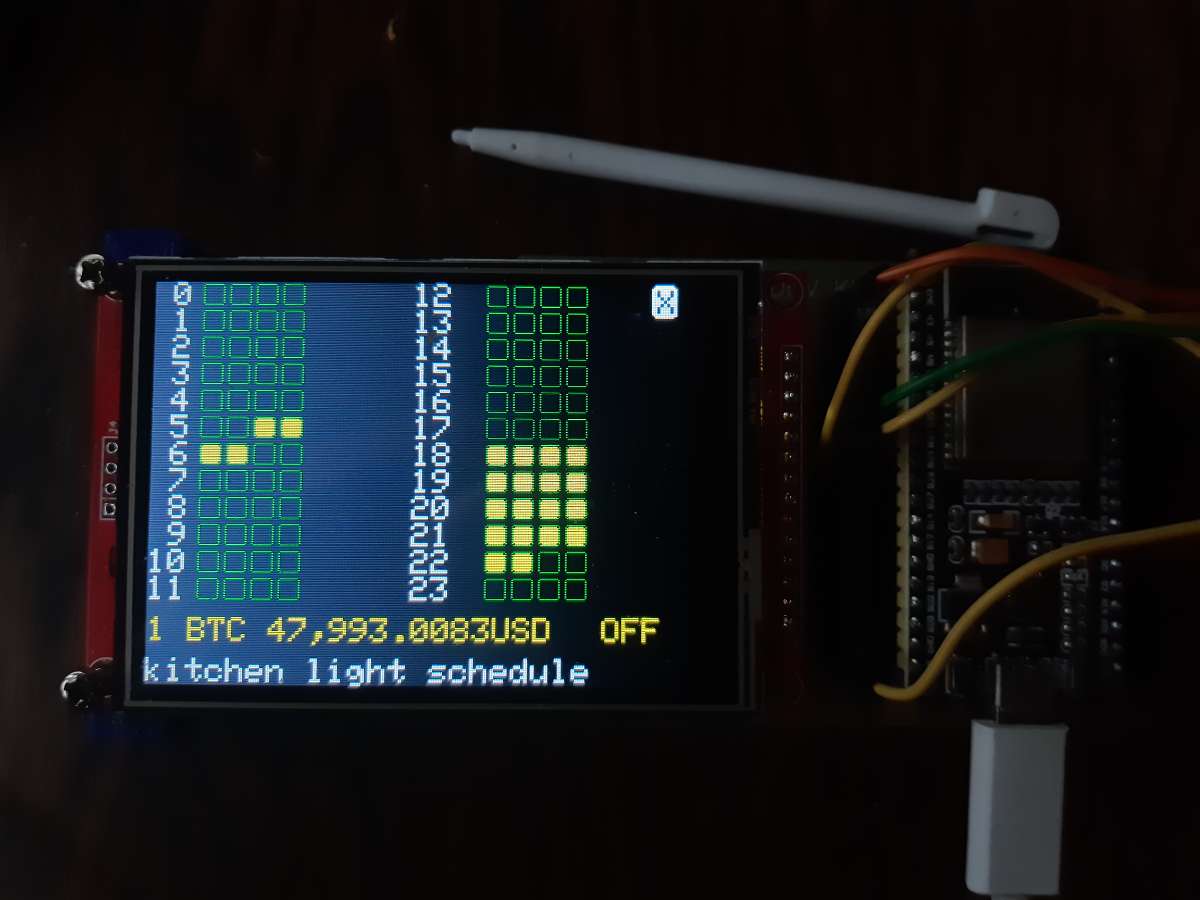

Arduino schedule timed lights
Arduino timed light schedule
Smart Art Bitcoin ticker, buy low sell high ;-)
Playing with mdns between 2 ESP
Http://kitchen.local is easy to find
Better as ip search in router or fing app
Google why does android chrome browser not support mdns?!
Apple saphari does! :-o

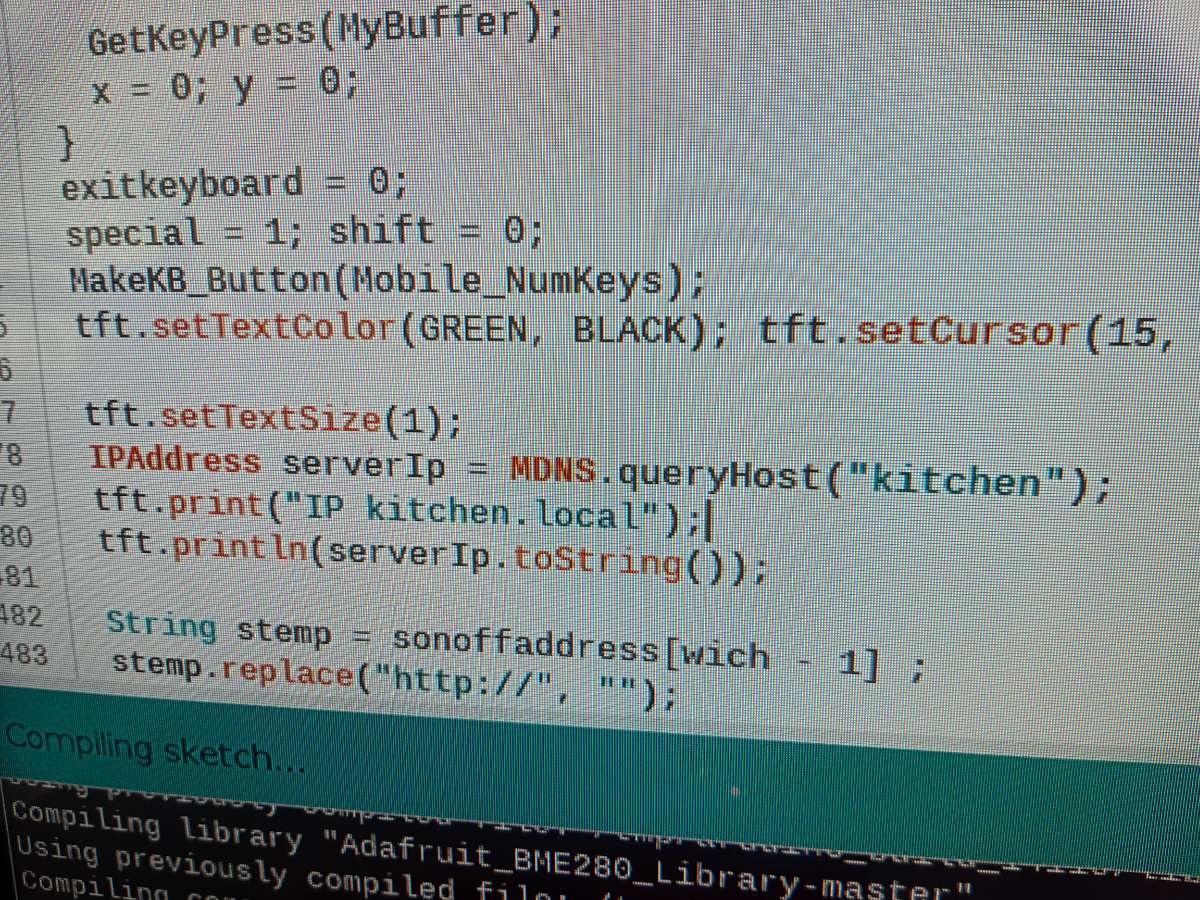

Art does understand a bit of mdns

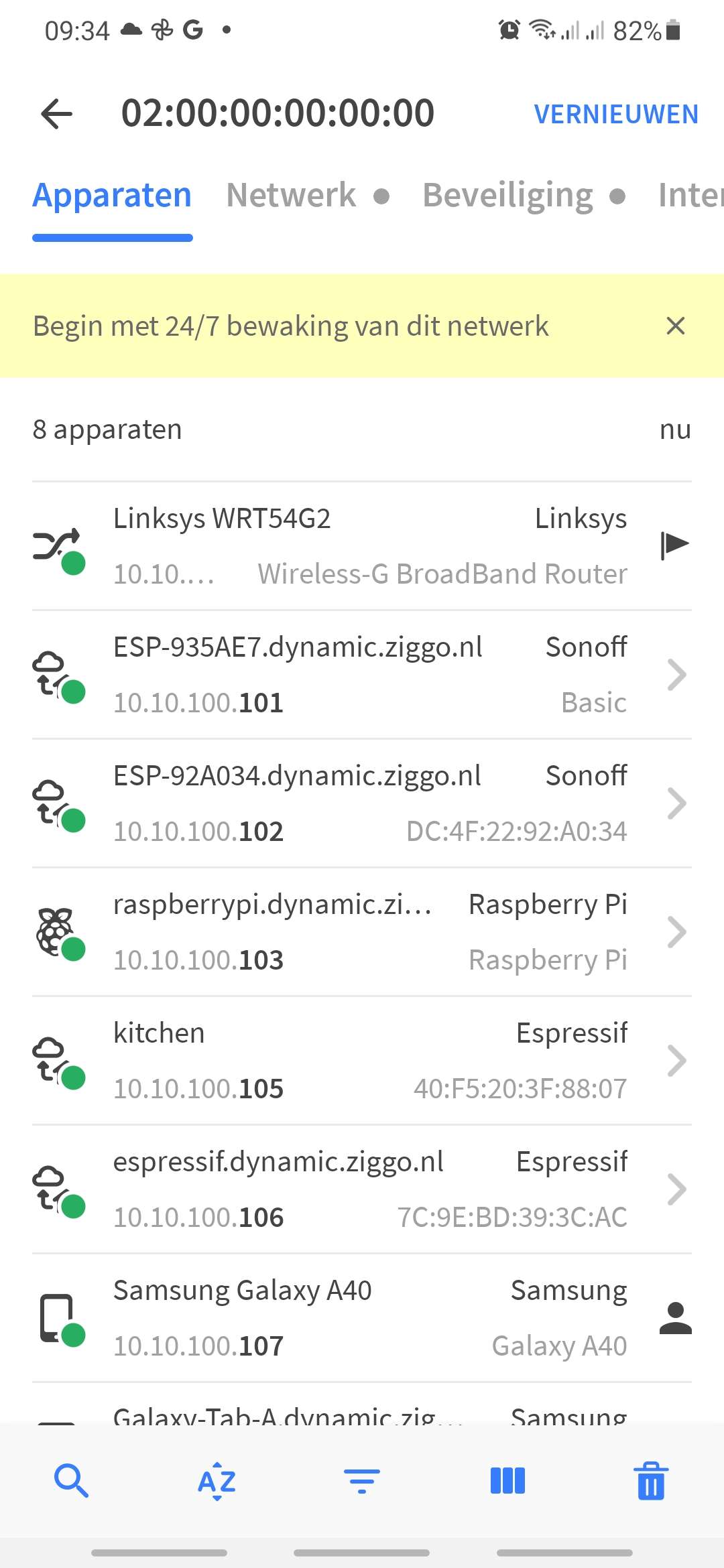

It shows the ip for http://kitchen.local
Join Art!
https://m.facebook.com/groups/esp32smartthermostat
Lets make Art better
