Programmed gas leakage regulator gadget

Published Sep 04, 2021
 72 hours to build
 Advanced

This model will help you for when of gas spillage. It just will not make you mindful of the signal however it will likewise save your home and different homes or industrial facilities from a horrendous fire.

display image

Components Used

LCD16x2 Display
LCD16x2 Display
1
NJU72501 Piezo-Sounded Driver
NJU72501 is a switching driver with multi-mode charge pump for piezo-sounder.
1
CCS811 Digital Gas Sensor
CCS811 is a digital gas sensor used for indoor air quality monitoring.
1
Breadboard
Breadboard
2
VNH5019 H-Bridge Motor Driver
VNH5019A-E is a full H-bridge motor driver for a wide range of automotive applications.
1
LED 5mm
LED 5mm
3
Ultrasonic Module HC-SR04
Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm.
1
Arduino UNO
Arduino UNO
2
Resistor 220 Ohms
Metal Film Resistors - Through Hole 220 OHM 1/4W 1%
1
Resistor 4.7 kOhms
Metal Film Resistors - Through Hole
1
Resistor 1 kOhms
Metal Film Resistors - Through Hole 1K ohm 1/4W 1%
2
DC Gearbox Motor
Adafruit Accessories DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC
1
Resistor 165 ohm
Restricts the flow of electricity in a circuit, reducing the voltage and current as a result
1
Description

Introduction:-

         Imagine for a second that you have to go out for three to four days.  Before leaving the house, you packed all your belongings and closed all the doors and windows of the house, and inadvertently turned off the gas button from you or you forgot to turn it off. Now you are on a journey, at such times you are engrossed in your happiness, but there is a huge gas leak in the house.





    Even a small fire in such a situation can cause a huge explosion in the house. So how to handle such a situation? How to save your home?





         If there is a big explosion, nearby houses may also have a problem, so how to alert them?  If this problem occurs in the industry then how to save machinery?



         And the answer to many such questions lies with this small device.



Benifits:-



       When you have a gas detection system, you can monitor the amount of gases in your environment. Because of this, you can tell when there is a higher chance of poisoning, explosion, fire or asphyxiation

      Gas detectors sense gases that humans cannot smell or see, and are an integral line of defense for any business. In the event of a gas or chemical leak, detectors also allow you to contact any relevant emergency response teams in a timely fashion.



Working:-



       Its working is very simple. If there is a gas leak, then the gas sensor will d-tech it and the gas sensor will give a digital signal to the LED display. As soon as the LED display shows a warning, the buzzer vibrates loudly. The ultrasonic distance sensor connected to the second Arduino will be activated. When the buzzer vibrates, his voice will wake up the neighbors and they will run towards the house. In such a situation is also the risk of their lives. In such conditions, they even come in front of the house or the range of ultrasonic distance sensors and stop for a moment.





       The DC motor connected to the ultrasonic distance sensor will be activated and the windows in the house will be open. The DC motor will be joint to the windows in the house. The windows will open as soon as the DC motor starts and gas flows out through the window. This way the gas leak in the house will stop. The risk of fire from the house will be avoided.



Steps of working:-





1.

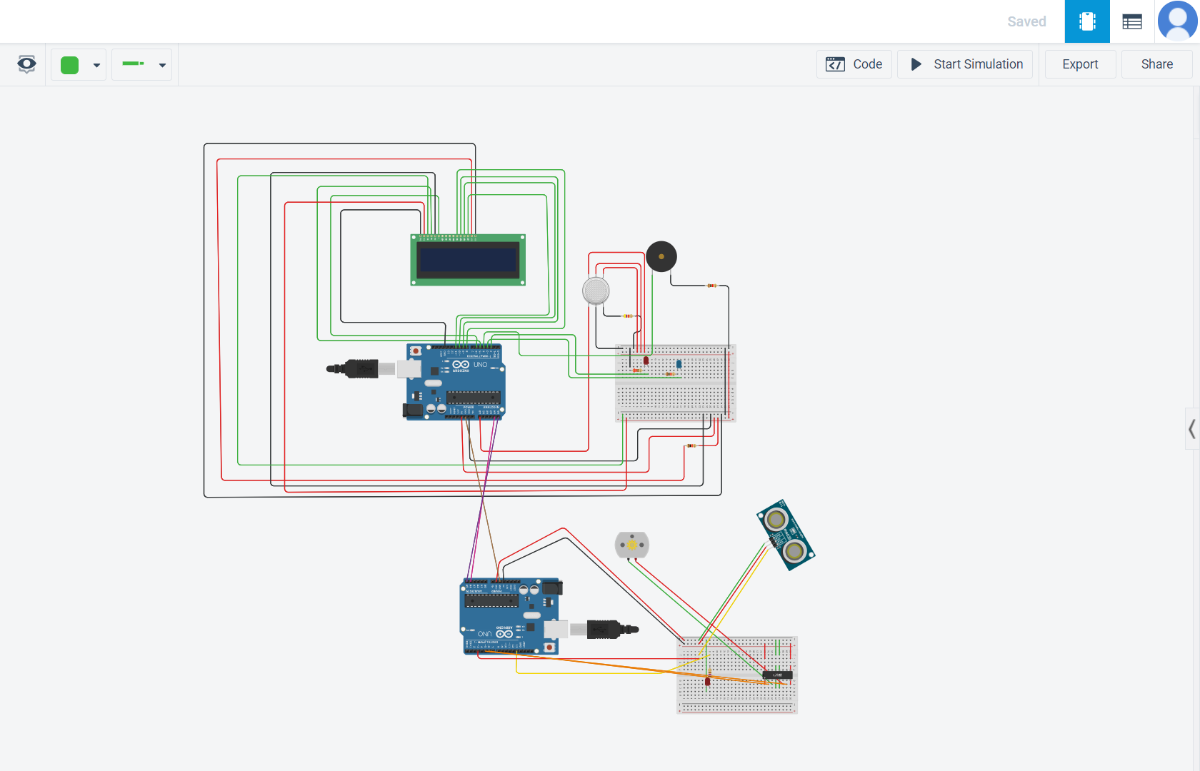

1st step (model)

2.

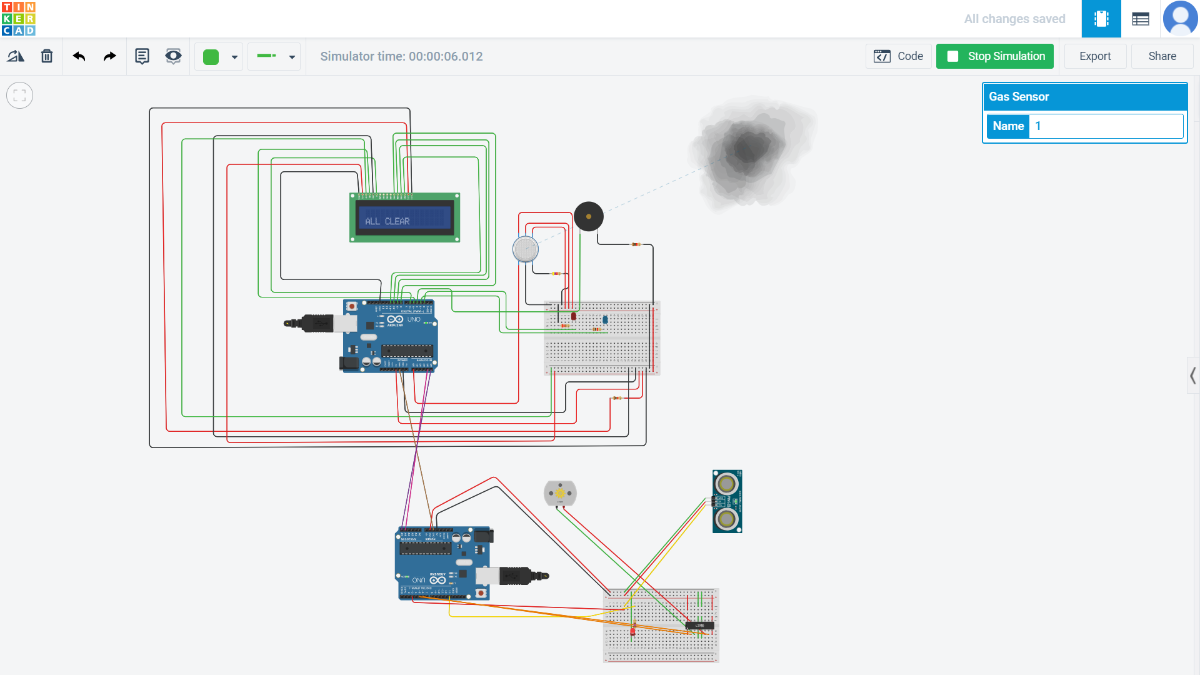

2nd step ( gas leakage)

3.

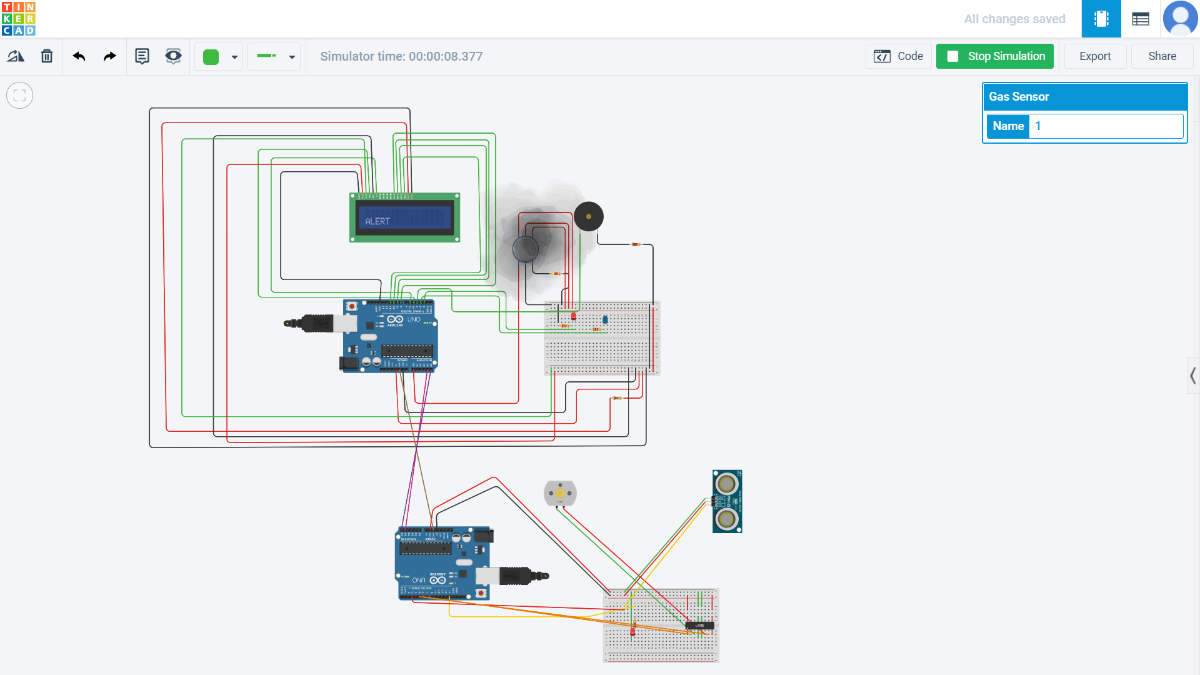

3rd step (alert)

4.

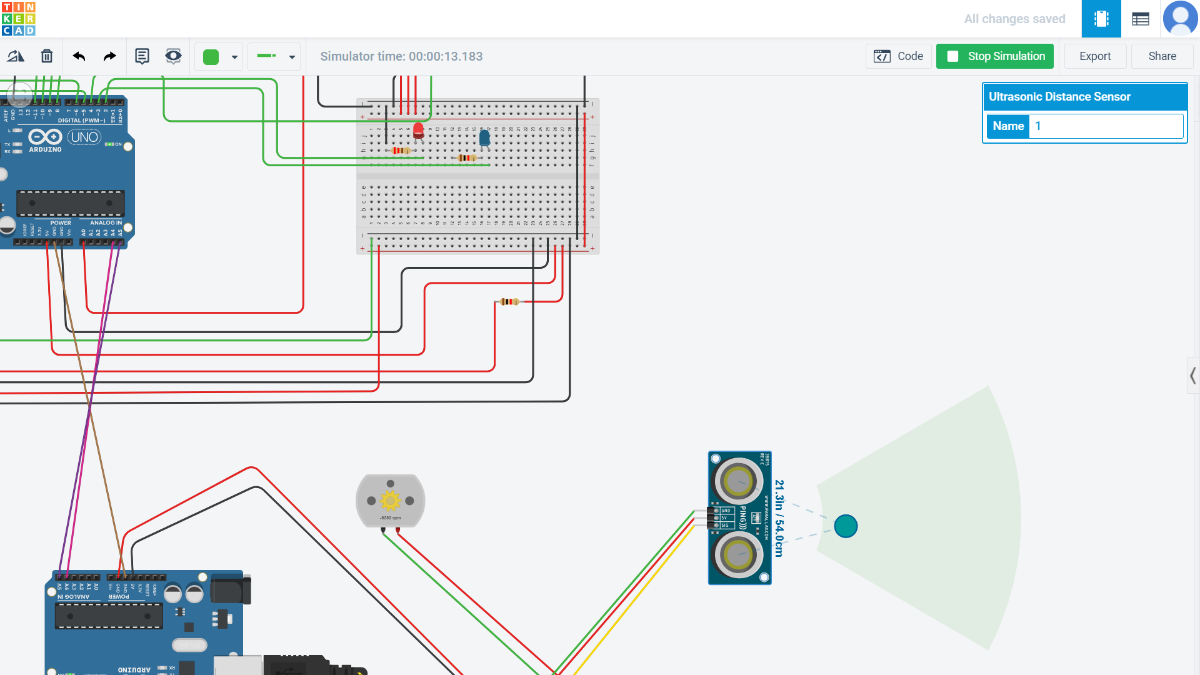

4th step (person in range and DC motor starts)

5.

5th step (safe)



DESIGN:-



          Give the connections as per the circuit diagram and enter the code in 2 Arduino using Arduino ide software.

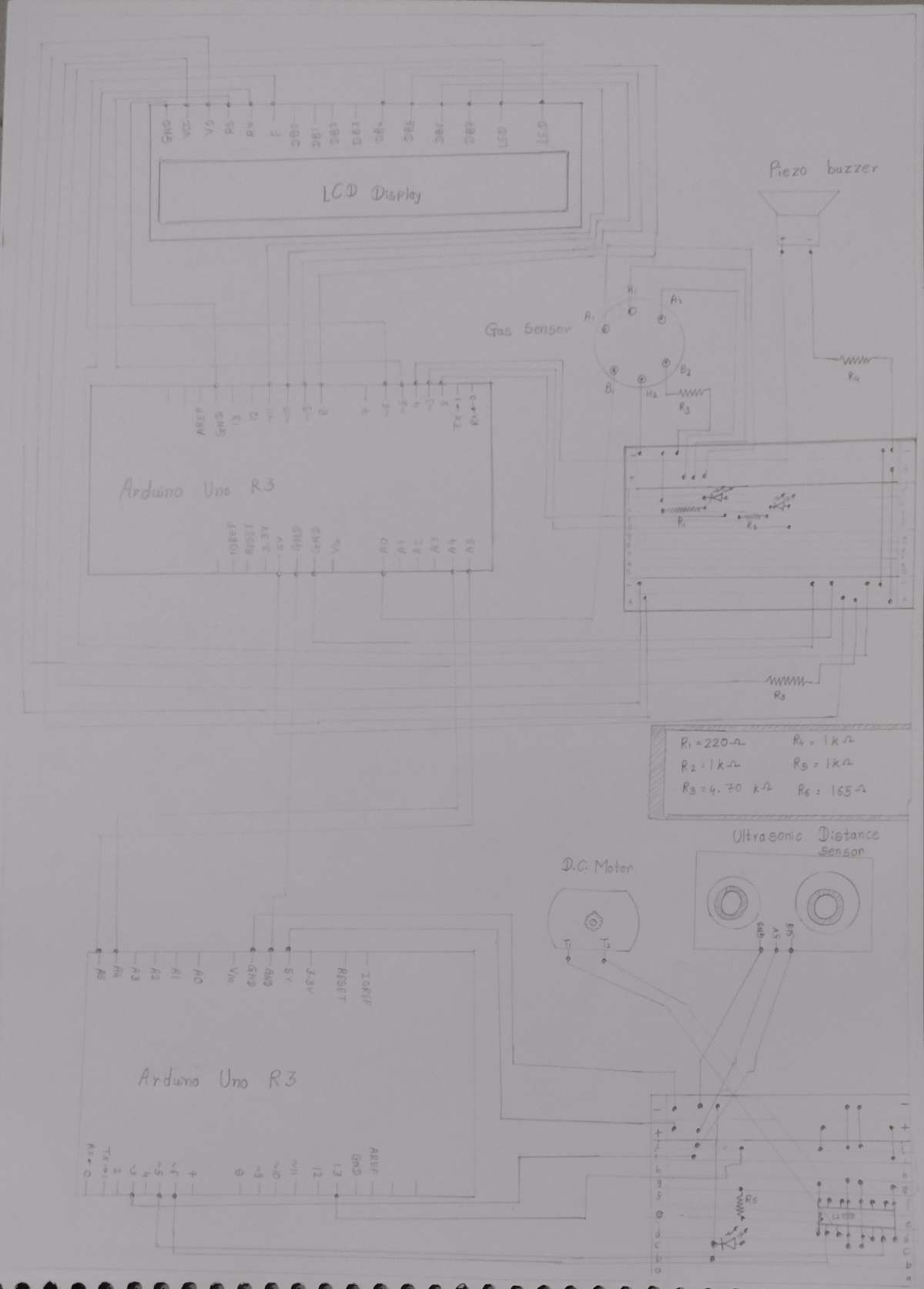

Circuit diagram



Working model video link:-



https://photos.app.goo.gl/cWm4bMW2ocUqCSbj6
