ELECTRONIC MOSQUITO REPELLENT CIRCUIT USING TINKER CAD

Published Aug 29, 2021
 Apache-2.0
 5 hours to build
 Beginner
arduino

Various mosquito repellent solutions like coils, liquid vaporizers, and creams, all have possible adverse effects on health. Then there are electronic mosquito repellents available in the market which are equally efficient and relatively safer.

display image

Components Used
Breadboard Half Size
Breadboard Half Size 		X 1
555 Timer
555 Timer 		X 1
Buzzer 5V
Buzzer 5V 		X 1
Resistor 100 kOhms
Metal Film Resistors - Through Hole 100K ohm 1/4W 1% 		X 2
AA Battery
AA Battery 		X 1
Capacitor 560 pF
Multilayer Ceramic Capacitors MLCC - Leaded 250V 560pF C0G 5% 		X 1
Speaker
Speakers & Transducers 28 mm, Round Frame, 0.25 W, 32 Ohm, Neodymium Magnet, PET Cone, Speaker 		X 1
Slide SPST Switch
Slide SPST Switch 		X 1
Resistor 1.5 kOhms
Metal Film Resistors - Through Hole 		X 1
Capacitor 2 nF
 X 1
2SC9013 Transistor
 X 1
Description

This project uses the sound of mosquito repellents is the safest way for health. Because we generate a high-frequency sound wave that mosquitoes do not like.According to the theory of scientists found that Mosquitoes do not like the high frequency waves. So, it flies away because this sound interferes with its flying.

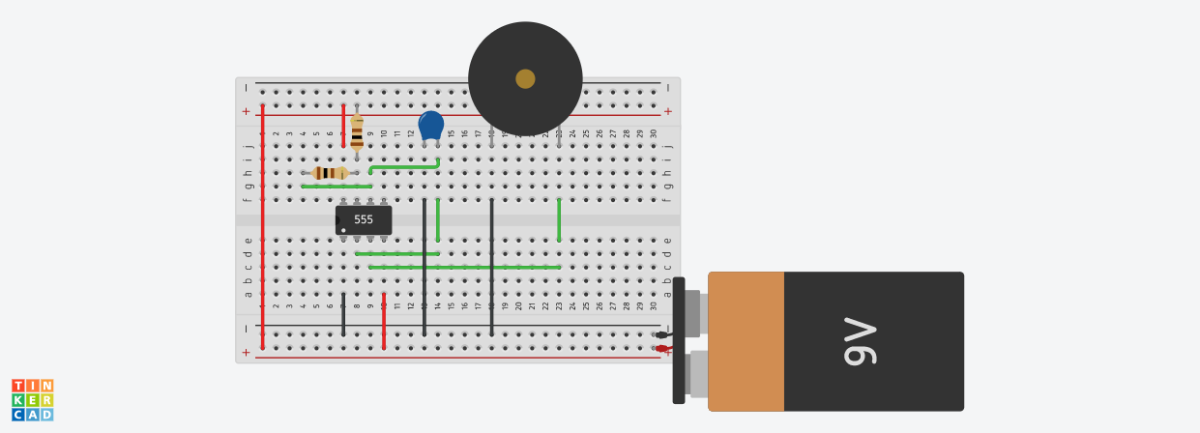

we have designed a circuit using 555 timer IC in Astable mode to produce 40 kHz frequency sound. We have connected Buzzer at the output (PIN 3) of the 555 timer IC so that a sound of desired frequency can be generated. We should note here that we need a HIGH-frequency Piezo buzzer so that a high-frequency sound can be generated. Also note that we might not be able to hear the sound, generated by the circuit as it is beyond our audible range.



https://www.tinkercad.com/things/7rPRsMSoZxc-copy-of-mosquito-repellent-using-555-timer/editel?sharecode=Ctz4q8_hviXIloGsEgJRPjUqpT5mRWQn3vFBe1aIyD8



Downloads
Copy of Mosquito Repellent using 555 Timer Download
Click the below link for simulation Download
