Chat bot which replies to our queries
Components Used |
||
|---|---|---|
| Toggle Switches Toggle Switches 20A 12VDC, On-Off, SPST, Red LED |
X 16 | |
| Red LED 5mm Standard LEDs - Through Hole Red Round |
X 16 | |
| SIEMENS S7 1200 |
X 1 | |
| SIMATIC HMI |
X 1 | |
Chat bot is build using siemens s7 1200 plc and HMI (Human Machine Interface). The programming and simulation for PLC is done using TIA V16 portal. The interface of chat bot is done using HMI display and it is also used to interact with the interface. HMI can be interacted by touch screen display.

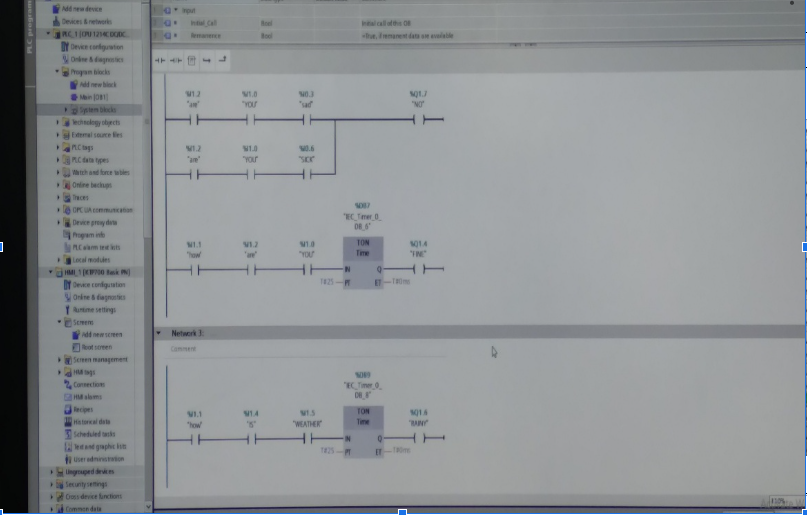

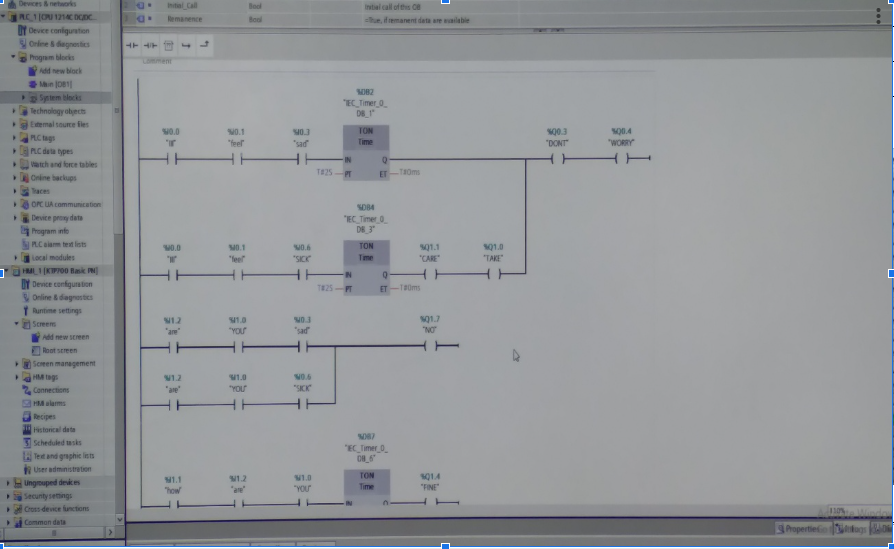

We have shared a few photos of PLC coding.
