An Arduino nano R3(processor) which connects all the components and output will be seen in our mobile.A MLX90614 infrared temperature sensor which detects the temperature of the water.An Ultrasonic HC-SR04(sensor) which indicate the water level in the water bottle.An  Alarm which alerts thd person to drink water at a periodic intervals and it also alert with the help of an alarm to indicate the finishing of water in the bottle.An Espressif ESP8266 ESP-01 is a wifi module which tends to reminds the person to drink water at a particular interval.The interval can be taken by the person is about 1-6 hours and transfer the messages/informations to the mobile at every moment.

HOW WE BUILD THE PROJECT:

1. This is very  useful to the peoples as well as patients(sharp witted aqua flagon).

2. In the busy schedule world, its very much useful to the peoples present  remind to have water.

3. It is not environment hazards.

and definitely useful in the society.

4. Its eco friendly its does not harm the  environmental atmospheric.

5. Its very much useful to society, which motivate to drink water.

6. To built a project we use a components sucha as MLX90614 infrared temperature sensor,buzzer,Arduino uno,ultrasonic HC-SR04 and Espressif ESP8266 ESP-01.

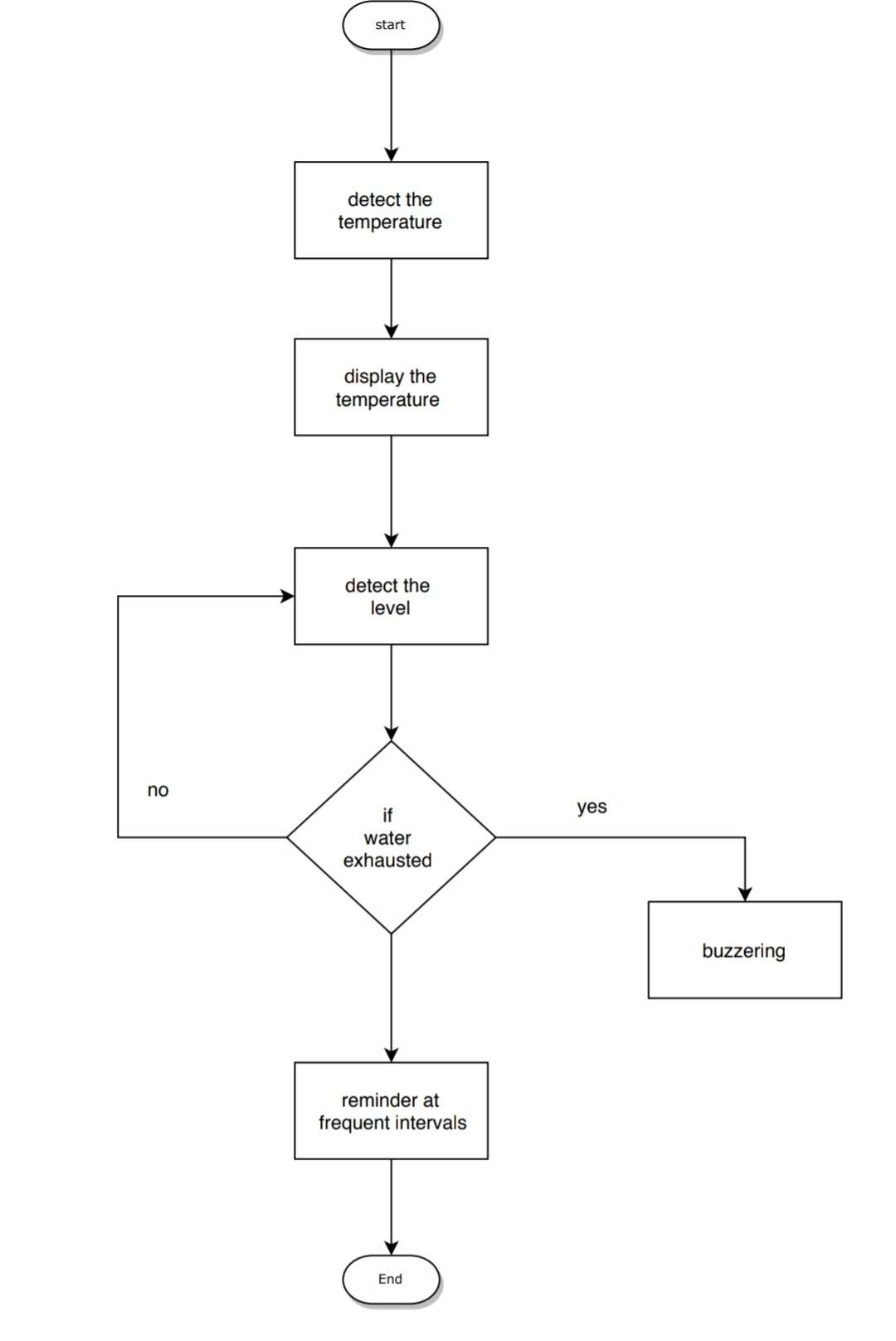

PROCEDURE OF THE PROJECT:

1.MLX90614 infrared temperature sensor to detect the water temperature and indicate the water level.

 2.ESpressif ESP8266 ESP-01 is a wifi module  to remind the person to drink water.

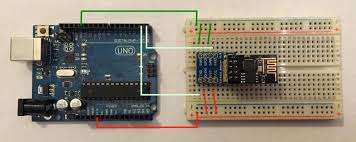

3. The Arduino uno connects all the components to wifi module ,to transfer the data to the mobile.

4.Buzzer is used to alert the person to drink water.

5.Ultrasonic HC- SR04 to measure the water in the bottle.

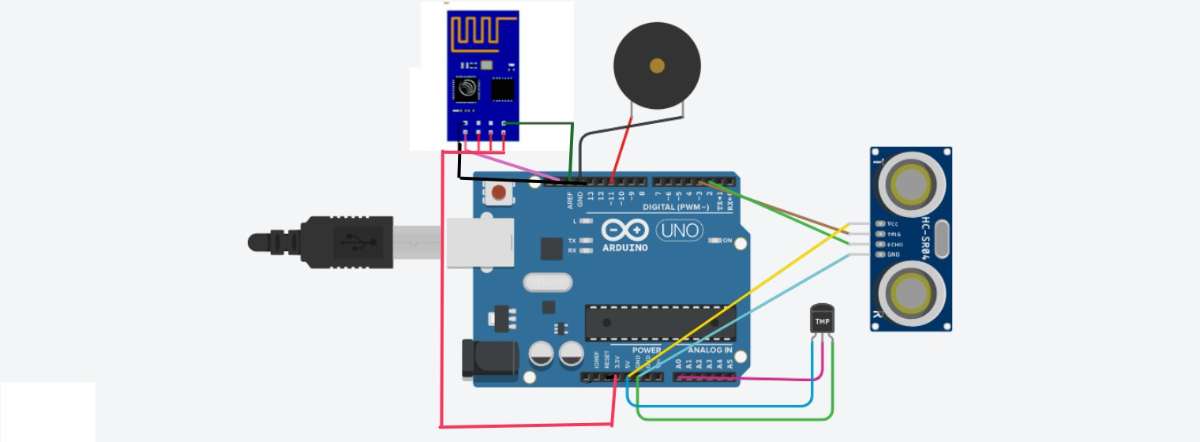

6. Sensor and buzzer are connects in the arduino uno board.

7.The program goes to the arduino uno from the pc through the connector.

 8.To load the program ,we use the cable and connector.

The Arduino uno and Ultrasonic sensor HC-SRO4 plays a major role in this experiment.It holds almost 75% of the project.This project is very helpful for the most of the patients where they undergo for surgery.Water is very much needed in human's life so,this project will remind you at every instant for your purpose of drinking water.Suppose if the patient/person is taking rest alone at their home.It helps to remind that patient/person to drink water by a message to their mobile at very first 1 minutes.If the message was not seen by the patient/person for the first 1 minute.The buzzer will start buzzering from the bottle to drink water atleat 2 minutes.If the amount of water inside the bottle is drawn to a little,the buzzering sound will be stopped.The amount of water must be kept inside the bottle as per the bottle size(eg. 1 - 2 litres).If the water is over flowing when fetching,it starts buzzering.And also it will be buzzering when the bottle is kept empty for around 5-7 minutes.If a patient drank a little amount(200 ml) of water from the 1 litre bottle.It shows the remaining amount of water inside the bottle at every moment.And sends the message to the mobile that the patient drank 200ml of water,remaining amount of water is 0.8 litre in that bottle.This project is especially made for patients,because they need much of water at every instant.From this alarm,they can easily drank water.Time required for the completion of this project is about 16-17 hours.Peoples can easily carry this water bottle with them.The temperature is also been recorded along with the level,and sends to the mobile via wifi module(Espressif ESP8266 ESP-01).It is more safest and also compatible to carry with anyone.Thus,the bottle delivers hight attention for the drinking purpose to the peoples and as well as patients.

3D DESIGN:TENT:

RESULT:

To implemented this project society,normal persons as well as patients motivation to drink water.

Its very useful,its helpful to many peoples and easy to carry.
