Smart Light Automation

Published Dec 01, 2025
 4 hours to build
 Beginner

Smart Light Automation uses sensors, mobile apps, and Wi-Fi/MQTT/Firebase to automatically control lights based on room occupancy, time, or user commands. It improves energy efficiency, provides remote control, and offers real-time status monitoring for homes, hotels, and offices

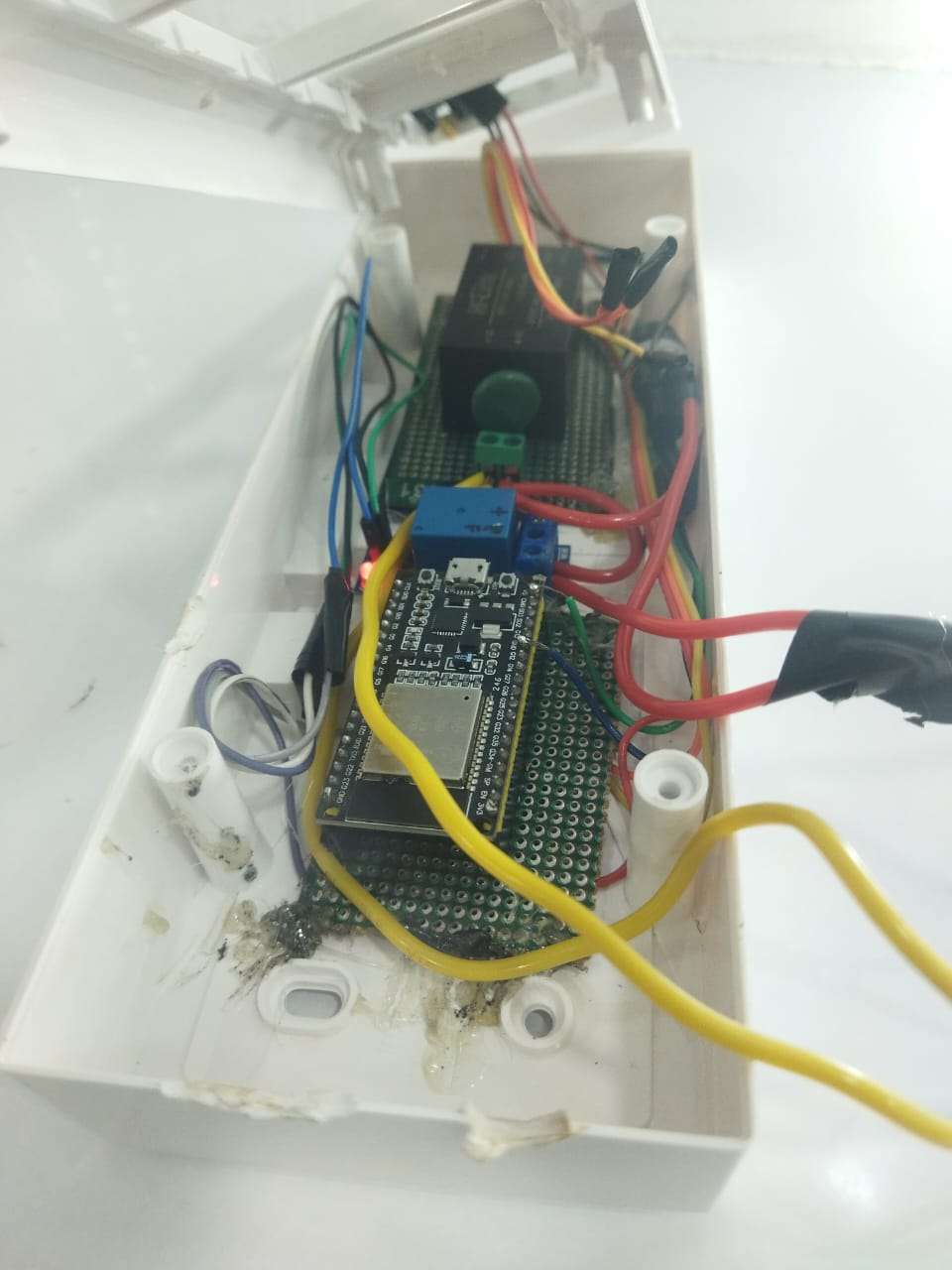

display image

Description

https://www.digikey.in/en/mylists/list/L688AK0W5O

Smart Light Automation — ESP32 + Relay + Bulb Controlled by Flutter App (Firebase)

Short: A complete step-by-step guide to build a smart light controller using an ESP32 that controls a relay (and a light bulb) and is controlled by a Flutter mobile app using Firebase Realtime Database.

Table of contents

  1. Prerequisites
  2. Hardware components
  3. Safety notes (must read)
  4. System architecture
  5. Firebase setup (Realtime Database)
  6. ESP32 firmware (Arduino IDE) — subscribe & command listener
  7. Wiring diagram & notes
  8. Flutter app (UI + Firebase integration)
  9. Testing & deployment
  10. Optional improvements & troubleshooting

1. Prerequisites

  • Basic knowledge of Arduino/ESP32 and Flutter/Dart.
  • Arduino IDE (or PlatformIO) installed and ESP32 board support added.
  • Flutter SDK installed and Android/iOS setup working.
  • A Firebase account.
  • A safe way to work with mains electricity, or use a low-voltage lamp/LED for testing.

2. Hardware components

  • ESP32 development board (e.g., ESP32-WROOM-32)
  • Single-channel relay module (suitable for mains) or SSR if switching AC loads
  • Light bulb + bulb holder (for mains) or a low-voltage test lamp/LED (for bench testing)
  • Jumper wires, breadboard (for low-voltage test)
  • 5V power supply for relay (if relay needs 5V); ESP32 powered by USB / 5V
  • Optional: flyback diode / opto-isolated relay module

3. Safety notes (must read)

  • If you are switching mains (AC) you must have basic electrical safety knowledge. Mains wiring can kill.
  • If unsure, use a low-voltage lamp or hire a licensed electrician to wire the relay to the mains side.
  • Use an opto-isolated relay module or SSR for improved safety and reduced noise.
  • Always disconnect power before wiring.

4. System architecture

  • Flutter app (mobile) writes a value true/false to Firebase Realtime Database at path /lights/room1
  • ESP32 uses the Firebase client library to subscribe/listen to that DB path changes
  • When the DB value changes, ESP32 toggles a GPIO that drives the relay module
  • The relay switches the light ON/OFF

Database example:

/lights
  /room1: true

5. Firebase setup (Realtime Database)

  1. Go to [Firebase Console] and create a new project.
  2. In the project, add Android / iOS app later (for Flutter you'll configure google-services files).
  3. In the left menu choose Realtime Database → Create database → Start in test mode (you can tighten rules later).
  4. Note your project's databaseURL (found in Realtime Database panel) — you'll use it in ESP32 and Flutter.
  5. For Flutter app: follow FlutterFire docs to add google-services.json (Android) and GoogleService-Info.plist (iOS), and configure firebase_core and firebase_database packages.

Simple Realtime DB rules for testing (open):

{
  "rules": {
    ".read": true,
    ".write": true
  }
}

(Change to secure rules before production.)

6. ESP32 firmware (Arduino IDE)

Libraries to install

  • Firebase ESP32 Client by Mobizt (use Library Manager or GitHub)
  • ArduinoJson (usually required)

Example code (Arduino)

#include <WiFi.h>
#include <Firebase_ESP_Client.h>

// Provide the token and URL from your Firebase project
#define WIFI_SSID "YOUR_WIFI_SSID"
#define WIFI_PASS "YOUR_WIFI_PASSWORD"

// Firebase project settings
String databaseURL = "https://your-project-id-default-rtdb.firebaseio.com/"; // include trailing /

// Replace these if using user authentication; for test DB you can use an empty auth
FirebaseData fbdo;
FirebaseAuth auth;
FirebaseConfig config;

const int RELAY_PIN = 18; // choose a free GPIO

void setup() {
  Serial.begin(115200);
  pinMode(RELAY_PIN, OUTPUT);
  digitalWrite(RELAY_PIN, HIGH); // set relay to OFF depending on module (active LOW common)

  WiFi.begin(WIFI_SSID, WIFI_PASS);
  Serial.print("Connecting to Wi-Fi");
  while (WiFi.status() != WL_CONNECTED) {
    delay(300);
    Serial.print('.');
  }
  Serial.println("\nWiFi connected");

  config.database_url = databaseURL.c_str();
  // No auth for test mode
  Firebase.begin(&config, &auth);

  // Subscribe to a path
  if (Firebase.RTDB.subscribe(&fbdo, "/lights/room1")) {
    Serial.println("Subscribed to /lights/room1");
  } else {
    Serial.println("Failed to subscribe");
  }
}

void loop() {
  // Check for realtime events
  if (Firebase.RTDB.readEvent(&fbdo)) {
    // event type can be put, patch, delete
    if (fbdo.event_type == "put" || fbdo.event_type == "patch") {
      String path = fbdo.dataPath();
      String val = fbdo.to<String>();
      Serial.println("Event: " + fbdo.event_type + " Path: " + path + " Value: " + val);

      // Convert value and set relay
      if (val == "true" || val == "1") {
        digitalWrite(RELAY_PIN, LOW); // depends on relay module (LOW may be ON)
      } else {
        digitalWrite(RELAY_PIN, HIGH); // OFF
      }
    }
  }
  delay(10);
}

Notes:

  • Adjust RELAY_PIN to the pin you wired.
  • Many relay modules are active LOW (drive pin LOW to close relay). Reverse logic if needed.
  • Keep databaseURL accurate; include trailing slash as library expects.

7. Wiring diagram & notes

Low-voltage bench test (safe):

  • ESP32 GND -> Relay module GND
  • ESP32 5V (or VIN 5V) -> Relay VCC (only if module supports 5V logic; if module supports 3.3V you can use 3.3V)
  • ESP32 GPIO18 -> Relay IN
  • Relay common (COM) -> Lamp live (or to your low-voltage lamp)
  • Relay normally open (NO) -> Lamp live out
  • Neutral -> Lamp neutral

Important mains wiring note:

  • When switching AC mains: route the live (hot) wire through COM and NO of the relay. Never touch live wires while power is connected.
  • Use insulated terminals and mount relay in an enclosure rated for mains.

8. Flutter app (UI + Firebase integration)

Packages (pubspec.yaml)

dependencies:
  flutter:
    sdk: flutter
  firebase_core: ^2.0.0
  firebase_database: ^10.0.0

Minimal app (main.dart)

import 'package:flutter/material.dart';
import 'package:firebase_core/firebase_core.dart';
import 'package:firebase_database/firebase_database.dart';

void main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await Firebase.initializeApp();
  runApp(MyApp());
}

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) => MaterialApp(home: LightControlPage());
}

class LightControlPage extends StatefulWidget {
  @override
  _LightControlPageState createState() => _LightControlPageState();
}

class _LightControlPageState extends State<LightControlPage> {
  final dbRef = FirebaseDatabase.instance.ref('lights/room1');
  bool isOn = false;

  @override
  void initState() {
    super.initState();
    dbRef.onValue.listen((event) {
      final val = event.snapshot.value;
      setState(() => isOn = (val == true || val == 'true'));
    });
  }

  void toggleLight() {
    dbRef.set(!isOn);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: Text('Smart Light')),
      body: Center(
        child: Column(mainAxisSize: MainAxisSize.min, children: [
          Icon(isOn ? Icons.lightbulb : Icons.lightbulb_outline, size: 100),
          SizedBox(height: 20),
          ElevatedButton(onPressed: toggleLight, child: Text(isOn ? 'Turn Off' : 'Turn On')),
        ]),
      ),
    );
  }
}

Notes:

  • Configure google-services.json / GoogleService-Info.plist per FlutterFire setup.
  • For production, add Authentication and secure DB rules.

9. Testing & deployment

  1. Start with a low-voltage lamp or LED to verify wiring and logic.
  2. Upload ESP32 code and open Serial Monitor — confirm Wi-Fi connection and subscription to /lights/room1.
  3. Run the Flutter app (emulator or device). When you press the toggle, the DB value should change and the ESP32 Serial should report an event and toggle the relay.
  4. If relay doesn't change, check relay logic (active LOW vs HIGH) and wiring.

10. Optional improvements & troubleshooting

  • Add a secondary DB path for status where ESP32 writes online:true so app can show device online/offline.
  • Use Firebase Authentication to secure access.
  • Add MQTT broker (e.g., Mosquitto) if you prefer MQTT instead of Firebase.
  • Use OTA updates for remote firmware upgrades.
  • If ESP loses connection, implement reconnect logic and write a last_seen timestamp to DB.

If you'd like, I can also:

  • Provide a ready-made schematic image (low-voltage) you can print.
  • Give a production-ready wiring diagram for mains (but remember to involve an electrician).
  • Convert the ESP32 code to work using direct HTTP REST calls instead of the Firebase client library.
