IOT based Robotic car

Published Dec 13, 2021
 Apache-2.0
 96 hours to build
 Intermediate
arduino-esp8266
nodemcu

IOT is the future of the world. So, on this platform I want to give my small contribution by introducing my IOT based Robotic car. It is car which can help the community to lead a better life.

display image

Components Used
Arduino Mega
Arduino Mega 		X 1
ESP8266 WiFi Module
ESP8266 is a system on chip (SoC) which provides WIFI capability for embedded applications. This enables internet connectivity to embedded applications. ESP8266 modules are mostly used in Internet of Things(IoT) applications. 		X 1
nRF2401A 2_4GHz Transceiver
nRF2401A is a single chip RF transceiver for 2.4GHz ISM band. 		X 2
Ultrasonic Module HC-SR04
Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm. 		X 1
AK9753 IR sensor
AK9753 is a low power and compact IR (infrared) sensor module. 		X 2
L298N Motor driver
L298N is a high current, high voltage dual full bridge motor driver. It is useful for driving inductive loads. 		X 1
9V Battery
Consumer Battery & Photo Battery 9V RECTANGLE 		X 1
DC Gearbox Motor
Adafruit Accessories DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC 		X 4
9g Servo Motor
DFRobot Accessories 9g micro servo (1.6kg) 		X 1
Description

Video

Implementation and demo of IoT Based robotic car.

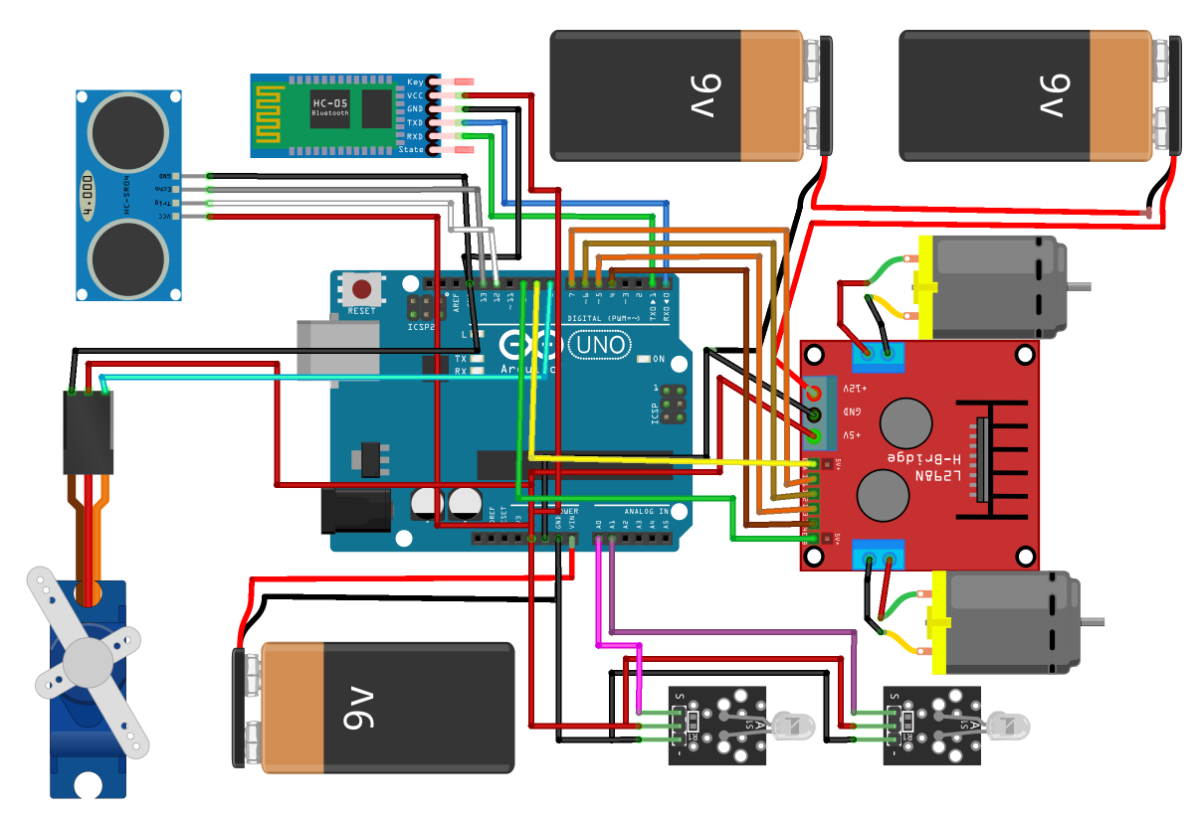

Circuit connection

Codes

Downloads
All-in One Robo Car Circiut Diagram Download
