Collect_sensor_data and control_from _Telegram

Published Aug 31, 2021
 3 hours to build
 Intermediate

In this project, Arduino is used to collecting the sensor's information and forward to the BOLT IOT device and simultaneously upload data to my database using one python script, and another python script is used to start telegram BOT and fetch data from my database & also control server.

display image

Components Used

Arduino UNO
Arduino UNO
1
Breadboard
Breadboard
1
Ultrasonic Module HC-SR04
Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm.
1
Male to Male Jumper Wire
Jumper Wires Mach pin jumper wires
7
Bolt IoT WiFi module
This device is used for interface sensor's data with cloud and bolt app
1
White LED
1
Description

Introduction

In this project, I focus on certain things i.e receiving data from the ultrasonic sensor and calculate the actual distance from the device to the person and this data will ass through the Tx pin on Arduino to Rx pin of BOLT IOT device.When the data will receive from Arduino,one python script will run some logic i.e if the distance is lower the the range then LED will glow (as an indicator) and if the distance is higher than the range then LED will turn off and side by side.

LED status (0 or 1) and the statement "less than 20cm" or "greater than 20 cm" and connected device name will be inserted into the database.Later another python script will be run for retrieving data using shell interface or starting with the telegram.A telegram bot will receive data from the database and control the telegram operation of the sensor with command.

Telegram

Server handling

1. In my project, we need to enable the apache2 server from the terminal

The command is—

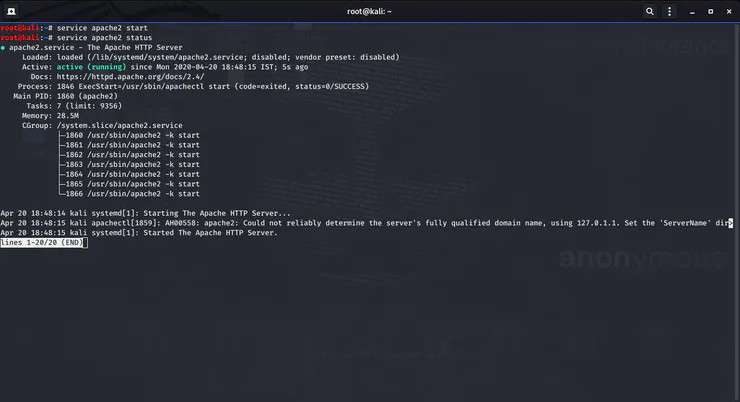

service apache2 start

To see server status –

service apache2 status



To start MySQL

Command is –

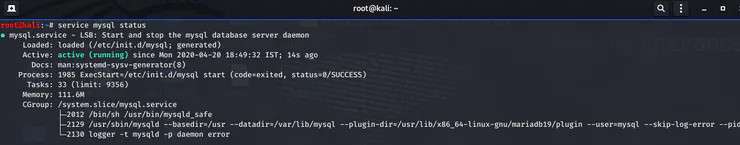

service mysql start

To know the status

Command is –

service mysql status



To stop MySQL

Command is –

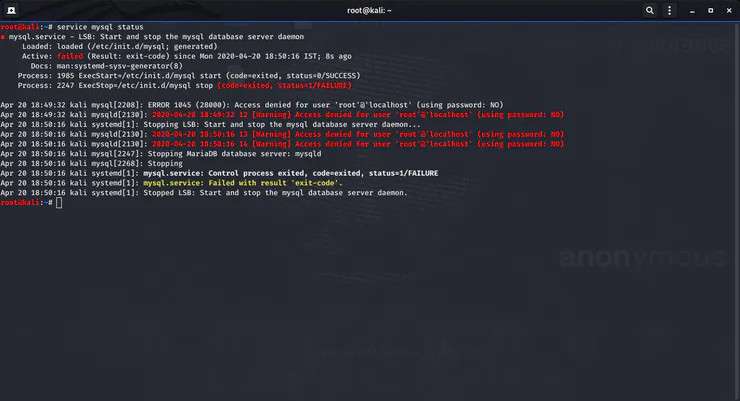

service mysql stop

To know the status

Command is –

service mysql status



To stop apache server

Command is –

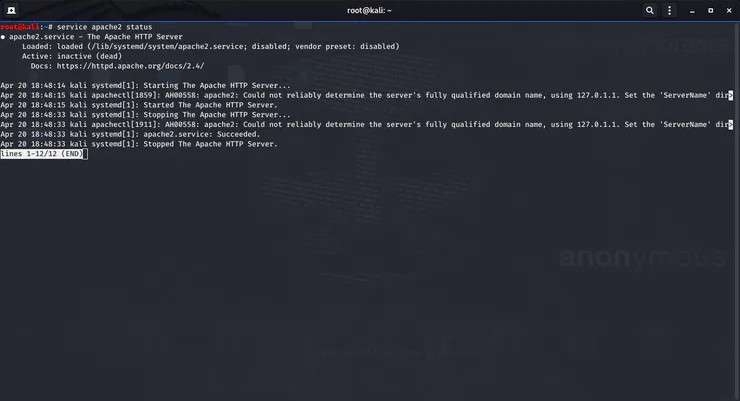

service apache2 stop

To know the status

Command is –

service apache2 status



Next step

Go to Google or Firefox browser and type in the address bar

localhost/phpmyadmin

and press Enter.

We will see this dashboard of phpmyadmin

Then I create a Database name ” sensor” and table name “analysis

Number of the columns – 3

Retrieving Data from sensor

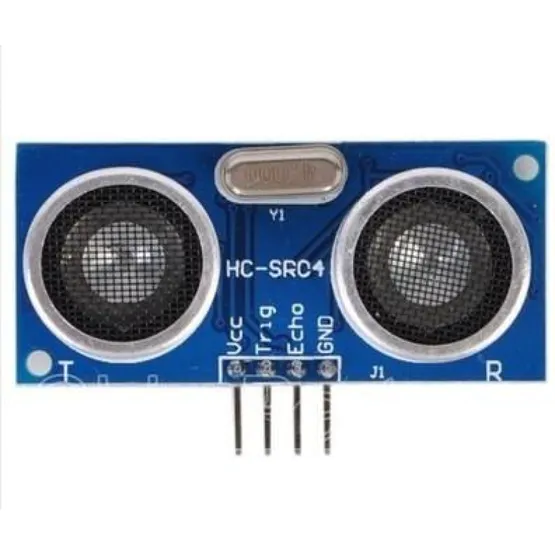

For distance calculation, we use the UltraSonic sensor. In this sensor, 4 pins are available(Vcc, TRIG, ECHO, GND). One is a transmitter and another is a receiver.

Receiving a signal from the ultrasonic sensor and some simple calculation converts it on a centimeter scale.

Calculation

Distance(cm)=duration * 0.0340 / 2

In the coding part

#include<BoltIoT-Arduino-Helper.h>#include <BoltDeviceCredentials.h>

Two header files are used

  • I download these two header files and paste it /Arduino/Libraries/boltiot-arduino-helper/ <My header files>.
  • · Edit BoltDeviceCredentials.h file and set my correct Bolt API and Device name.
  • Link for Boltiothelper.h and boltcredential.h go to src folder

In Arduino coding, we will see this part

boltiot.begin(Serial);

(It is used to initialize the Bolt interface over serial UART)

And lastly, we will connect the Tx pin of Bolt is connected to the Rx pin of Arduino Serial Port, and the Rx pin of Bolt is connected to the Tx pin of arArduinoduino Serial Port.

Trig pin of UltraSonic sensor is used to trigger the signal and the Echo pin is used to receiving the echo signal which is sent by Trigg pin.

· In python script we use

mybolt = Bolt(conf.bolt_api_key, conf.device_id)reponse=mybolt.serialRead(“1”)
  • In the second line of code “1” is the pin number for the Tx pin of Arduino and then retrieve the value using JSON and rstrip.
  • Most important all code for Arduino is connected and python script I use 5 sec of delay for both the code for sync and avoid crossing my API limit for debugging.
  • · LED is connected with the BOLT IOT device with pin number 0.

Send data to the database

In python script importing mysql.connector module is a must for any database related task and then we use

mydb=mysql.connector.connect(host="localhost",user="root",passwd="***",database="sensor")
  • If the distance is less than 20 cm
mySql_insert_query = """INSERT INTO analysis (Distance_at_cm, LED_status, Connected_device) VALUES ('Less than 20 cm','1','BOLT_IOT & ARDUINO') """
  • If the distance is greater than 20 cm
mySql_insert_query = """INSERT INTO analysis (Distance_at_cm, LED_status, Connected_device) VALUES ('greater than 20 cm','0','BOLT_IOT & ARDUINO') """
  • Finally commit.







Receive data from the database

In this project, I use two option

  • From terminal
  • From telegram

From Terminal, we use these options

For creating a database

For creating a table

For view table data

For drop database

For the show of, list of database

For drop table

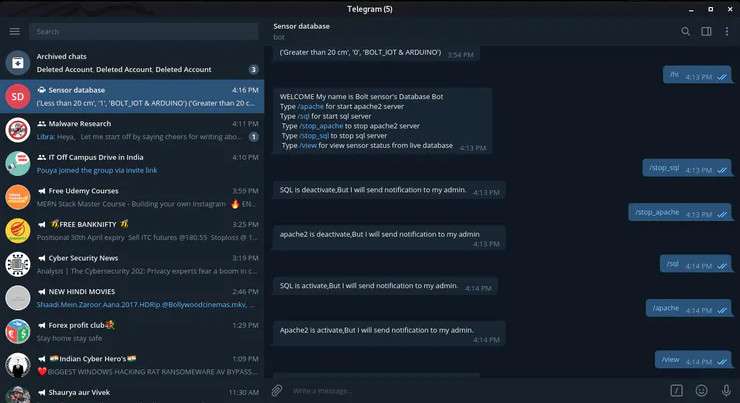

From telegram, we use my BOT Token and creating an interface from the following list

For start apache server

For start SQL server

For view my sensor’s table data

For deactivating apache server

For deactivating SQL server

Command receive from Telegram Bot

Following steps for activating Telegram Bot

  • Create an account in a telegram from the web or apps from Play Store.
  • Search “botfather”.
  • Type /newbot and hit enter
  • Choose a suitable name for BOT and ending with bot (e.g telebot, johnbot, harry_bot, etc)and hit enter.

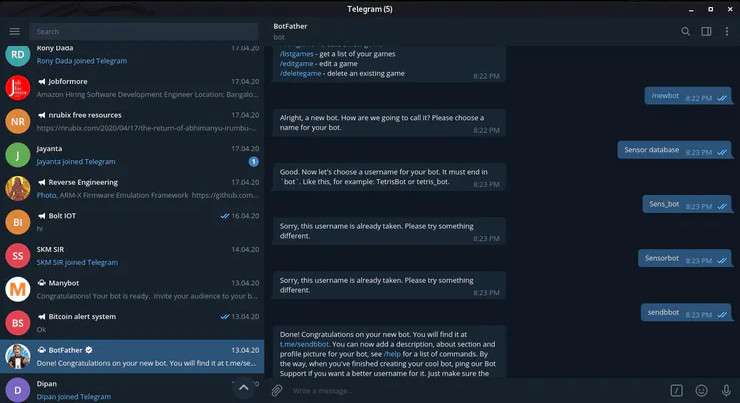

This picture shows that how to create a bot using botfather

Copy the secret token number which is used in python code for accessing bot in telegram.

Finally, in python code, there is some command handlers use for function against specific custom commands when the user types those command, the function which is the program for specific task will execute.
