Blind People Helper- A watch for blind

Published Aug 31, 2021
 2 hours to build
 Beginner

The Blind People Helper is a helpful watch for visually impaired people. It allows them to walk around easily.

display image

Components Used

Ultrasonic Module HC-SR04
Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm.
1
Arduino UNO
Arduino UNO
1
Wire
Hook-up Wire 788133 RED 100 FT
1
9V Battery
Consumer Battery & Photo Battery 9V RECTANGLE
1
Buzzer 5V
Buzzer 5V
1
Description

How to Build the Watch:

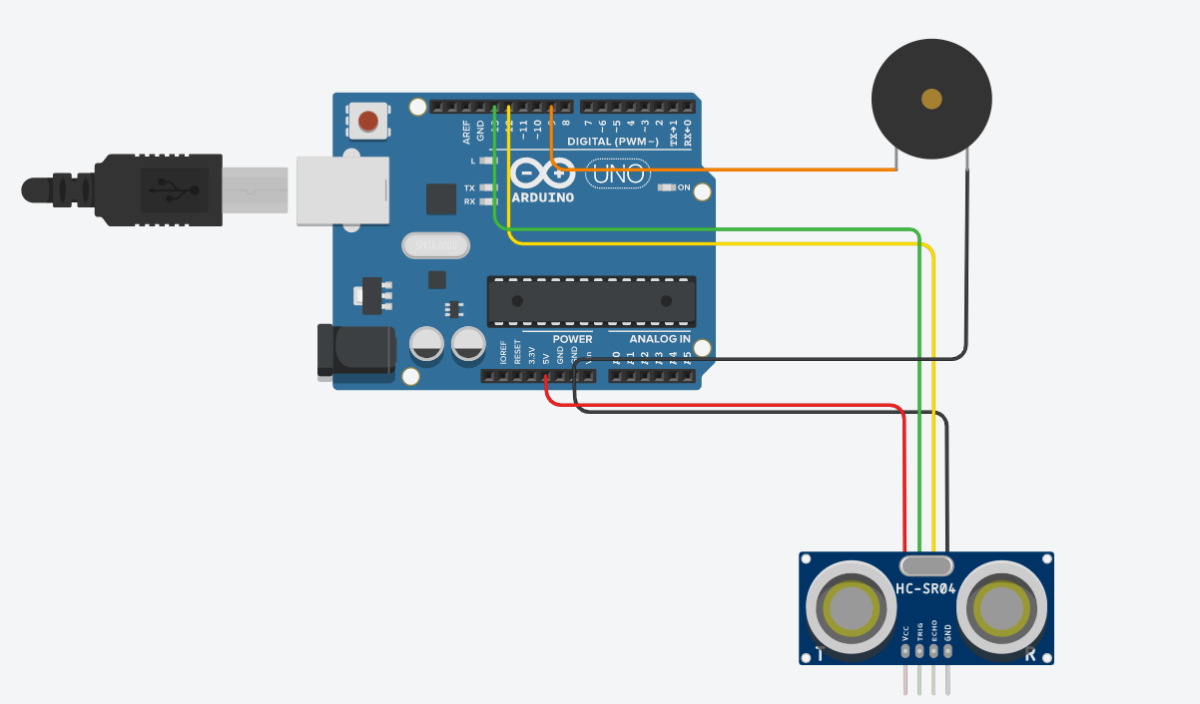

To begin building the watch, wire the ultrasonic sensor and the buzzer to the Arduino UNO according to the given schematic:

Finally, build a case for the electronics and attach it to the watch.

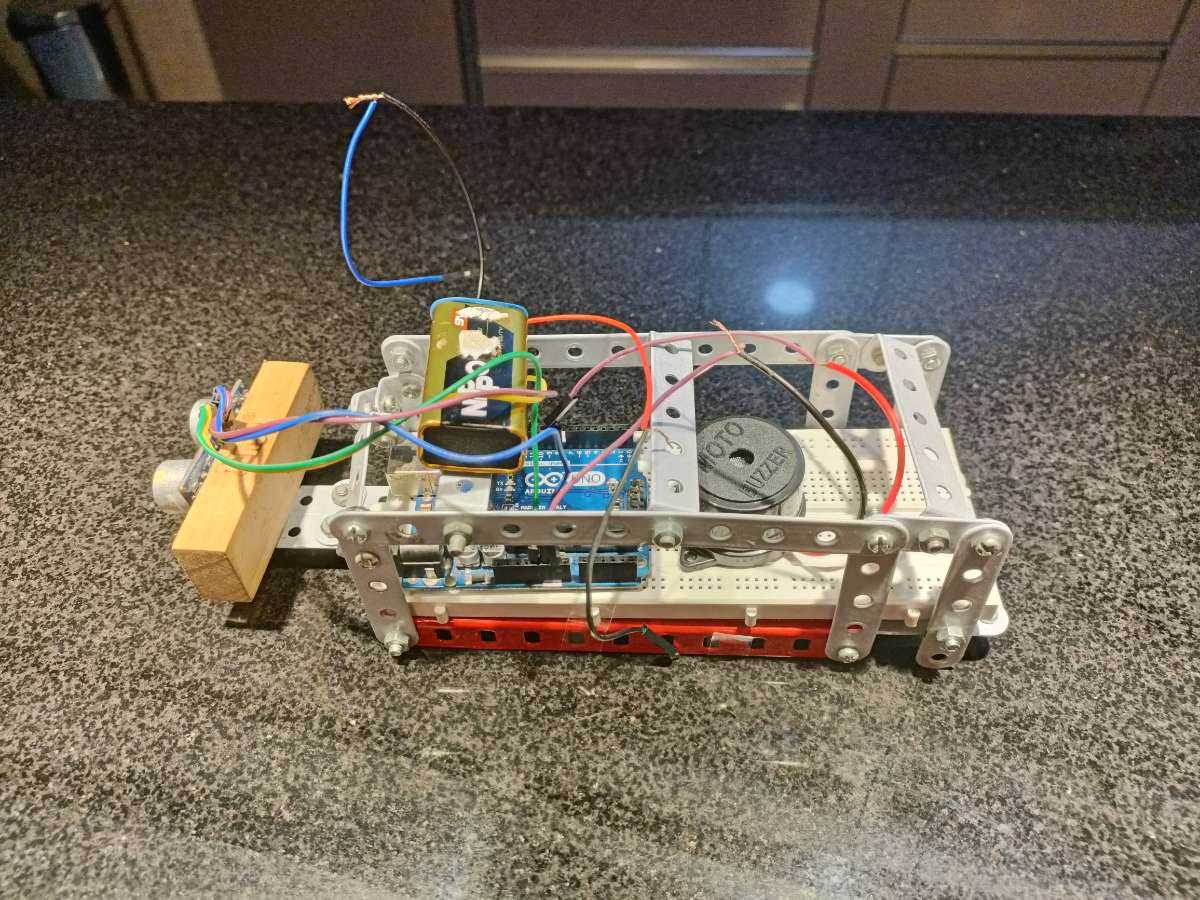

The Final Result

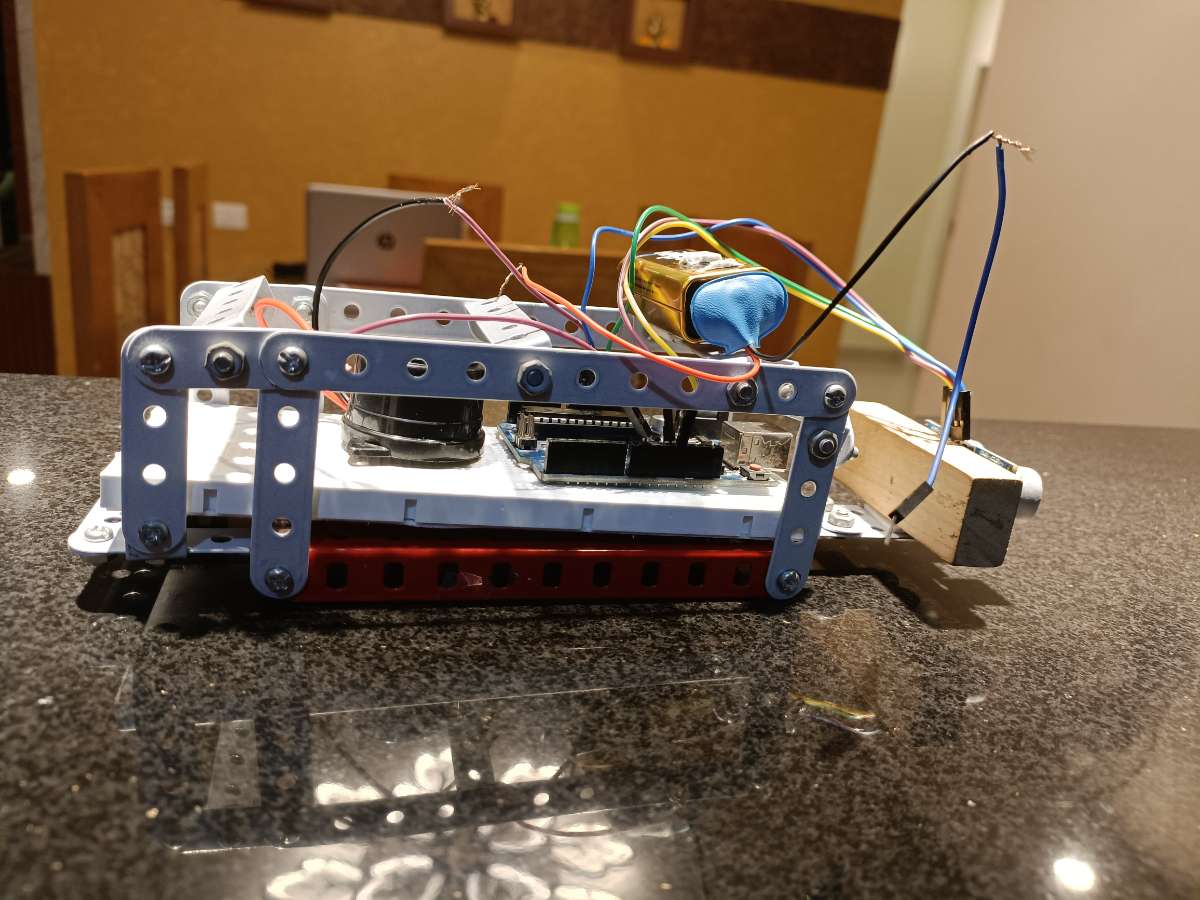

The Final Result

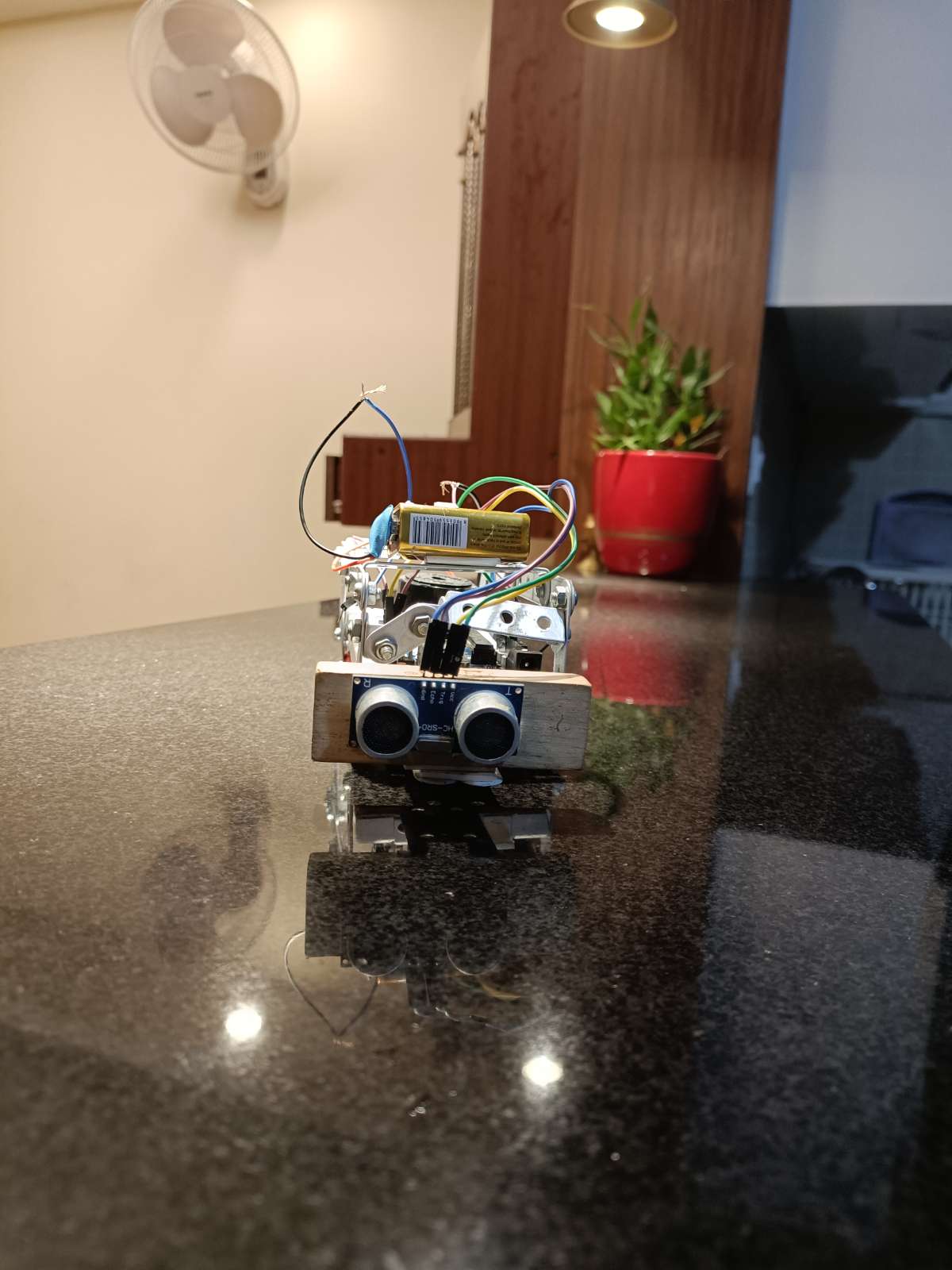

The Final Result

Code:

Declare that the Trigger pin is connected to pin number 13, Echo pin is connected to pin number 12 and buzzer is connected to pin number 9

int trigger_pin = 13;
int echo_pin = 12;
int buzzer_pin = 9;

In the Void Setup, begin the serial monitor and set up Trigger pin as output, echo pin as input and buzzer as output.

void setup () {
     Serial.begin (9600);
     pinMode (trigger_pin, OUTPUT);
     pinMode (echo_pin, INPUT);
     pinMode (buzzer_pin, OUTPUT);
}

Write a pulse to the HC-SR04's Trigger Pin:

digitalWrite (trigger_pin, HIGH);
delayMicroseconds (10);
digitalWrite (trigger_pin, LOW);

Measure the response from the HC-SR04 Echo Pin and determine distance.

time = pulseIn (echo_pin, HIGH);
distance = (time * 0.034) / 2;

If the object is lesser than 70 cm, print "object is near", ''Distance= " and the distance between the object and ultrasonic sensor in the serial monitor and set the buzzer to high.

if (distance <= 70)
{
Serial.println (" object is near ");
Serial.print (" Distance= ");
Serial.println (distance);
digitalWrite (buzzer_pin, HIGH);
delay (1000);
}

Else print "Distance= " and print the distance and set the buzzer to low.

else {
Serial.print (" Distance= ");
Serial.println (distance);
digitalWrite (buzzer_pin, LOW);
delay (1000);
}
}

Result:

Codes

Downloads

Blind People Helper- A watch for blind Download
