Finger-sensing door lock

Published Nov 16, 2021
 5 hours to build
 Beginner

This is basically a project based on fingerprint sensor which detects the fingerprint and unlock the door

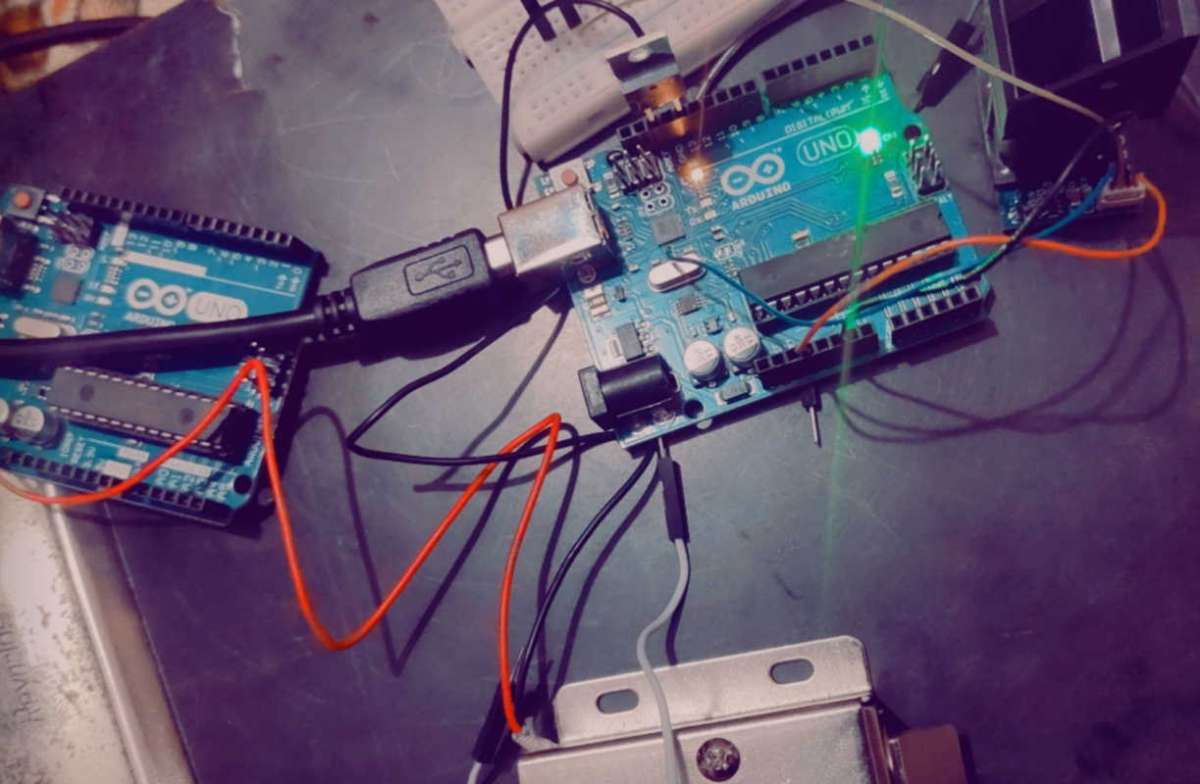

display image

Components Used

Arduino UNO
Arduino UNO
1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires
1
IRFZ44N MOSFET
MOSFET MOSFT 55V 49A 17.5mOhm 42nC
1
12VDC Adapters Power Supply
Wall Mount AC Adapters POWER SUPPLY 12VDC MEDIC GRADE US EU UK
1
Solenoid Lock
SparkFun Accessories Solenoid - 12V (Latch / Lock)
1
Fingerprint sensor r305
Finger scanning sensor
1
Description

This project needs 3 main components that are Arduino Uno, fingerprint sensor, solenoid lock.

The fingerprint sensor has 4 wires the red wire is to be connected to 5V supply in Arduino, black wire with a ground pin, yellow wire which is RX is to be connected to pin 2 and blue wire tx should be connected to pin 3

Now take the transistor and solder the middle leg of the transistor with a negative wire of solenoid lock, 1st and 3rd leg of the transistor should be connected to pin 12 and ground respectively.

The positive wire of the solenoid lock must be soldered at the adaptor port in Arduino Uno and the 12v adaptor is to connect to the port.

Upload the code and you are done

Codes

Downloads

IMG_20211112_153714858 Download
