Milk-Mail Indicator

Published Dec 12, 2020
 8 hours to build
 Beginner

TO automate post box by notifying with LED. When letter is in box LED will ON, if letter is taken out LED will off.

display image

Components Used

Arduino Nano
Arduino Nano
1
Breadboard
Breadboard
1
LDR -Photocell Photoresistor
LDR -Photocell, Photoresistor
1
LED 5mm
LED 5mm
2
Resistor 1 kOhms
Metal Film Resistors - Through Hole 1K ohm 1/4W 1%
2
Description

PROJECT OUTLINE:

Simple LDR circuit; use LDR and Arduino together to make milk mail indicator(aka LDR DRAK SENSOR).

WORKING:

  • A external light(LED1) that always fall on LDR when postmen/milkmen drops post or milk the light that falls on LDR gets disturbed.
  •  And signal is send to  Arduino board that process  data and make another output LED to glow.
  •  So that user/housemates gets notified to get letter/milk from Milk mail box

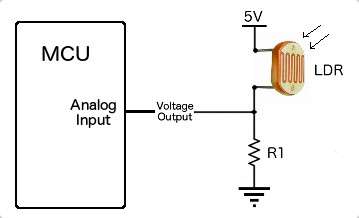

Working of LDR Darkness Sensor

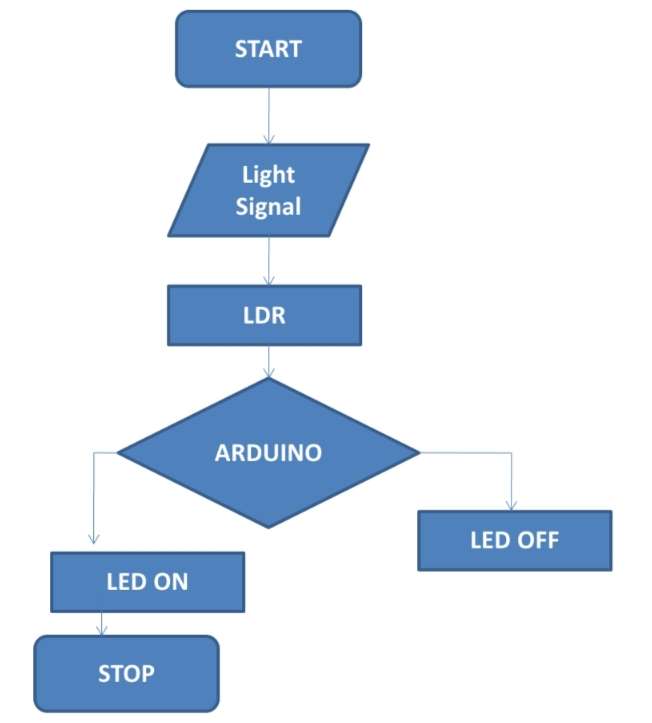

FLOWCHART:

Flow chart and simple representation of our project



Codes

Downloads

MM INDICATOR DESCRIPTION Download
Schematics for MM indicator Download

Institute / Organization

PSNA COLLEGE OF ENGINEERING AND TECHNOLOGY
